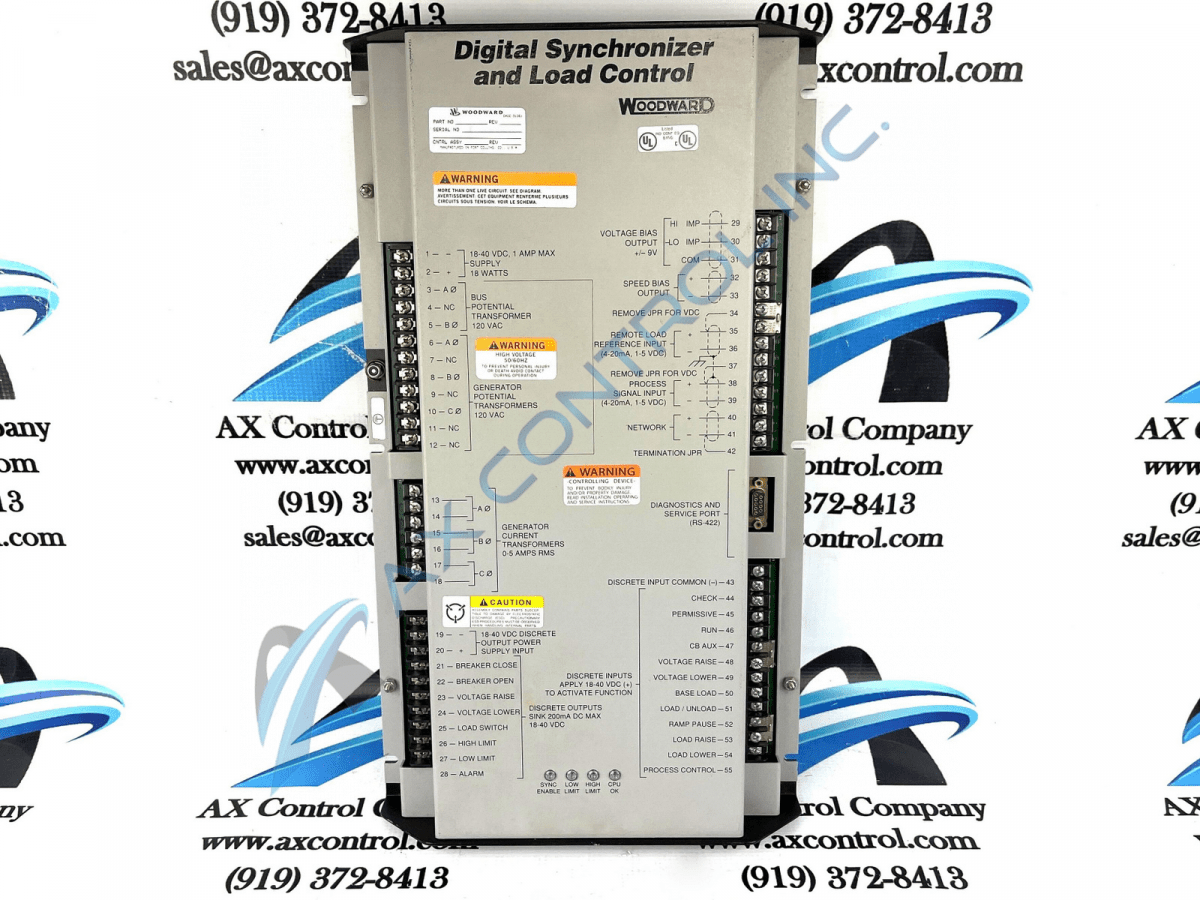

The Woodward 9905-603 DSLC Model for three-phase AC generators. Features 1 to 5 VDC speed bias output and Wye PT configuration. Replacement for 9905-712

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9905-603 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9905-603
  • SKU: 9905603WO
  • Manufacturer: Woodward
  • Series: DSLC Digital Synchronizer and Load Control

9905-603

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The Woodward 9905-603 DSLC Model for three-phase AC generators. Features 1 to 5 VDC speed bias output and Wye PT configuration. Replacement for 9905-712

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9905-603 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9905-603
  • SKU: 9905603WO
  • Manufacturer: Woodward
  • Series: DSLC Digital Synchronizer and Load Control

9905-603 Technical Specifications

Dimensions H461mm x W265mm x D59mm
Enclosure Type Sheet Metal
Humidity Standard 95% at 38 °C
Manufacturer Woodward
Model 9905-603
Operating Temperature -40 to 158 F
Storage Temperature -67 to 221 F
Weight Less than 7lbs before packaging

Product Description

The Woodward DSLC lineup of devices was manufactured by Woodward Inc. These units were designed as multi-functional control attachment modules for three-phase, AC generators. They are able to be installed into generators with similar control setups, not solely Woodward brand generators.

The 9905-603 module is designed as one of the several units with control capabilities for the generator’s processing, load sensing, and distribution, as well as the VAR/PF control. This unit is also able to provide closure to any dead bus systems.

This unit is able to control elements of the generator such as the RMS power and can provide the generator with bumpless loading and unloading capabilities. It is able to provide operators with the option for either base loading, or set power levels for exporting, importing, and processing. The 9905-603 unit is able to utilize the local operating network, in order to accurately share the generator’s loads with isolated, multi-engine systems.

The 9905-603 is outfitted with handheld programming, which is designed to reduce the installation and calibration time. This allows the users to set up their control unit prior to starting up the system. The handheld programming allows the operators to also monitor the generator’s parameters, contact switches, and analog inputs and outputs.

The standard operating temperature range goes from -40 to 70 C, or -40 to 158 F. While in storage, the unit can be placed at -55 to 105 C, or -67 to 221 F.

The 9905-603 unit is available from AX Control Inc. and is protected by our automatic warranty.

Reviews For 9905-603
Internal Review

The DSLC control provides a safe automatic dead-bus closure function. Deadbus closing permission is granted to only one DSLC control through locking techniques done over the communications network. - AX Control Technicians
