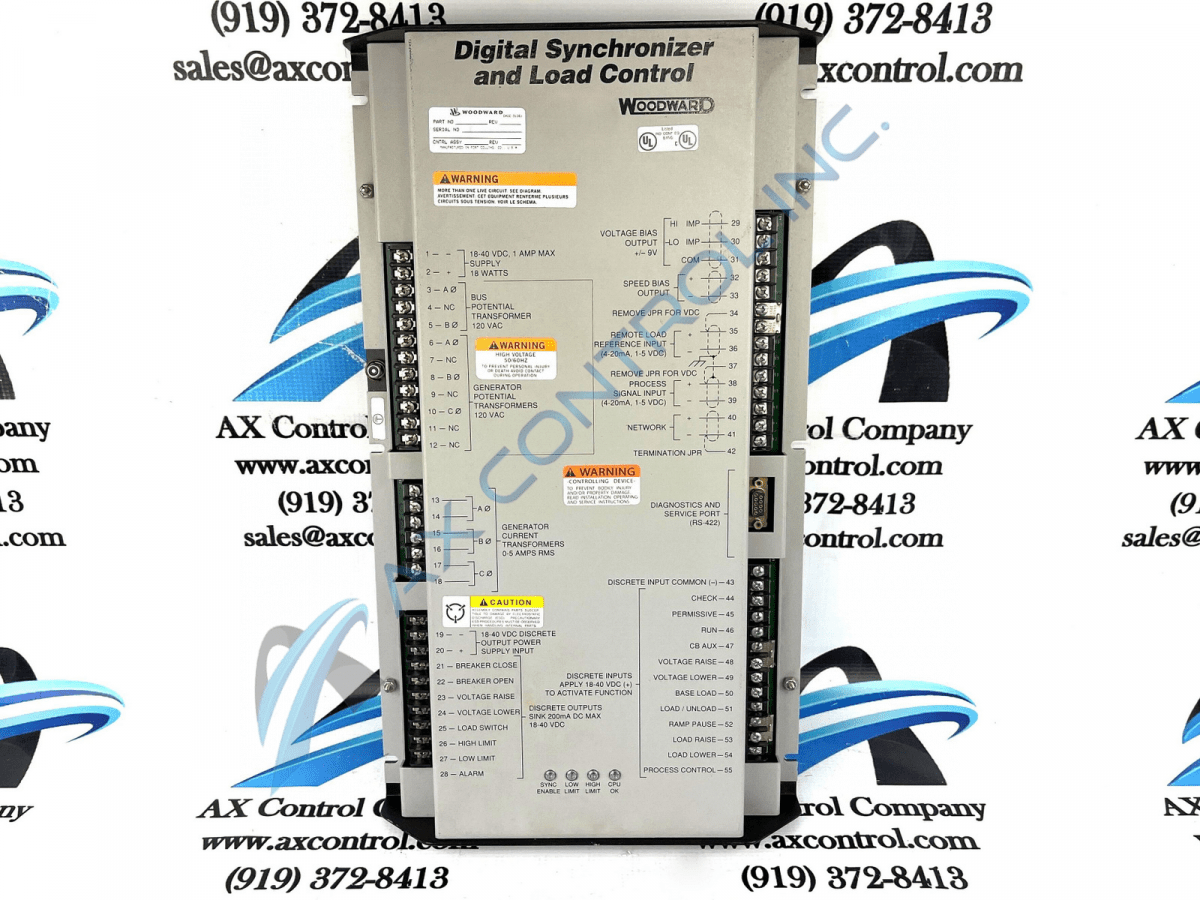

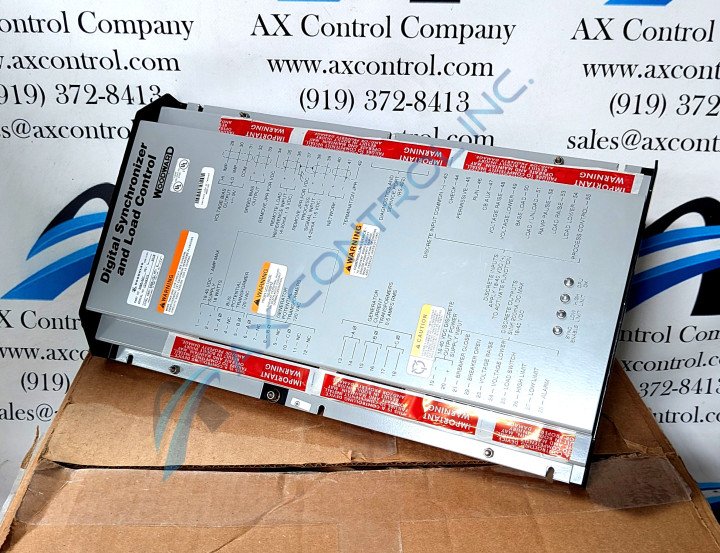

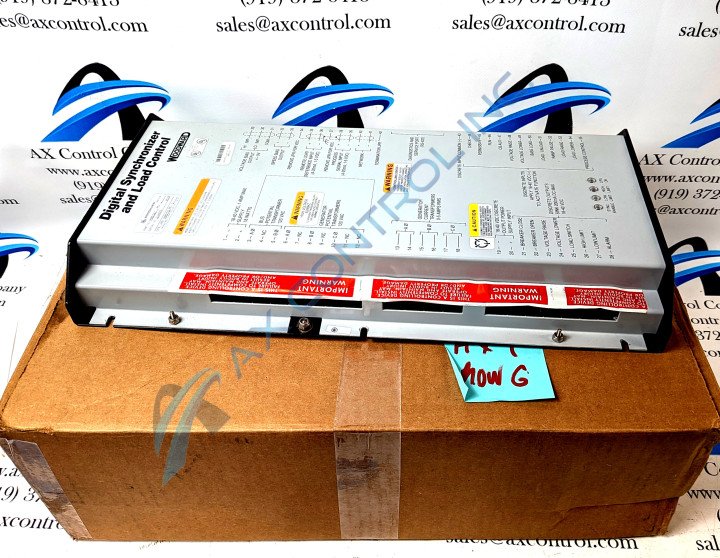

Digital Synchronizer and Load Control Woodward Model 9905-367 for AC generators. Features 0.5 to 4.5 VDC speed bias output, Open Delta PT Configuration, 120 voltage input, with full functions.



3 Year Warranty: Learn More
Sell Surplus: Have a 9905-367 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9905-367
  • SKU: 9905367WO
  • Manufacturer: Woodward
  • Series: DSLC Digital Synchronizer and Load Control

9905-367 Technical Specifications

Dimensions H461mm x W265mm x D59mm
Features 0.5–4.5 Vdc Speed Bias
Input Voltage 120VAC
Model 9905-367
Operating Temperature -40 to 158 F
Standards Full Upgrade Level
Storage Temperature -67 to 221 F
Weight Less than 7lbs.

Product Description

The model listed here is a part of the DSLC lineup; Digital Synchronizers and Load Control devices. The DSLC series was manufactured by Woodward Inc., the longstanding digital hardware corporation. The numerical designation for this unit is 9905-367.

The standard Woodward DSLC specifications apply to this model, such as the multi-function capabilities and standard temperature range. The unique specifications for this unit feature a speed bias output model, ranging from 0.5 to 4.5 volts of direct current. This model’s PT Configuration for the unit is in an open delta configuration. The voltage input is designed for a nominal intake of 120 volts of alternating current but ranges from a minimum of 65 to 150 V/AC.

The standard Woodward DSLC functionalities include load sensing and control, as well as operating a dead bus closure system, and provide the option of a VAR/PF and process control. It is able to provide operators with both the options of phase match and slip frequency automatic synchronizing.

The 9905-367 utilizes its own local operating network to communicate and enable safe dead bus closure. Before paralleling, this unit ties into the generator’s automatic voltage regulator to match the voltage.

AX Control Inc. is able to provide the 9905-367 Woodward DSLC unit, as well as other Woodward Inc. produced devices. Our staff of local, on-site technicians is responsible for the reconditioning of our inventory. We are able to cover this unit with an unparalleled, comprehensive warranty automatically upon purchase.

Reviews For 9905-367

Internal Review

The DSLC control model 9905-367 is a microprocessor-based generator load control designed for use with a Woodward speed control and an automatic voltage regulator to provide synchronizing, paralleling, loading, and unloading of three-phase generator sets. - AX Tech Team

Repair Services For 9905-367

Type Lead Time Price Action
Repair Service 1-2 weeks $1131

Our highly skilled technicians can repair your 9905-367. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
