9905-362 Technical Specifications

Dimensions H461mm x W265mm x D59mm
Features Open Delta PT Configuration
Humidity Standards 95% at 38 °C
Input Voltage 240 Vac
Manufacturer Woodward
Operating Temperature –40 to +70 °C
Speed Bias +3.0 Vdc
Storage Temperature –55 to +105 °C
Weight 6lbs 14oz

Product Description

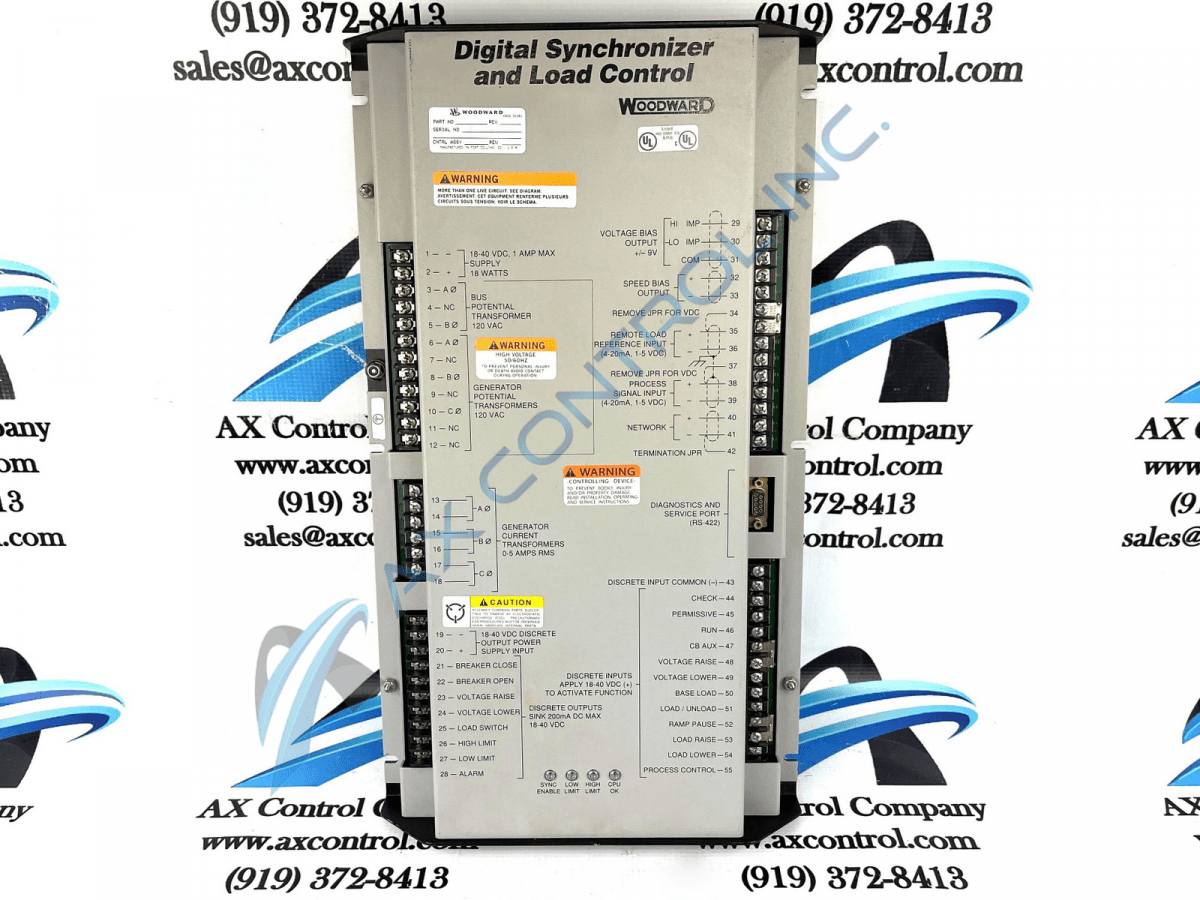

Part 9905-362 is a Woodward DSLC Digital Synchronizer and Load Control. This is a microprocessor-based control. It is designed for use with a Woodward speed control and an automatic voltage regulator for paralleling, synchronizing, loading, and unloading three-phase generator sets. Part 9905-362 is a reduced upgrade level DSLC part number. This means that it does not have power factor control or process control functions and is intended for applications that do not require integrated power factor or process control.

This unit has three-phase true RMS power sensing, ensuring accuracy even in the event of voltage fluctuations and unbalanced phase loading. The 9905-362 DSLC control has an input voltage rating of 240 Vac and a speed bias of +3.0 Vdc. This control is rated for operating temps from –40 to +70 °C (-40 to 158 F) and storage temps from –55 to +105 °C (-67 to 221 F).

A few synchronizer features include:

  • Time-delayed automatic multi-shot reclosing
  • Voltage matching
  • Auto-resynchronizing
  • Synchronizer timeout alarm

These features may be enabled or disabled during setup.

When working with or near the control certain precautions to protect against static damage should be followed, for example: touching and holding a grounded metal object (pipes, cabinets, equipment, etc.) to discharge the static electricity on your body to the ground before doing maintenance on the DSLC, wearing natural fiber clothing, and keeping plastic, vinyl, and Styrofoam materials away from the control, the modules, and the work area as much as possible.

For additional Woodward part 9905-362 DSLC control product specifications and information, as well as safety precautions, please consult the Woodward DSLC Digital Synchronizer and Load Control Manual 02007, available online. Repairs of parts 9905-362 are available through AX Control.

Reviews For 9905-362
Internal Review

9905-362 features include voltage matching, time-delayed automatic multi-shot reclosing, auto-resynchronizing, and a synchronizer timeout alarm. Each of these features may be enabled or disabled during setup. - AX Control Tech Team

Repair Services For 9905-362

Type Lead Time Price Action
Repair Service 1-2 weeks $1511

Our highly skilled technicians can repair your 9905-362. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
