9905-361

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
Obsolete DSLC part number 9905-360 that functions correctly with the new DSLC part numbers in all functions except dead bus closing.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9905-361 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9905-361
  • SKU: 9905361WO
  • Manufacturer: Woodward
  • Series: DSLC Digital Synchronizer and Load Control

9905-361

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
Obsolete DSLC part number 9905-360 that functions correctly with the new DSLC part numbers in all functions except dead bus closing.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9905-361 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9905-361
  • SKU: 9905361WO
  • Manufacturer: Woodward
  • Series: DSLC Digital Synchronizer and Load Control

9905-361 Technical Specifications

Dimensions H461mm x W265mm x D59mm
Features Sheet Metal Back Plate
Input Voltage 18 to 40 Vdc continuous
Manufacturer Woodward
Operating Temperature -40 to 158 F
Standards Indoor Use Only
Storage Temperature -67 to 221 F
Weight 6lbs 14oz

Product Description

9905-361 is a microprocessor-based control designed for paralleling, synchronizing, loading, and unloading three-phase generator sets when used with a Woodward speed control and an automatic voltage regulator.  Up-to-date information on the compatibility of old DSLC part numbers or on the data format of the network variables may be found through the Woodward Technical Assistance Group. Repairs of parts 9905-361 are still available through AX Control. This control is rated for operating temps from –40 to +70 °C (-40 to 158 F) and storage temps from –55 to +105 °C (-67 to 221 F).

With the 9905-361 DSLC control, the internal digital base load reference may be raised or lowered through switch inputs. Remote load setting is also possible via a 4–20 mA (or 1–5 Vdc) analog input. When the operating mode is changed, load and unload ramps ensure a smooth transition.

A few of the additional load control features of the 9905-361 DSLC control include:

  • A frequency trimmer function for accurate frequency control in isochronous load sharing systems
  • Simple load droop operation provides safe operation in parallel bus applications
  • Adjustable load switch output with independent pick-up and drop-out points
  • Load raise and lower inputs to adjust speed before synchronizing
  • Voltage raise and lower inputs to adjust voltage before synchronizing

When working with or near the control certain precautions to protect against static damage should be followed, for example: touching and holding a grounded metal object (pipes, cabinets, equipment, etc.) to discharge the static electricity on your body to the ground before doing maintenance on the DSLC, wearing natural fiber clothing while performing maintenance on the control, and keeping plastic, vinyl, and Styrofoam materials away from the control, the modules, and the work area as much as possible.

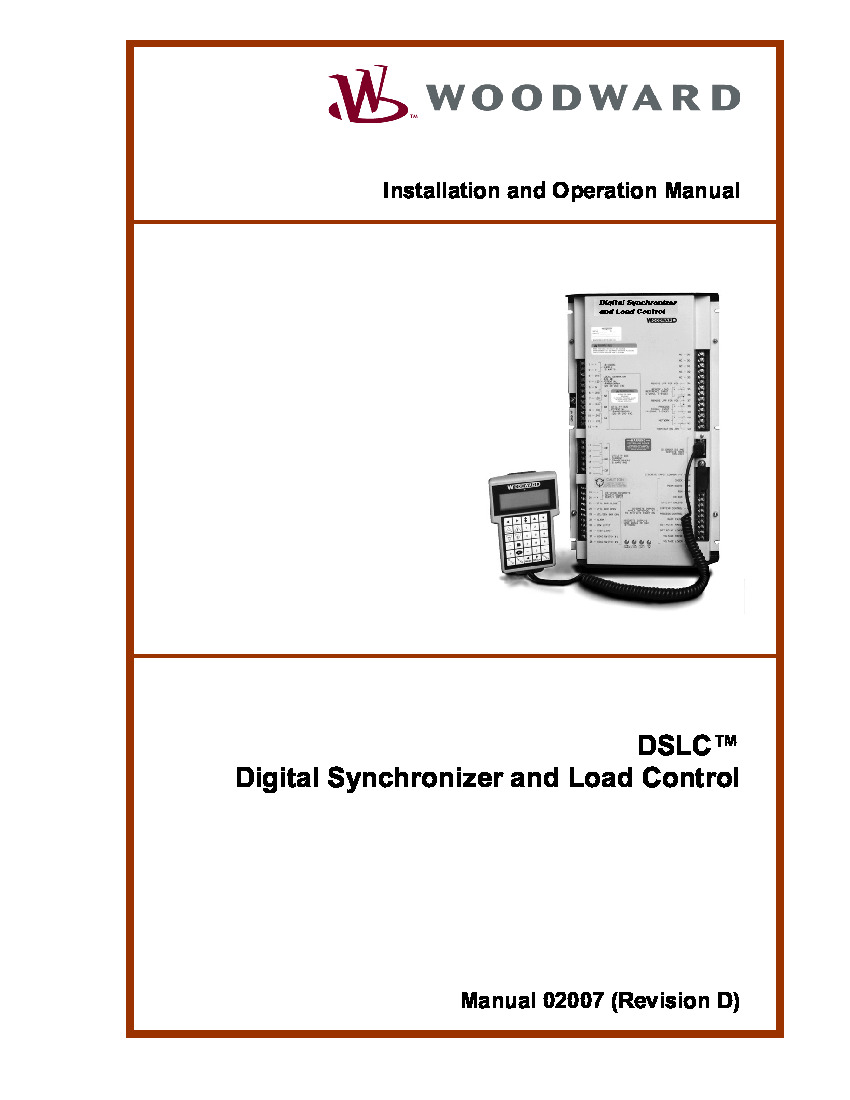

Additional product information on the Woodward 9905-361 DSLC control, as well as a more comprehensive list of safety and damage precautions, may be found online in the Woodward DSLC Digital Synchronizer and Load Control Manual 02007.

Reviews For 9905-361
Internal Review

9905-361 load raise and lower inputs can be used to adjust speed before synchronizing. Voltage raise and lower inputs can be used to adjust voltage before synchronizing. - AX Control Technician

Repair Services For 9905-361

Type Lead Time Price Action
Repair Service 1-2 weeks $1489

Our highly skilled technicians can repair your 9905-361. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

9905-361 Manuals, White Papers, Data Sheets, and Troubleshooting
