9905-063 Technical Specifications

Dimensions 216W x 185H x 52D mm
Enclosure Type Metal Chassis
Input Power 115 Vac or 230 Vac, 50 or 60 Hz.
Operating Temperature -40 to +185 F (-40 to +85 C)

Product Description

Model 9905-063 is an Automatic Generator Loading control unit. This device was developed and produced by the oldest motor control manufacturer in the country, Woodward Inc. The Woodward AGLC units are designed to be used alongside a set of load sharing and speed control modules.

The standard applications for this AGLC unit supply generator operators with a soft load in and load out option. The loading is initiated by an auxiliary circuit breaker within the generator, while the unloading is processed when the unload contact is opened. It is able to achieve a bumpless transfer when paralleling an engine/generator set from a load-sharing set. It compares the available potential that is on the load sharing lines of the oncoming generator with the potential of the system. The 9905-063 AGLC unit is able to baseload between 1 and 15 generator sets that make up a utility. The baseload switch is either closed or jumpered, then the control automatically causes the system to ramp to the pre-set baseload level.

The environmental specifications this unit is outfitted with giving it an operational temperature range that reaches up to 85 degrees C, or 185 F, before failing to function.

AX Control Inc. is able to buy, sell, and repair the 9905-063 unit, as well as several other Woodward Inc. devices.

Reviews For 9905-063
Internal Review

Due to the age of these units (but not due to this unit in particular), be prepared to make an emergency shutdown when starting the engine or turbine to protect against possible personal injury, loss of life, or property damage. - AX Tech Team

Repair Services For 9905-063

Type Lead Time Price Action
Repair Service 1-2 weeks $645

Our highly skilled technicians can repair your 9905-063. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

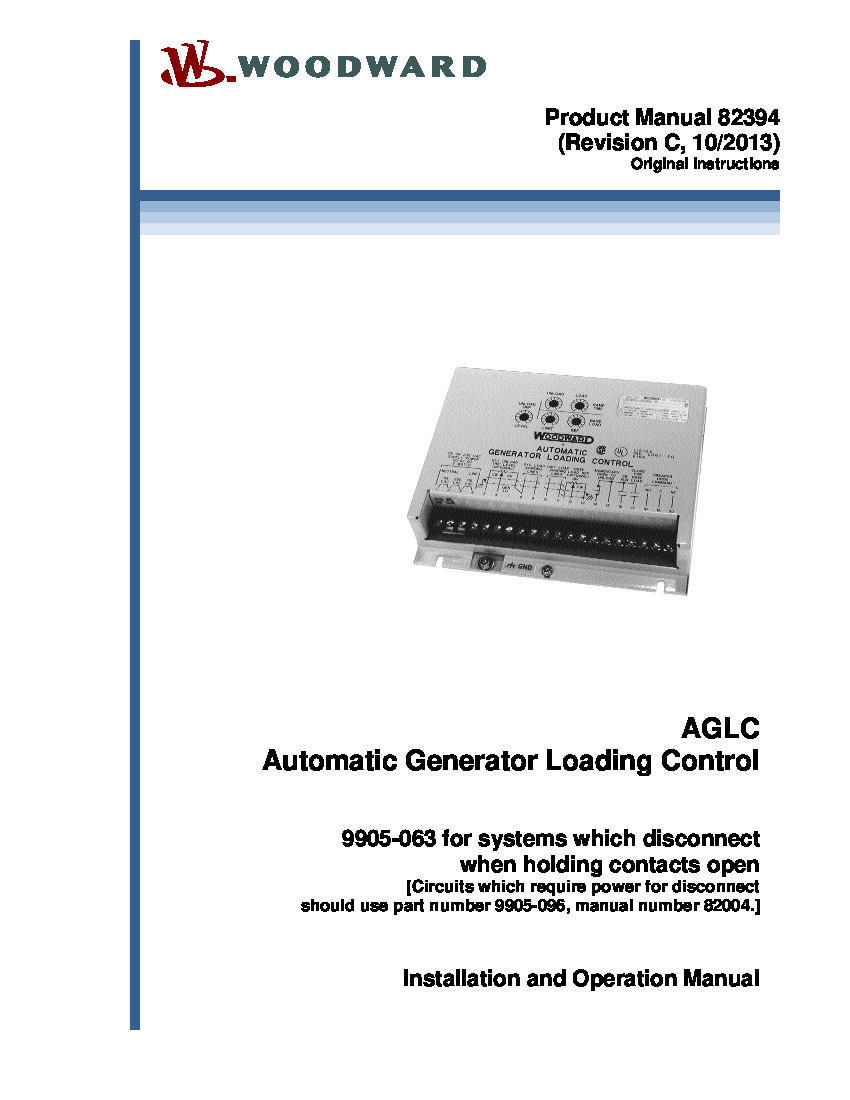

9905-063 Manuals, White Papers, Data Sheets, and Troubleshooting
