9907-033

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
Part Number 9907-033 for Woodward's 723 Digital Control. Features include two sets of dynamics, remote speed/load settings, Start/Max/Turbo Boost fuel limiters, and user-configurable communication ports.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9907-033 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9907-033
  • SKU: 9907033WO
  • Manufacturer: Woodward
  • Series: 723 and 723PLUS Digital Control

Image Coming Soon

3 year warranty

9907-033

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.67 (3)
  • Click a star to rate this product
Part Number 9907-033 for Woodward's 723 Digital Control. Features include two sets of dynamics, remote speed/load settings, Start/Max/Turbo Boost fuel limiters, and user-configurable communication ports.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9907-033 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9907-033
  • SKU: 9907033WO
  • Manufacturer: Woodward
  • Series: 723 and 723PLUS Digital Control

9907-033 Technical Specifications

Dimensions W41.28 | L29.21 | H6.04
Manufacturer Woodward
Operating Temperature -40 to +70 °C
Part Number 9907-033
Product Manual 02784 A
Storage Temperature -55 to +105 °C
Weight 2.95kg

Product Description

Woodward Digital Speed Control 9907-033 is a unit in the company’s 723 series. The 9907-033 is a DSLC-compatible model offering a more comprehensive range of load control and monitoring. This control is a low-voltage model (18 to 40 Vdc) with a torsional filter. A high-voltage model is also available (9907-034), as are high- and low-voltage versions without the torsional filter (9907-032, 9907-031). All four are available through AX Control.

This 723 speed and load control unit has a self-diagnostic feature to monitor control integrity. The integrated diagnostic tests include monitoring the processor, memories, and baseline power supply. The 9907-033 also stores all set points in permanent memory, ensuring data is retained without relying on external power sources.

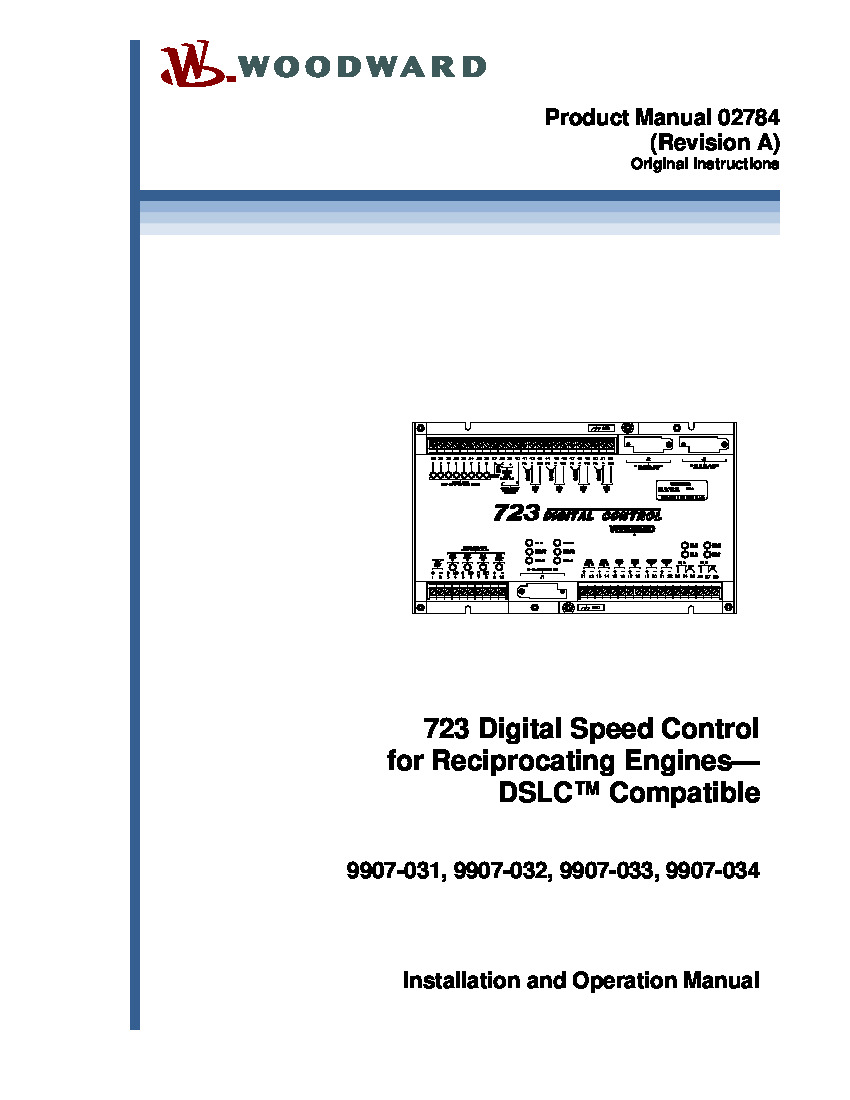

Woodward part 9907-033 has analog and discrete I/Os, two-speed signal inputs (MPU or proximity switch compatible), relay contact outputs, and a load-sharing input. Woodward 723 Product Manual 02784 has additional information on the configurable I/Os of this speed control along with the other manuals found in our "Manuals" Tab.

Parameters and functions can be monitored via two LON channels, one for the DSLC and one for Woodward LinkNet input/output nodes. This control can also interface with an HMI or other Modbus master device via the unit’s two serial channels. The Woodward Hand Held Programmer or other standard ASCII character computer terminal with an RS-422 serial port can be used to adjust and monitor the control.

Reviews For 9907-033
Internal Review

9907-033 is suitable for UL hazardous locations Class I div 2 Groups A/B/C/D. Installation and operation should be either performed by a certified or well-versed operator. - AX Control Tech Team

Repair Services For 9907-033

Type Lead Time Price Action
Repair Service 1-2 weeks $1957

Our highly skilled technicians can repair your 9907-033. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
