Model 9906-700 from Woodward Series 723PLUS of Digital Controllers. This is a programmable Modified Actuator Filtering, Low Voltage Model for applications requiring two magnetic pickups (MPUs) or proximity switches. It can be used in load-sharing systems as it contains supported circuitry and connections.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9906-700 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9906-700
  • SKU: 9906700WO
  • Manufacturer: Woodward
  • Series: 723 and 723PLUS Digital Control

Image Coming Soon

3 year warranty

9906-700

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (1)
  • Click a star to rate this product
Model 9906-700 from Woodward Series 723PLUS of Digital Controllers. This is a programmable Modified Actuator Filtering, Low Voltage Model for applications requiring two magnetic pickups (MPUs) or proximity switches. It can be used in load-sharing systems as it contains supported circuitry and connections.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9906-700 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9906-700
  • SKU: 9906700WO
  • Manufacturer: Woodward
  • Series: 723 and 723PLUS Digital Control

9906-700 Technical Specifications

Chassis Metal for Hazardous Locations
Dimensions (in) 16.25W x 11.5L x 2.375H
Input Voltage 18–40 Vdc
Manufacturer Woodward
Model Modified actuator filtering, low voltage
Part Number 9906-700
Software Version No Software Bundle
Weight 6lbs 8oz

Product Description

Woodward digital control model 9906-700 is in the company’s 723PLUS series. This 723PLUS Digital Control does not contain software, it is only the hardware. Model 9906-700 is a low-voltage model with a standard 18-40 Vdc (24 or 32 Vdc nominal) external power supply. This model is a little different than other low-voltage models, as it includes modified actuator filtering. A low-voltage model without this feature is also available (part 9906-619), as is a high-voltage model (9906-620).

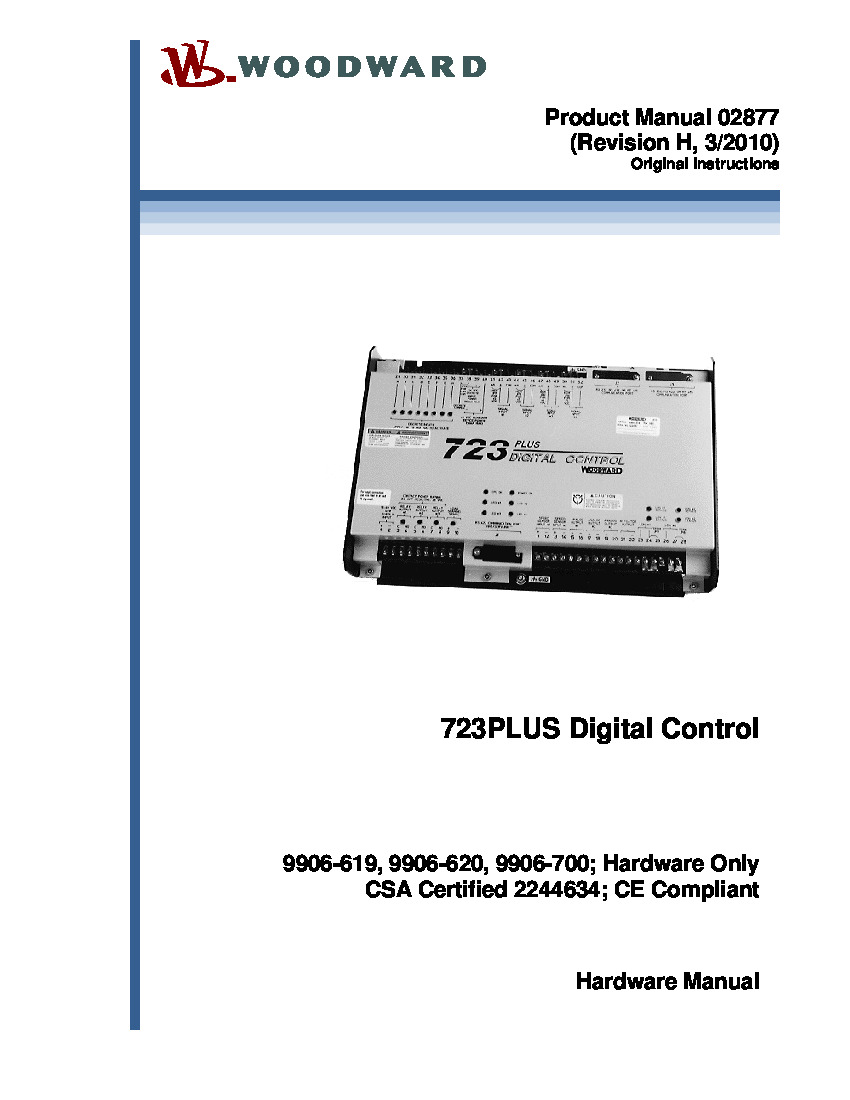

The 723PLUS 9906-700 control has a metal chassis that encases the device’s single-printed circuit board. Three 9-pin subminiature D connectors and three terminal strips provide connections. This hardware can handle temperatures between -40 and +70 °C during operation. Environment requirements of a mounting location for this Woodward control can be found in 723PLUS Hardware Manual 02877. This manual also contains compliance information for this device, including CSA certification and various marine listings.



Model 9906-700 has standard 723PLUS features that make it suitable for a range of applications, including compatibility with accessories for load-sharing applications. There are two LON channels for Woodward LONTalk or LinkNet I/O nodes. It also supports interfacing with a Modbus master device, a Digital Synchronizer and Load Control (DSLC), and an SPM-A Synchronizer. Manual 02877 has more info on all of these options and more.

Reviews For 9906-700
Internal Review

Model 9906-700 is a durable controller suitable for any factory's hazardous environment. We have tested in-stock units for functionality and our surplus of availability makes a direct replacement a breeze. Reach out to our sales team via phone or email for any inquiries. - AX Control Techs

Repair Services For 9906-700

Type Lead Time Price Action
Repair Service 1-2 weeks $1517

Our highly skilled technicians can repair your 9906-700. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
