723PLUS Analog Load-sharing 8280-414 Model. Low-Voltage Model with a Power Supply Rating of 18-40 Vdc (24 or 32 Vdc nominal). The 723PLUS/828 controllers can be expanded through LinkNet nodes that include thermocouples, RTD, analog, and discrete type I/O.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 8280-414 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8280-414
  • SKU: 8280414WO
  • Manufacturer: Woodward
  • Series: 723 and 723PLUS Digital Control

Image Coming Soon

3 year warranty

8280-414

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product

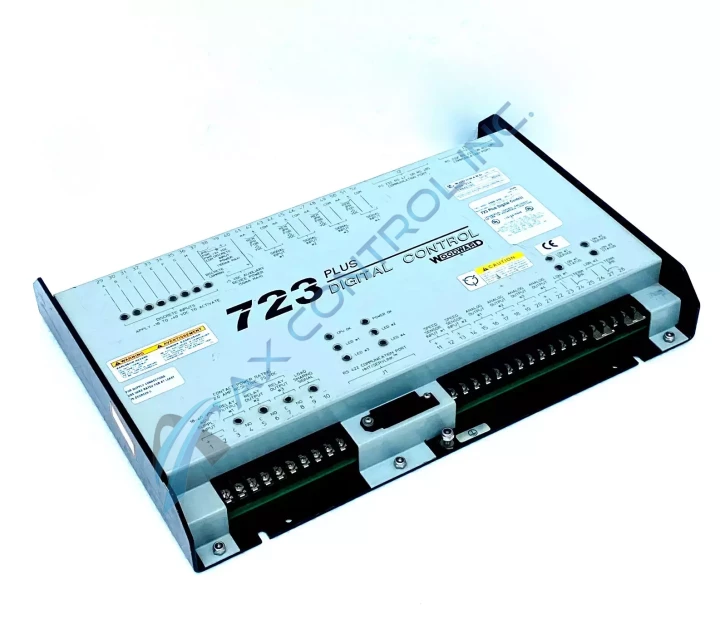

723PLUS Analog Load-sharing 8280-414 Model. Low-Voltage Model with a Power Supply Rating of 18-40 Vdc (24 or 32 Vdc nominal). The 723PLUS/828 controllers can be expanded through LinkNet nodes that include thermocouples, RTD, analog, and discrete type I/O.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 8280-414 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8280-414
  • SKU: 8280414WO
  • Manufacturer: Woodward
  • Series: 723 and 723PLUS Digital Control

8280-414 Technical Specifications

Ambient Temperature Ratings Operating -40 to +70 °C (-40 to +158 °F) | Storage -55 to +105 °C (-67 to +221 °F)
Dimensions (in) 16.25W x 11.5L x 2.375H | (cm) W41.275 x L29.21 x H6.0325
Features 4 Analog Inputs and 8 Discrete Inputs
Inrush Current (Low Voltage) 7 A for 0.1 ms
Manual 02879
Manufacturer Woodward
Model 723PLUS Low Voltage
Power Consumption 40 W nominal
Weight 6lbs 8oz | 2.95kg

Product Description

Model 8280-141 is the low-voltage version of the Woodward 723PLUS Analog Load Sharing Digital Speed Control. This digital speed control is used to control the load and speed of reciprocating engines that are in generator set service.



This includes those with flexible couplings, as the speed signal inputs on the 8280-414 support the use of either proximity switches (speed signal frequencies below 1000 Hz) or magnetic pickups (minimum 400 Hz magnetic pickup frequency). Other control options include tandem actuator outputs, 0–1 or 4–20 mA analog outputs, or 4–20 or 0–200 mA actuator outputs.



The 723PLUS part 8280-414 is CSA Certified (Class I, Division 2, Groups A, B, C, & D). According to Woodward Governor, when this controller is put into service per the instructions outlined in the product manual, the controller complies with the requirements of EN50081- 2 and EN50082-2.



The low voltage model 8280-414 has a 40 W nominal power consumption and requires an 18 to 40 Vdc voltage source. High voltage models (8280-415, 8280-481) require a voltage source of 90 to 150 Vdc. Models 8280-480 and 8280-481 are the low-speed versions for engines rated at 130 rpm or less. Aside from these voltage and engine speed rating differences, these three other models are identical to the 8280-414.

Reviews For 8280-414
Internal Review

The 8280-414 is CE Marked and UL listed and supports UL hazardous locations Class I div 2 Groups A/B/C/D. These certifications guarantee functionality in industrial environments and will supply you with longevity for you and your systems. Please reach out to our sales team for replacement or repair inquiries. - AX Control Inc.

Repair Services For 8280-414

Type Lead Time Price Action
Repair Service 1-2 weeks $1979

Our highly skilled technicians can repair your 8280-414. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
