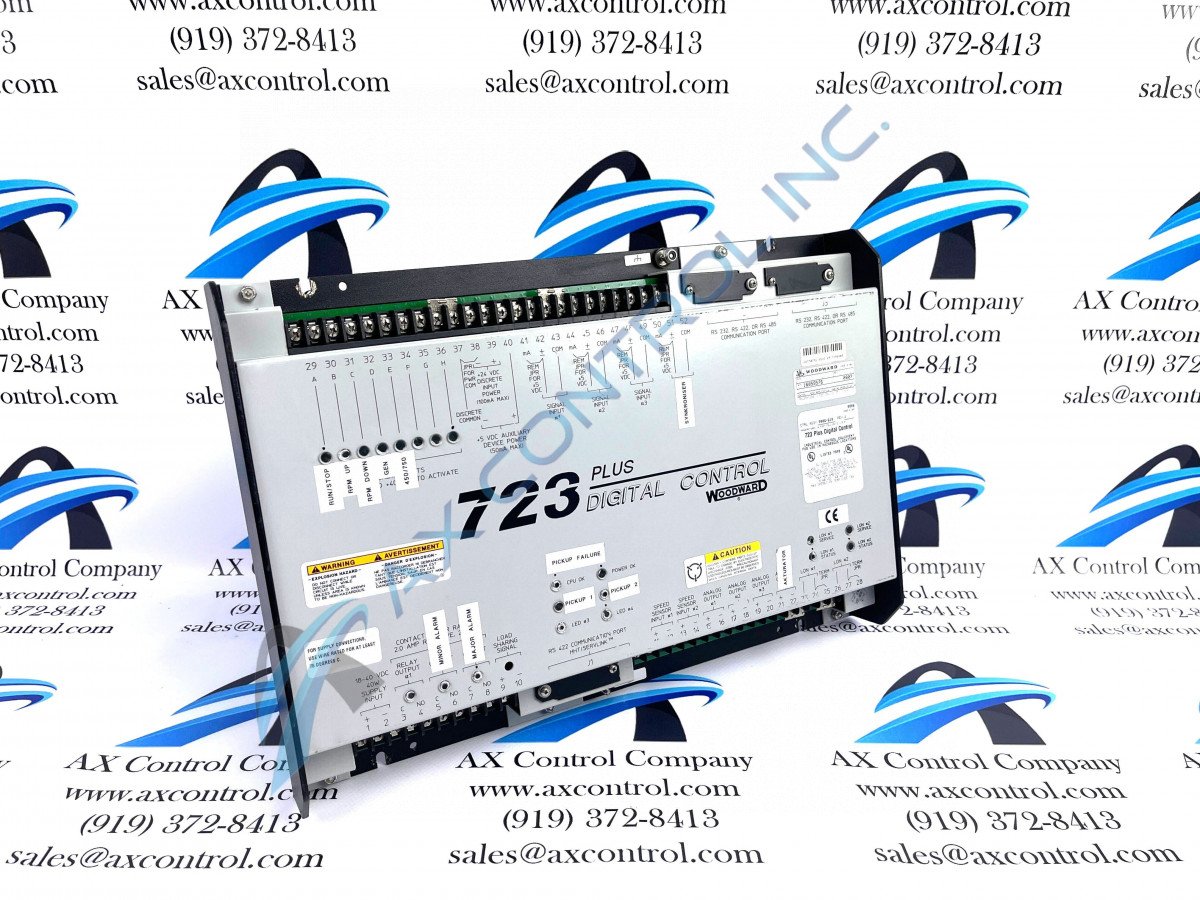

Model 8280-1076 from Woodward Series 723PLUS of Digital Controllers (Ctrl Assm 9906-619). This is a programmable unit for applications requiring two magnetic pickups or proximity switches. It can be used in load-sharing systems as it contains supported circuitry and connections.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 8280-1076 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8280-1076
  • SKU: 82801076WO
  • Manufacturer: Woodward
  • Series: 723 and 723PLUS Digital Control

8280-1076

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
Model 8280-1076 from Woodward Series 723PLUS of Digital Controllers (Ctrl Assm 9906-619). This is a programmable unit for applications requiring two magnetic pickups or proximity switches. It can be used in load-sharing systems as it contains supported circuitry and connections.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 8280-1076 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8280-1076
  • SKU: 82801076WO
  • Manufacturer: Woodward
  • Series: 723 and 723PLUS Digital Control

8280-1076 Technical Specifications

Chassis Metal for Hazardous Locations
Dimensions 16.25W in x 11.5L in x 2.375H in
Manufacturer Woodward
Model Ctrl Assm 9906-619 with software
Operating Temperature –40 to +70 °C (–40 to +158 °F)
Part Number 8280-1076
Series 723PLUS
Standards CSA Certified Class I, Division 2, Groups A, B, C, & D
Storage Temperature –55 to +105 °C (–67 to +221 °F)
Weight 6lbs 8oz

Product Description

This unit is a load-sharing control/Cat ADEM in the 723PLUS series by Woodward. There are three part numbers associated with this control. This part number, 8280-1076, refers to the system; the hardware is part number 9906-619; the application software is part number 5601-1088. This unit has four operation modes: Load Sharing, Synchronization, Stopped / Bypassed, and Speed-Reference Forward.

Speed synchronization and load sharing control are the two primary functions of the Woodward 723PLUS Load Sharing Control/Cat ADEM. For this purpose, the 8280-1076 control has two-speed sensor inputs which may be either passive (MPUs) or active (proximity switches).

Along with the two-speed sensor inputs, the Woodward 8280-1076 control has four analog inputs, three analog outputs, three discrete outputs, and eight discrete inputs. All of the I/Os on the 723PLUS controls have several defined signals and are configurable to suit the needs of various applications. There are eleven discrete signals that can be assigned to any of the three discrete outputs and/or four LEDs on this unit. Two of these signals are minor/major alarms.

Three serial ports on the 723PLUS 8280-1076 control support the unit’s communication options. This includes the use of Woodward’s Hand Held Programmer (part number 9907-205), Watch Window, ServLink, and Modbus.

Details on the 8280-1076 control, including additional relevant documentation, can be found in 723PLUS Load Sharing Control/Cat ADEM Manual 26373 and 723PLUS Hardware Manual 02877.
