20-160mA Actuator Output 8262-092 Model | Woodward's 723 Digital Control for the 723 Position Control System. This unit supplies the actuator output in place of the Woodward 505 Digital Turbine Control in case of 505 Control failure.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 8262-092 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8262-092
  • SKU: 8262092WO
  • Manufacturer: Woodward
  • Series: 723 and 723PLUS Digital Control

Image Coming Soon

3 year warranty

8262-092

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (2)
  • Click a star to rate this product
20-160mA Actuator Output 8262-092 Model | Woodward's 723 Digital Control for the 723 Position Control System. This unit supplies the actuator output in place of the Woodward 505 Digital Turbine Control in case of 505 Control failure.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 8262-092 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8262-092
  • SKU: 8262092WO
  • Manufacturer: Woodward
  • Series: 723 and 723PLUS Digital Control

8262-092 Technical Specifications

Actuator Output 20-160mA
Features Load Sharing Input x1: 0 - 3 Vdc
Input Voltage 18 - 40 Vdc ( Nominal 24 Vdc )
Manufacturer Woodward
Mechanical Shock Standard US MIL-STD 810C, Method 516.2, Proc. I, II, V
Operating Temperature -40 to 70 °C
Power Consumption 40 W nominal
Storage Temperature -55 to 105 °C

Product Description

This digital control is part of Woodward Governor’s 723 Position Control System. Model number 8262-092 provides a 20-160mA actuator output. The 723 Position Control is also available for 4-20mA actuator output (model 8262-094).



The 8262-092 model protects turbine systems from overspeed conditions by supplying the actuator output signal in the event of a turbine control failure. 723 model 8262-092 is designed to work with the Woodward 505 Digital Turbine Control. If a 505 Control failure occurs, the 723 Position Control will automatically take over as the actuator signal source.



If the actuator signal source is switched from the 505 Control to the 723 Control, the actuator output signal is raised or lowered manually after the switch. When the 505 Control function is restored, the actuator signal source is switched back from the 723 Control.

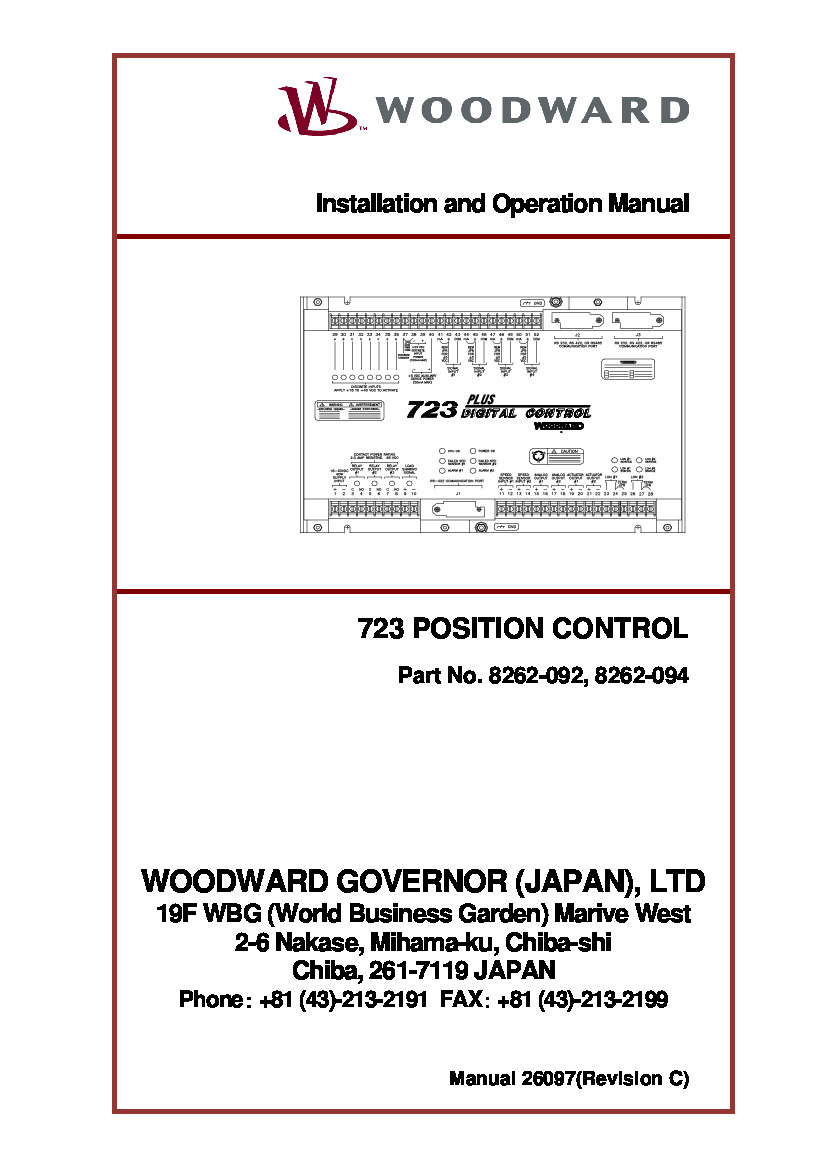

There are a few accessories that can be used with the 8262-092 control. Part number 9907-205 is Woodward’s Hand Held Programmer, which plugs into serial port J1 of this Position Control to adjust and monitor its functions. The 723 Position Controls can also be operated using an optional panel, the 723 Operation Board. Details on the use of these accessories with this unit can be found in Woodward 723 Installation and Operation Manual 26097.

Reviews For 8262-092
Internal Review

The 8262-092 is a durable backup system for monitoring the actuator output signal from Woodward 505 systems in case of a system failure and will control two relays to switch the actuator signal source. - AX Control Tech Team

Repair Services For 8262-092

Type Lead Time Price Action
Repair Service 1-2 weeks $1901

Our highly skilled technicians can repair your 8262-092. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
