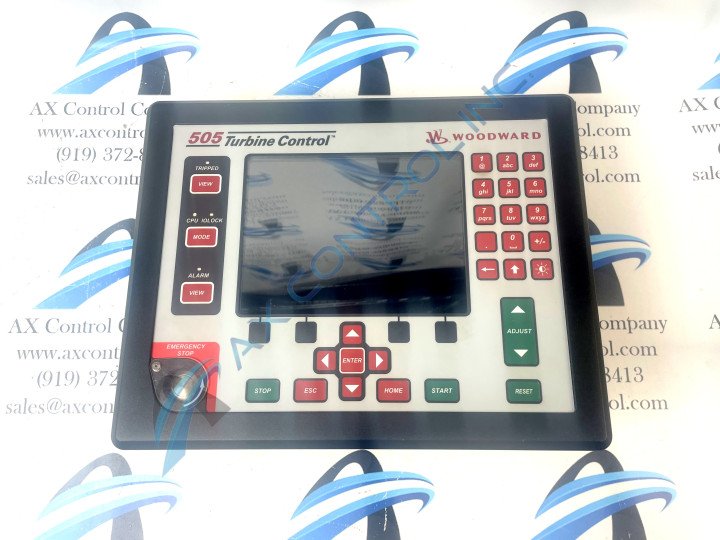

The 8200-1311 Standard Compliance AC/DC Digital Governor made for Woodward's 505XT Digital Governor Series

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a 8200-1311 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: 8200-1311
SKU: WO-59495

Manufacturer: Woodward
Series: 505XT Digital Governor

Description
Repairs
Warranty
Manuals

8200-1311 Technical Specifications

Part Number	8200-1311
Functional Description	Standard Compliance AC/DC Digital Governor
Series	505XT Digital Governor
Manufacturer	Woodward
Networking	4) CAN ports, separate connectors
Network Isolation	500 Vrms to EARTH
CAN Baud Rates	125 K, 500 K, 250 K, and 1 Mbit
Pollution Degree	2
PID Controllers	7 Controllers
Voltage	AC/DC
Trip Indication	First-Out

About the 8200-1311

The 8200-1311 Standard Compliance AC/DC Digital Governor made for Woodward's 505XT Digital Governor Series has a number of environmental specifications that must be adhered to during its Operation Mode. These specs include its:

–30 °C to +70 °C Operating and Storage Temperature
8.2 Grms Industrial Skid Mount Vibration
10 G, 3x Per-Axis Shock
5 % to 95 % Non-Condensing Humidity
IP20 NEMA Rating
Pollution Degree of 2

The conformal coating applied to the base circuitry of this Governor Module is characterized as Polyacrylate and resistant to sulfur.

8200-1311 Input Power

The 8200-1311 here comes with its own selection of input power specifications that must be followed to prevent damage or injury. They are indicated in the chart just below:

Specification	Value
HV input voltage range	88-264 VAC / 90-150 VDC
HV input frequency range	45-65 Hz
Input power (AC max)	< 73 W, 1.6 A max
Input power (DC max)	< 73 W, 0.8 A max
Output voltage holdup time	> 30 ms with 110 VAC input voltage
Output voltage holdup time	> 120 ms with 220 VAC input voltage
Isolation to other circuits	> 3000 Vrms to all other circuits
Isolation to EARTH	> 1500 Vrms to EARTH

The input undervoltage shutdown value for this 8200-1311 Governor is ~65 VDC and non-latching.

Frequently Asked Questions about 8200-1311

How is the 8200-1311 AC/DC Governor supplied with input power?

Input power for the 8200-1311 Governor is supplied via a pluggable 3 position terminal block with a latch.

Are the 8200-1311 Governor's RJ45 connectors accompanied by LEDs?

Yes. LEDs are available corresponding to each 8200-1311 RJ45 connector to indicate both operation and port status.

Reviews For 8200-1311

Internal Review

(5.0)

LEDs are available on both the front panel and the back cover of this 8200-1311 Governor, which is additionally vented for air circulation. The Woodward AppManager is responsible for this unit's control configuration, which must be accessed in a powered-down state. General Communications for the 8200-1311 are handled through a collection of four CAN ports. - AX Control Lead Technician
