9907-167

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
Model 9907-165 from Woodward series 505E Digital Governer with controlled extraction and/or admission pressure control. 32-bit microprocessor-based digital control for Steam Turbines

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9907-167 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9907-167
  • SKU: 9907167WO
  • Manufacturer: Woodward
  • Series: 505E Turbine Control

9907-167

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (3)
  • Click a star to rate this product
Model 9907-165 from Woodward series 505E Digital Governer with controlled extraction and/or admission pressure control. 32-bit microprocessor-based digital control for Steam Turbines

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 9907-167 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9907-167
  • SKU: 9907167WO
  • Manufacturer: Woodward
  • Series: 505E Turbine Control

9907-167 Technical Specifications

Certifications CE,UL, and cUL
Dimensions 14L x 11H x 4D (inches)
Enclosure Type NEMA 4
Features Program upload/download capability
Input Voltage 18–32 Vdc
Keypad/Display 30 Analog Keys
Manufacturer Woodward
Operating Temperature -13C to +149F
Output Type 2 Actuator Outputs, 8 Relay Outputs, 6 Programmable Current Outputs
Resolution 2 Rows of 12 Characters
Standards Shock Protection meets US MIL-STD-810C, method 516.2- 1, procedure 1B
Weight Less than 10lbs. before shipping

Product Description

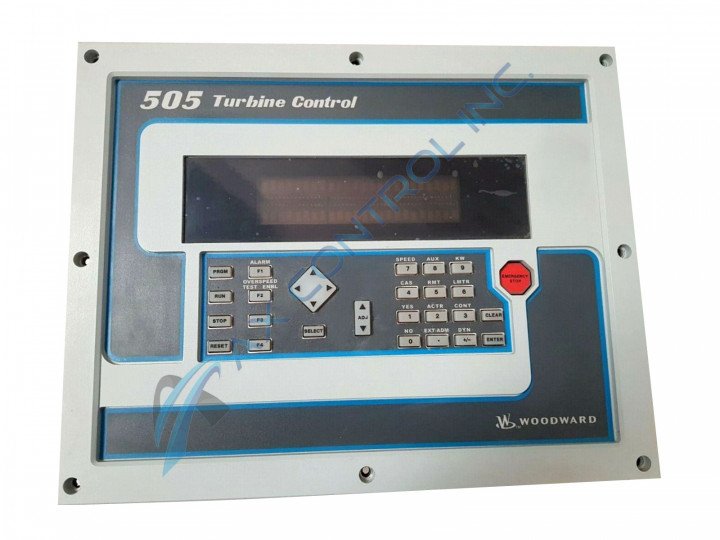

The 9907-167 unit is a part of the Woodward 505E series of digital control devices. These devices are a part of the 505E lineup which was manufactured by Woodward Inc. This is one of the oldest independent manufacturers of turbine control systems in America. The 505E series is built for devices such as industrial-sized steam turbines, small unit turbogenerators, or utility turboexpander models. The 505E line is designed overall for the single extraction and/or the admission of steam turbines. It makes the steam turbine operational by using a pair of actuators to drive the inlet steam valves.

This unit is listed under the numerical designation of 9907-167. It is outfitted with a 32-bit microprocessor in order to control the turbines. The physical body of the 9907-167 unit consists of a series of printed circuit board units, housed in an enclosure that is able to securely be mounted within a control panel system.

The 9907-167 model can be outfitted with a NEMA 4X grade protective casing. This casing is optional, however, it is able to protect the electromechanical components effectively from any permanent damage, or from any invasive particles. The case is both watertight and dust-tight, suitable for indoor and outdoor conditions. The 9907-167 unit’s ambient temperature range, without the protective frame, is -25 to 65 C, but with the frame attached, it can only withstand up to 55 C.


Reviews For 9907-167
Internal Review

The 9907-167 is designed to operate single extraction and/or admission steam turbines. The 505E series is are fantastic units to configure and operate as a stand-alone unit or in conjunction with your plant’s Distributed Control System. - AX Control Tech Team

Repair Services For 9907-167

Type Lead Time Price Action
Repair Service 1-2 weeks $6995

Our highly skilled technicians can repair your 9907-167. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
