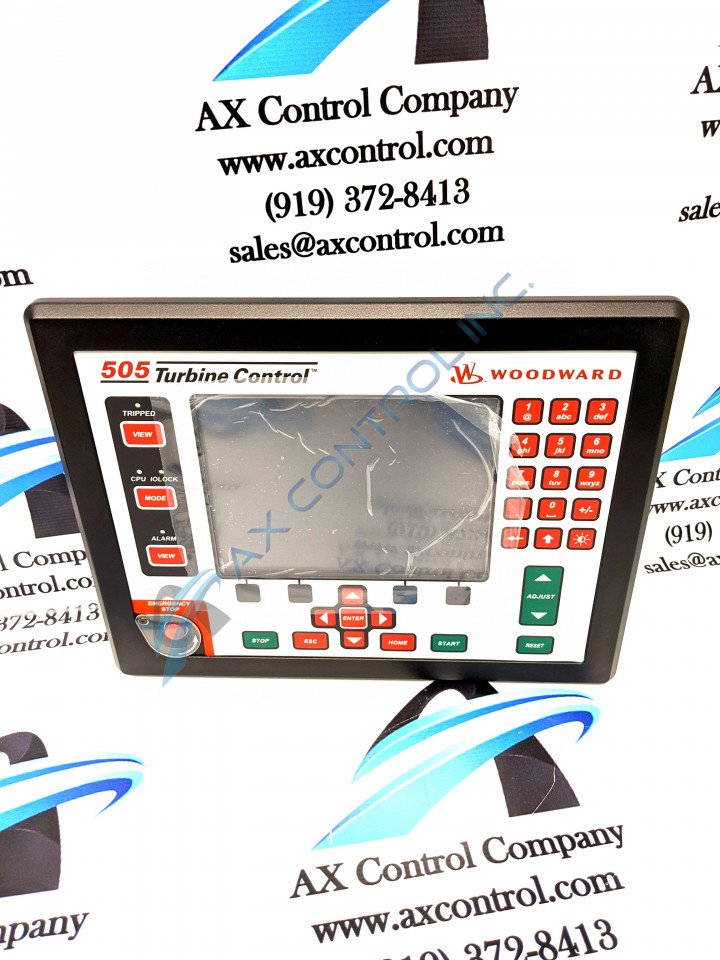

Unit 8200-1301 from Woodward is an integrated graphical front panel HMI that features AC/DC (88-132 Vac or 90-150 Vdc) power that is part of the 505D Digital Governor Turbine Control series.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 8200-1301 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8200-1301

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.30 (3)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.30 (3)
  • Click a star to rate this product
Unit 8200-1301 from Woodward is an integrated graphical front panel HMI that features AC/DC (88-132 Vac or 90-150 Vdc) power that is part of the 505D Digital Governor Turbine Control series.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

Warranty: Learn More

Sell Surplus: Have a 8200-1301 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8200-1301 Technical Specifications

Enclosure Type IP20 when installed correctly
Features Overvoltage 3
Input Power (AC max) < 73 W, 1.6 A max
Input Power (DC max) < 73 W, 0.8 A max
Manufacturer Woodward Turbine Controllers
Operating Temperature –30 °C to +70 °C
Resolution 800 x 600 pixels
Screen Size 8.5 inches
Storage Temperature –30 °C to +70 °C

Product Description

The 8200-1301 is a Woodward 505 Digital Governor designed to be used with split range or single actuators. This is one of three versions available in this series, the other two being the 8200-1300 and the 8200-1302. The 8200-1301 is primarily used for AC/DC (88 to 264 V AC or 90 to 150 V DC) ordinary location compliance power. It is field programmable and uses menu-driven software for the control of mechanical drive applications and/or generators. This governor can be configured as part of a DCS (distributed control system) or it can be designed as a standalone unit.

The 8200-1301 has several different normal operating modes. This includes a configuration mode, a run mode, and a service mode. The configuration mode will force hardware into the I/O lock and put all outputs into a state of being inactive. Configuration mode is typically only used during the original configuration of equipment. Run mode allows for normal operations from start-up to shut down. Service mode allows for calibration and adjustments either when the unit is shut down or during normal operation.

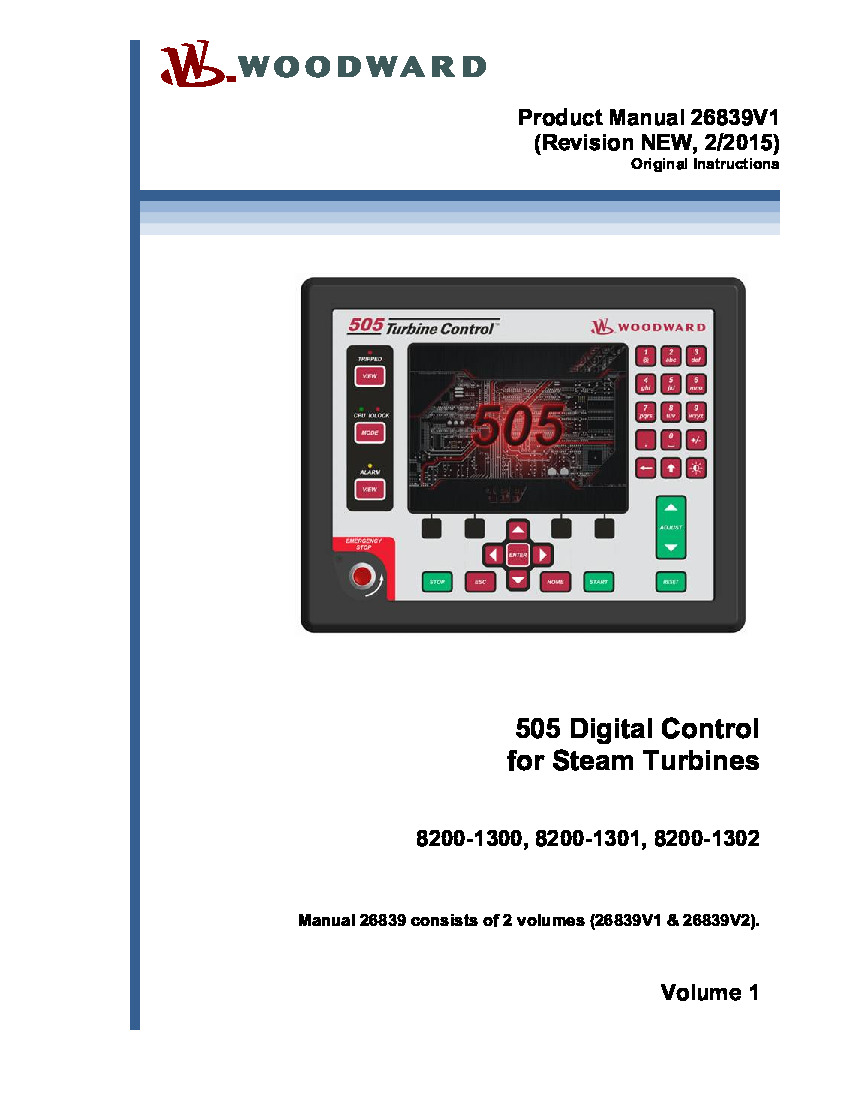

The front panel of the 8200-1301 is designed to offer multiple levels of access to allow for tuning, operating, calibration, and configuration of the turbine. All turbine control functions can be performed from the front panel. It includes logic algorithms to control, stop, start, and protect the turbine using a number of input buttons.

For additional information regarding the 8200-1301, please refer to the original documentation from Woodward. Most of our in-stock products are available for shipment immediately.

Reviews For 8200-1301
Internal Review

Field wiring must be stranded copper wire rated at least 75 °C for operating ambient temperatures expected to exceed 50 °C. Peripheral equipment must be suitable for the location in which it is used. - AX Control Tech Team
