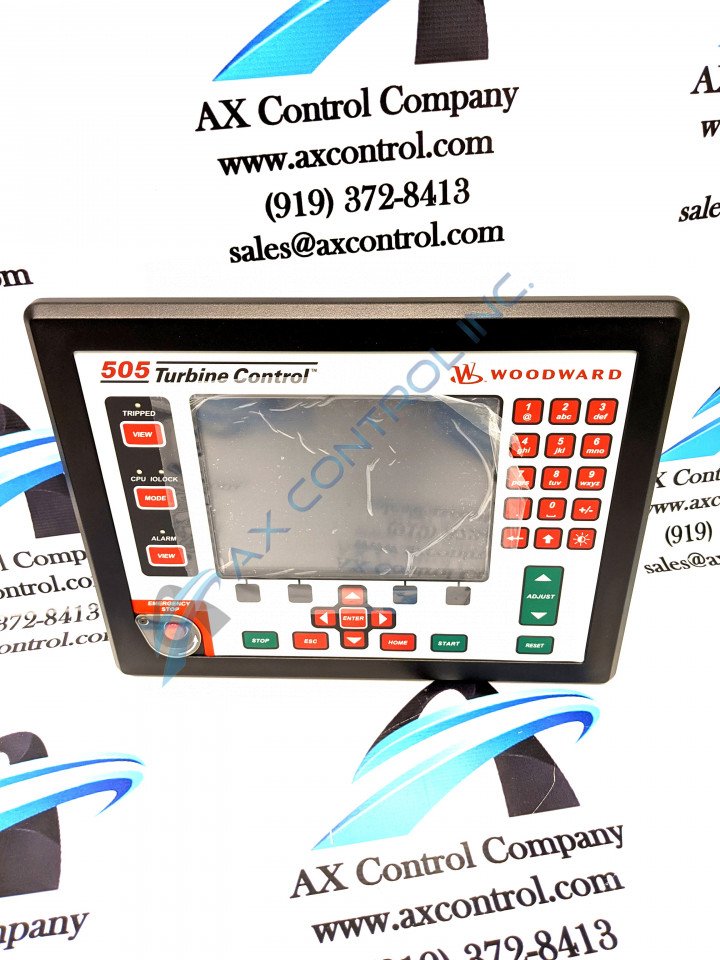

The Woodward 8200-1300 is an integrated graphical front panel HMI that is designed to control single or dual (split range) actuator steam turbines and features LVDC (18-32 Vdc) power.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 8200-1300 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8200-1300
  • SKU: 82001300WO
  • Manufacturer: Woodward
  • Series: 505D Digital Governor Turbine Control

8200-1300

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
The Woodward 8200-1300 is an integrated graphical front panel HMI that is designed to control single or dual (split range) actuator steam turbines and features LVDC (18-32 Vdc) power.

AVAILABILITY:

CALL FOR AVAILABILITY

3 Year Warranty: Learn More
Sell Surplus: Have a 8200-1300 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8200-1300
  • SKU: 82001300WO
  • Manufacturer: Woodward
  • Series: 505D Digital Governor Turbine Control

8200-1300 Technical Specifications

Features 34 Keys
Input Voltage LVDC (18–32 Vdc) Standard Compliance
Manufacturer Woodward
Operating Temperature –30 °C to +70 °C (with display)
Screen Size 8.4 inches
Standards IP20, Pollution Degree2, Overvoltage Category 3
Storage Temperature –30 °C to +70 °C (recommended 0 °C to 40 °C)

Product Description

The 8200-1300 from Woodward offers digital control for steam turbines. It is one of several digital governors available in the 505 turbine control series. This unit uses LVDC (18-32 VDC) power with standard compliance.

This unit can be used in non-hazardous locations.  It is also suitable for Class I, Div. 2, Groups A/B/C/D locations. This unit is typically installed with stranded copper field-wiring rated at least 75 degrees celsius.

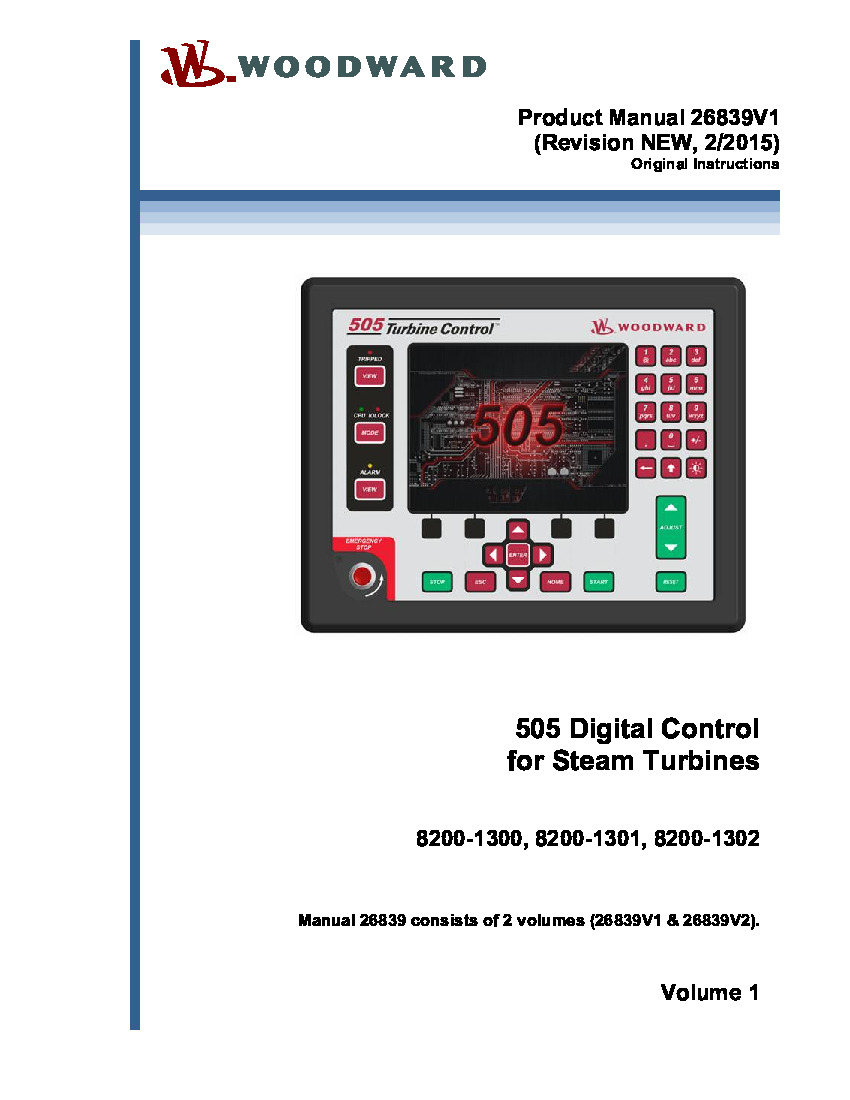

The 8200-1300 can control single or dual split range actuator steam turbines. It can be configured as part of a plant’s DCS (distributed control system) or it can be used as a stand-alone unit. It is designed with five PID controllers, including a speed/load PID controller, a cascade PID controller, and  AUX1 and AUX2 PID controllers. The unit offers an operator control panel with a graphical control panel display and keypad included. This panel includes an emergency stop button, start, stop, esc, and home buttons, a number keypad, and toggle up/down buttons as well as an enter key with up/down and left/right buttons. The panel also has four LEDs on its left side, including CPU health, IO Lock, Summary Alarm, and Summary Trip.

Internally, the 8200-1300 includes a watchdog timer and a CPU fault circuit to monitor the operation of the microprocessor and its memory.

For additional information regarding the 8200-1300, please refer to documentation from Woodward.
