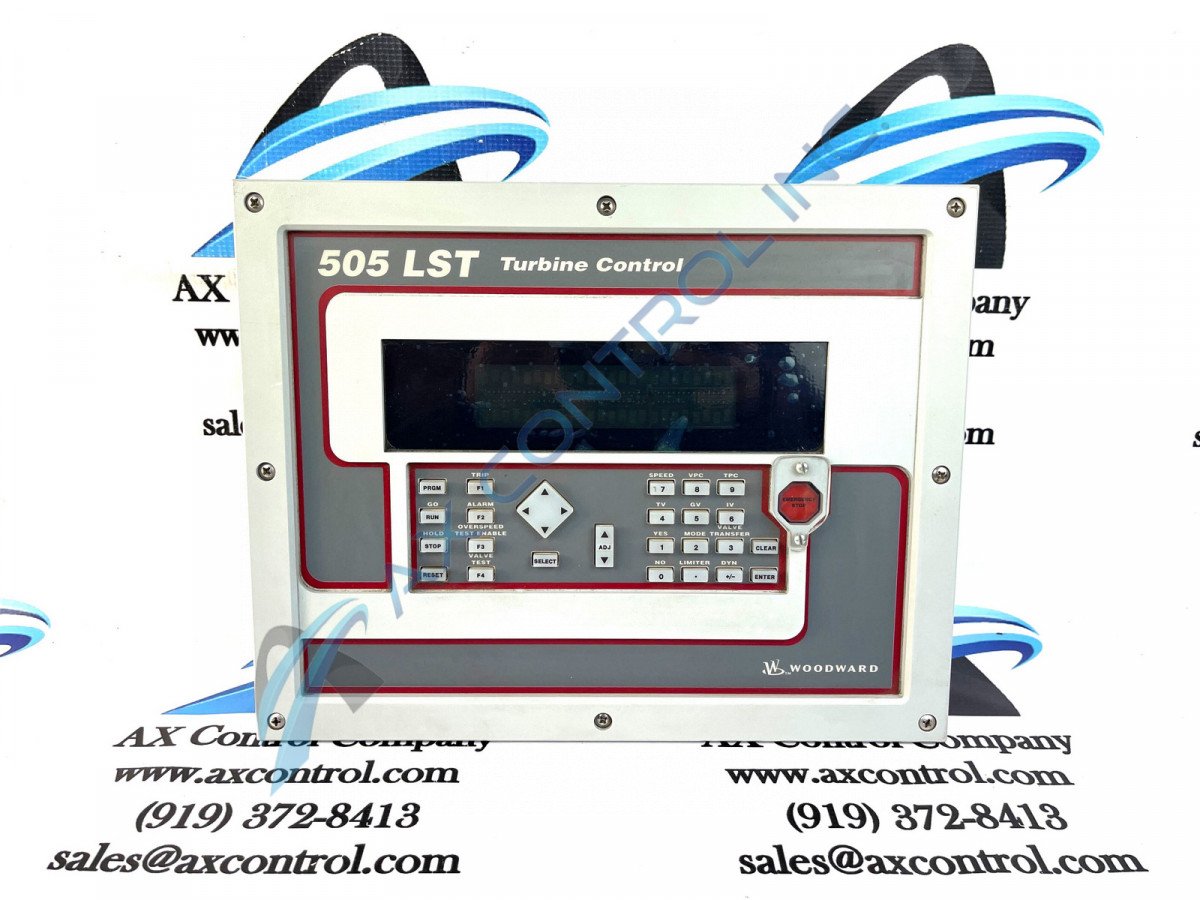

Unit 9907-170 from Woodward 505 LST Series of Turbine Controllers featuring 18-32 VDC Power. The 505 LST series is designed to manage various types of large steam turbine systems.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 9907-170 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

9907-170

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
Unit 9907-170 from Woodward 505 LST Series of Turbine Controllers featuring 18-32 VDC Power. The 505 LST series is designed to manage various types of large steam turbine systems.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 9907-170 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

9907-170 Technical Specifications

Dimensions 11H x 14W x 4.5D inches
EMI/RFI Specification US MIL-STD 461C (Parts 5 & 9)
Enclosure Type NEMA 4X Rating when Properly Installed
Input Voltage 18–32 Vdc
Manufacturer Woodward
Operating Temperature –40 to +65 °C (–40 to +149 °F)
Power Consumption 8 W
Screen Size 24 character LED
Standards EC 60068-2-60:1995 for Gaseous Pollutants
Storage Temperature –55 to +105 °C (–67 to +221 °F)
Weight 9.7 lbs

Product Description

This device is one of the several units available from the Woodward Inc. series of control units. These units were designed as a series of digital control modules. They are built to be capable of being configured in the field, configured to control specific applications and be able to change that in the future. These units are flexible, built primarily for steam turbine control, but able to control utility turbogenerators and turboexpander models.

This unit is listed as the 9907-170, a standard Woodward 505E microprocessor-based control unit. It operates the steam turbines using one or two of the split-stage actuators to run the inlet steam valves. The 9907-170 is able to operate the single extraction and admission of the steam turbines.

The 505E series is outfitted with menu-based software that is able to instruct the on-site engineers on programming control capabilities for a specific generator or drive application.

Physically, the 9907-170 is equipped with a 32-bit microprocessor unit to process the control capabilities, and then a series of printed circuit boards. Externally, there is a mounting setup attachment, which is able to be mounted within a system network panel. The other external feature is the operator control panel, embedded in the front-facing panel. This control panel displays two lines of text, at 24 characters each. The panel is built to configure the 9907-170 unit’s operational specifications.

Reviews For 9907-170
Internal Review

The 505LST is field configurable which allows a single design to be used in several different control applications. However, the recent market availability for these units has made replacement difficult. Typically, a repair service will be the best option. - AX techs

Repair Services For 9907-170

Type Lead Time Price Action
Repair Service 1-2 weeks $6485

Our highly skilled technicians can repair your 9907-170. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
