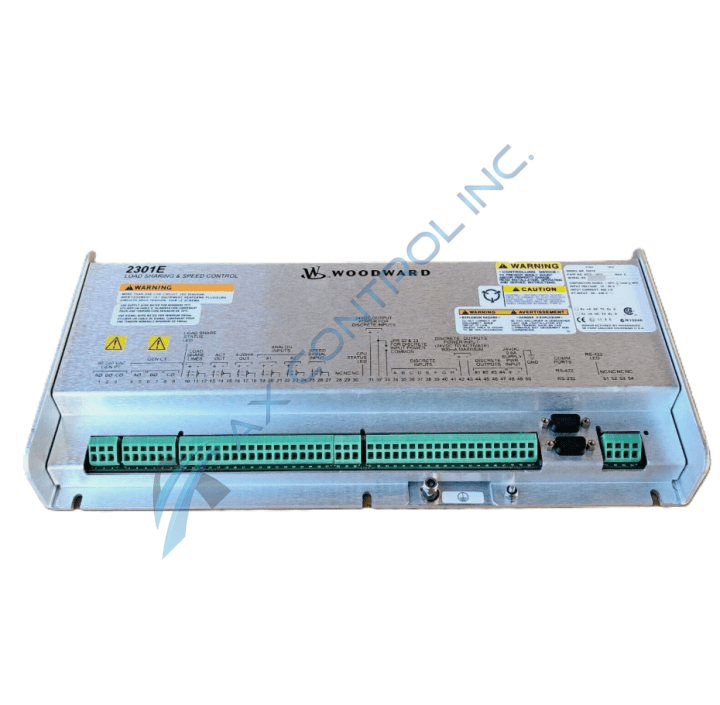

About the 8273-1011
This 8273-1011 Load Sharing/Speed Control Module, as you have most likely been able to guess, holds a critical role in both the Load Sharing and Speed Control processes of Woodward 2301E Series products. The 2301E Series that this specific 8273-1011 Load Sharing/Speed Control Module device has been assigned to is deemed that as the E at the end of its official title is telling of this 8273-1011 Load Sharing and Speed Control's engine-oriented status.
Individualized 8273-1011 Load Sharing/Speed Control Module Hardware
While the role of the 8273-1011 Device here within its greater Woodward-designated product series is of course valuable to understand, some of its individual hardware inclusions and certifications seem to stick out as well. To start off, this 8273-1011 Load Sharing/Speed Control Module is one of two products listed by its original manufacturer as a 2301E device. This 8273-1011 Load Sharing/Speed Control Module differentiates itself from the similarly-named 8273-1012 Load Sharing Module through its inability to accept a hazardous location or HazLoc placement. That's not to say that this 8273-1011 Load Sharing/Speed Control Module is a robust product; it is just voltage sensitive. With this in mind, some of the crucial voltage specifications of the 8273-1011 Load Sharing/Speed Control Module are its:
- 18 to 36 V Input Voltage Range (usually 24 V dc)
- PT Current Range of 90 to 240 V
Before attempting any installation or replacement of your original 8273-1011 Load Sharing/Speed Control Module, it is critical to realize that any software or programming for the 8273-1011 Load Sharing/Speed Control is done through the use of an external computer as dictated in the original manual materials attached here. This 8273-1011 device typically works in conjuction with a Magnetic Pickup speed sensing device within its greater 2301E Series functional assembly.
