Woodward Part 8273-507 2301D-EC Digital Load Sharing and Speed Control. 24 VDC input, with Modbus, rated for hazardous locations.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 8273-507 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8273-507 Technical Specifications

Enclosure Sheet Metal for Hazardous Locations
Input Voltage V24DC
Manufacturer Woodward
Operating Temperature –40 to +70 °C
Port RS-232/422 Com Port
Series 2301D-EC DLSC
Software Woodward Watch Window with Modbus Protocol
Storage Temperature –40 to +105 °C

Product Description

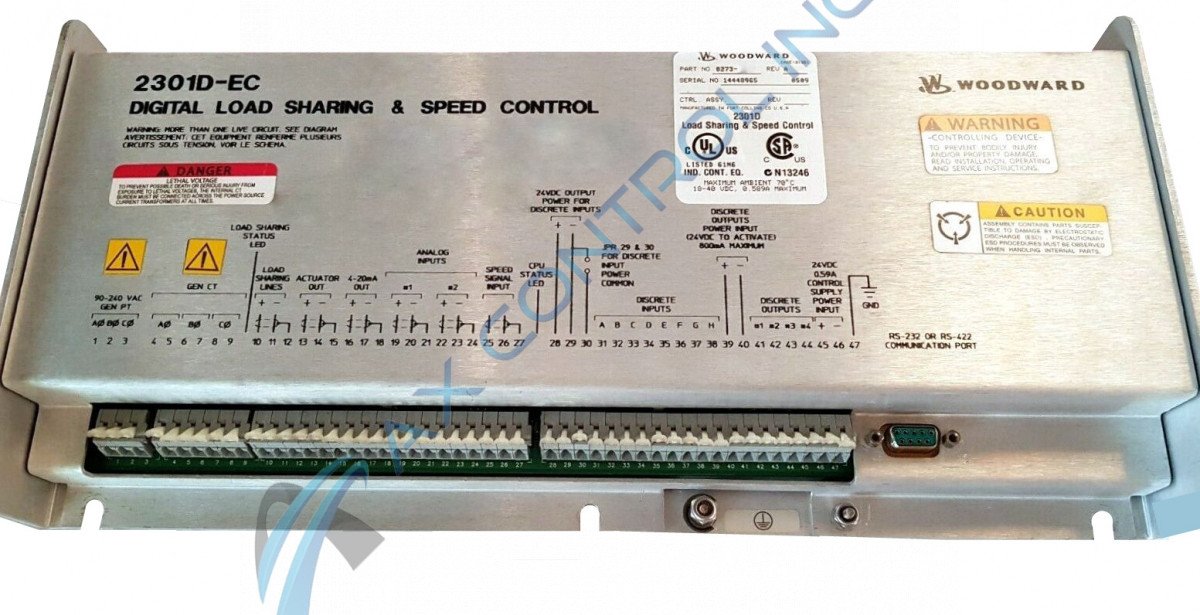

This device is a part of the Woodward Inc.-developed series of products. It is listed as the 2301D-EC Load Sharing and Speed Control module, a unit designed for generators that are powered by either diesel or gas engines. The 2301D-EC models are built with a microprocessor-based design, which runs the base functions of speed control and load sharing.

The 8273-507 is designed with an integrated Modbus module and rated to function in ordinary, temperate locations. The temperature extremes that this unit can withstand while remaining operational range between -40 to 70 degrees Celsius, or -40 to 158 degrees Fahrenheit. While in storage, the range is extended to -40 to 105 C, or -40 to 221 F.

The 8273-507 is designed to operate on a nominal intake of 24 volts of direct current, though the operational range is from 18 to 32 V/DC. The input supply current is nominally at 431 milliamperes, while the overall range is from 589 mA to 319.6 mA. The power consumption of this unit is at max, 20 watts while at optimal operating capacity. The 8273-507 model has a magnetic pickup rating between 100 to 25000 Hertz, at 300 to 3600 rotations per minute. The current transformer burden is less than 0.1 VA per phase.

AX Control Inc. buys, sells, and repairs the 8273-507 as a part of our used and new hardware, and each product available is covered by our comprehensive warranty.

Reviews For 8273-507
Internal Review

The processor inside the 2301D calculates the speed range to be used by entering the engine synchronous speed and a number of gear teeth. This configured speed sets the hardware-to-software scaling. - AX Technician
