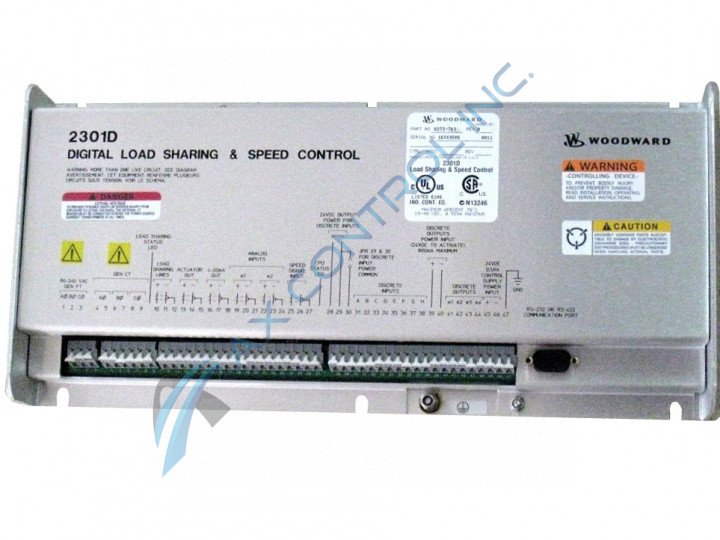

Woodward Model 8273-503 of the 2301D series is a microprocessor-based device that manages load sharing and speed of diesel or gaseous engines.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 8273-503 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 8273-503
  • SKU: 8273503WO
  • Manufacturer: Woodward
  • Series: 2301D Digital Load Sharing and Speed Controls

8273-503 Technical Specifications

Model Number 8273-503
Part Type Digital Load Sharing and Speed Control
Input Voltage DC 24V
Inputs 2 Configurable Analog Inputs, 8 Discrete (Switch) Inputs
Manufacturer Woodward
Operating Temperature +158 to -40 degrees F
Outputs 1 Configurable Analog Output, 4 Discrete (Relay Driver) Outputs
Software Woodward Watch Window Software on Desktop
Chassis Sheet Metal
Features RS-232 Port (9-Pin)

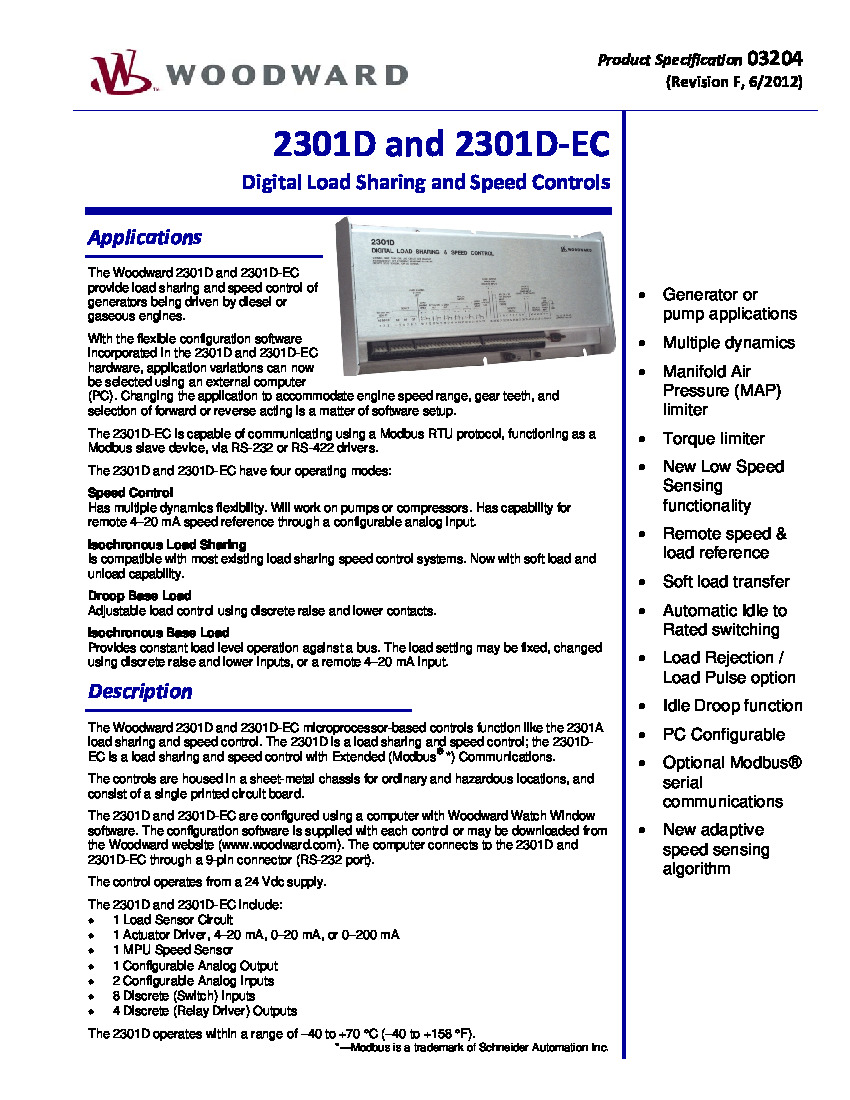

About the 8273-503

Produced by Woodward, the 8273-503 unit is a version of the 2301D Load Sharing and Speed Control Series. The 8273-503 is a microprocessor-based device that manages the speed and load sharing of generators that are driven by diesel or other gaseous engines. It includes highly flexible software that reduces the amount of auxiliary equipment required in the control system, reducing costs for users and allowing users to customize the device to their unique engine system. This particular version accepts a V DC input of twenty-four and is specially designed for operation in hazardous environments, meaning that it has additional protection against parameters such as temperature or humidity.

Able to operate in base load mode, droop mode, or isochronous mode, the 8273-503 is made even more flexible by its ability to function in any of these three user-set states. The isochronous mode is employed for constant prime mover speed, the droop mode is employed for speed control as a function of load, and the base load mode offers constant load level operation. The 8273-503 is also outfitted with a variety of inputs and outputs, including analog inputs, analog outputs, discrete relay driver outputs, and discrete switch inputs. The inputs and outputs are made through screwless, spring-actuated terminal blocks.

Frequently Asked Questions about 8273-503

What is the 8273-503?

Woodward Model 8273-503 of the 2301D series is a microprocessor-based device that manages load sharing and speed of diesel or gaseous engines. It works with a versatile software to ensure highly specifiable protection for each unique engine system.

What is the typical hardware of the 8273-503 device?

The hardware of the 8273-503, and 2301D series as a whole, includes a load sensor, an actuator driver, an MPU speed sensor, one configurable analog output, two configurable analog inputs, eight discrete inputs, and four configurable discrete outputs.

Reviews For 8273-503

Internal Review
(5.0)

Woodward's 8273-503 is housed in a durable sheet-metal chassis specially designed for hazardous locations, making it an excellent fit for users operating the device in harsh environments. In this regard, it is CSA Certified for Class I, Division 2, Groups A, B, C, D, T4. Nonetheless, users should do their best to ensure that the device receives minimal exposure to water and high levels of condensation. - AX Control Tech
