Woodward part 9907-014 series 2301A Load Sharing and Speed Control. Specifically, a speed control model, a cranking speed of 1.0 V no more than 30 Vrms.

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a 9907-014 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9907-014
  • SKU: WO-56957
  • Manufacturer: Woodward
  • Series: 2301A Electronic Load Sharing and Speed Controls

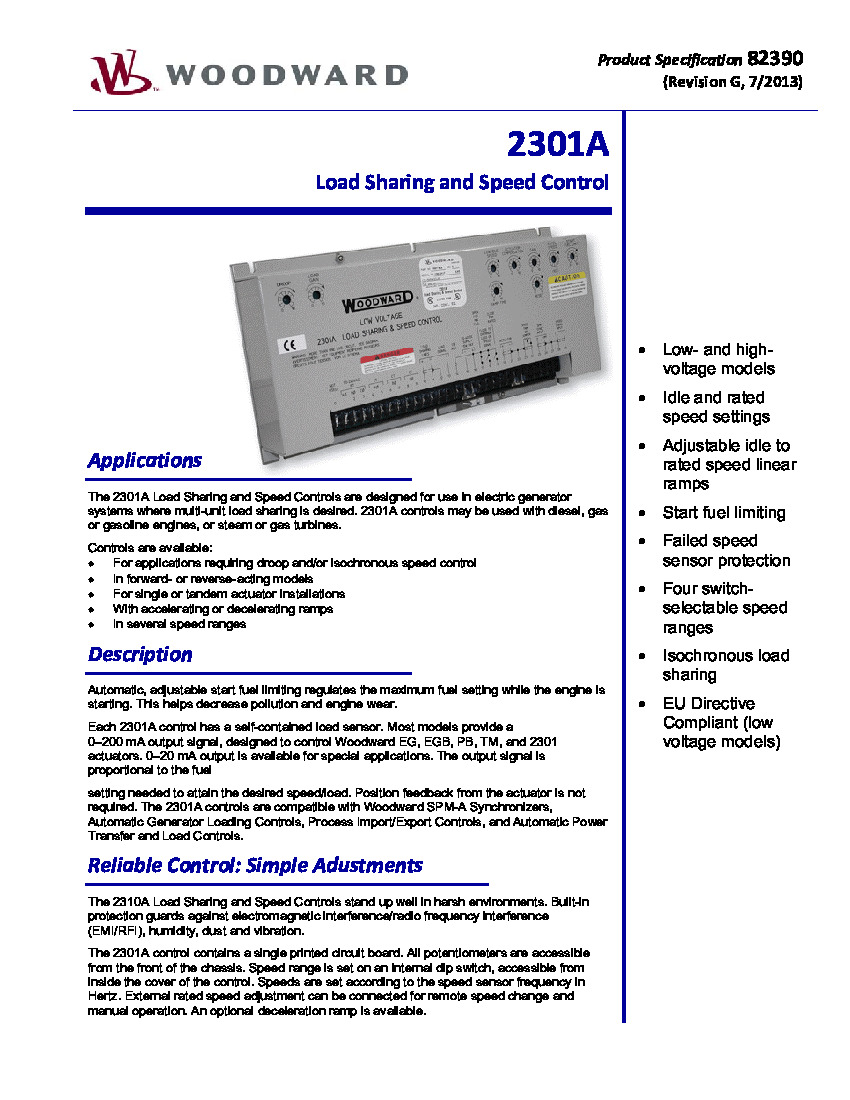

9907-014 Technical Specifications

Manufacturer Woodward
Series 2301A Electronic Load Sharing and Speed Controls
Part Number 9907-014
Chassis Sheet Metal
Dimensions 8.625in W x 7.25in H x 2.5in D
Operating Temperature -40 to +85 °C
Power Consumption </= 15 W
Standards CSA Certified
Storage Temperature -40 to +70 °C
Weight 2.5 lb

About the 9907-014

  • The 9907-014 is a speed control model from the Woodward 2301A series of Load Sharing and Speed controls.
  • It operates on a low-voltage scale with a power supply range of 20-40 VDC.
  • This specific model is designed solely as a speed control system, not for load sharing.

Installation and Wiring Guidelines
  • When using a magnetic pickup sensor, measure the voltage across terminals 28 and 29.
    • Minimum voltage at cranking speed: 1.0 Vrms.
    • Voltage at rated speed: 30 Vrms.
    • If voltage exceeds 30 Vrms, increase the speed sensor gap, ensuring 1.0 Vrms at cranking speed.
  • All cables connecting the control to the engine must be shielded, twisted-conductor pairs.
  • Do not solder the braided shield under any circumstances, as this can lead to injury and cable malfunction.
  • The control must be properly grounded by connecting the ground to the grounding lug on the chassis.

Reviews For 9907-014

Internal Review
(5.0)

The minimum voltage on your control will read at 1.0 V when at cranking speed, it will get up to no more than 30 Vrms when at rated speed. Check your manual to ensure that your control is acting as it should, and have a certified professional operating the control and engine. - AX Control Tech Team

Repair Services For 9907-014

Type Lead Time Price Action
Repair Service 1-2 weeks $1368

Our highly skilled technicians can repair your 9907-014. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
