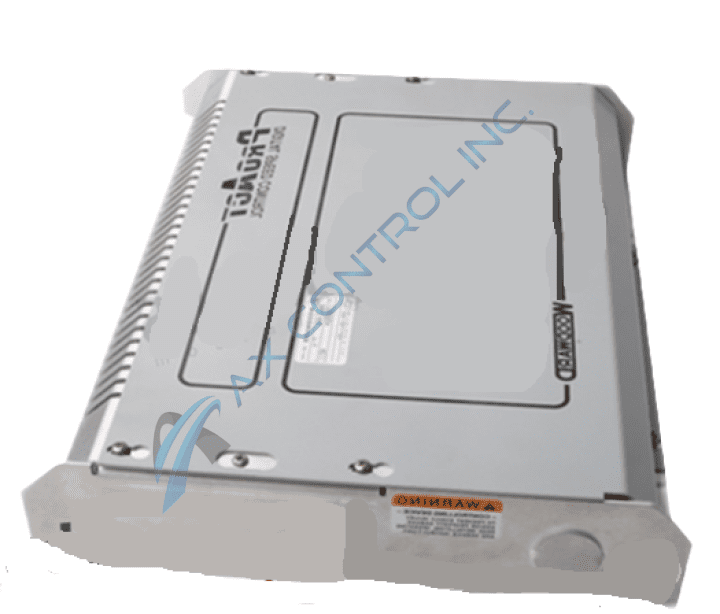

Module number 9905-134 is one of the electronic speed controls from the 2301A series produced by Woodward. This specific model is a reverse standard speed control. The 9905-134 unit will operate at a supply voltage of 88-131 Vac or 90-150 Vdc.

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a 9905-134 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 9905-134
  • SKU: 9905134WO
  • Manufacturer: Woodward
  • Series: 2301A Electronic Load Sharing and Speed Controls

9905-134 Technical Specifications

Part Number 9905-134
Series 2301A Electronic Load Sharing and Speed Control, LSSC
Manufacturer Woodward Inc, Fort Collins CO
Manual Woodward 82020C
Chassis Metal
Location Closed Industrial Control Cabinet
Operating Temperature –40 to +85 °C
Speed Setting terminals 23–24 jumpered, internally adjustable 100 Omega potentiometer allows external 0–10% speed trim
Synchronizer ±5 Vdc for speed change with Woodward SPMA synchronizer

About the 9905-134

Modeled by Woodward INC, the 9905-134 model is one of the electronic speed control units. This model is a reverse standard speed control in the 2301A series. This model has two supply voltages that can be used depending on the chosen application, 88-131 Vac or 90-150 Vdc. The speed control model can be used in isochronous mode with steam or gas turbine and or gas or diesel engines, often referred to as prime movers. The isochronous mode is often used to aid the prime mover in keeping consistent speed so long as the load is being provided;  isochronous mode can also be used with Woodward load sensors. The isochronous mode also features an external droop; the external droop is used for speed control as the load function when the attached prime mover is operating with two or more prime movers or on an infinite bus.

As a reverse-acting controller, the 9905-134 model can operate with a variety of Wodwawrd EGB actuators or governors. In a reverse-acting system, when the current of the actuator decreases, the system will call for more fuel; when the signal to the actuator is completely lost, the system will drive the actuator to full fuel; when this occurs, it allows the backup mechanical ball head governor to take complete control rather than shutting down the prime mover, which occurs in a forward/direct-acting system.

When wiring the 9905-134 model, all wirings are interchangeable between the direct-acting and reverse-acting controls. While the wiring is the same, it is required that changes be made to the attached printed circuit board if a control is needed to operate an actuator opposite the system. For more information on the 9905-134 control, refer to any available documentation for electronic speed controls or the 82020C Instruction and Operating Manual.

Frequently Asked Questions about 9905-134

What is the 9905-134 model?

The 9905-134 model is one of the 2301A Electronic Speed Sharing control units manufactured by Woodward. This model is one of the high-voltage reverse-acting controls, operating at 88-131 Vac or 90-150 Vdc. This model helps ensure that in case of loss of signal, rather than completely shutting down the attached prime mover, a backup ball-head governor will take control. This model is also used to ensure that as the actuator current decreases that more fuel is called for.
