Woodward Part 9905-035 Series 2301A Load Sharing and Speed Control. Offered as a high-voltage dual actuator model, set factory speed range 2000-600 Hz.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 9905-035 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

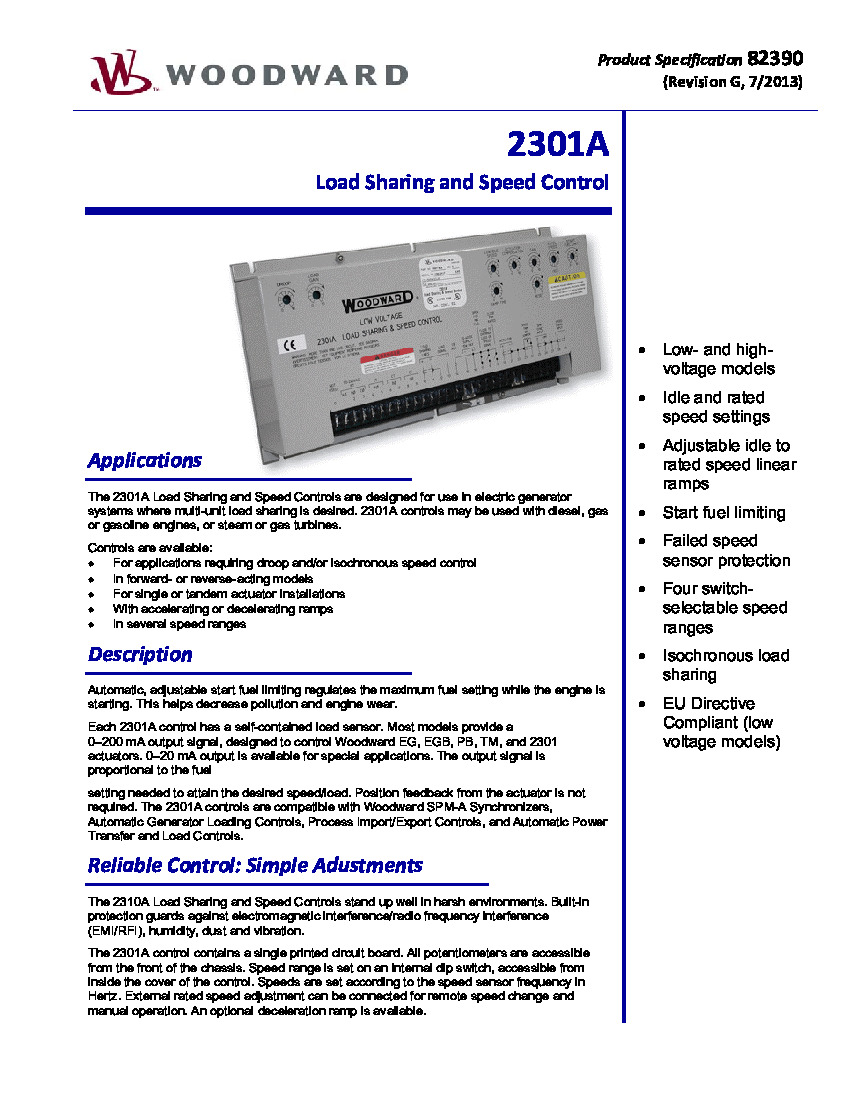

9905-035 Technical Specifications

Dimensions 387.35mm W x 180.975mm H x 63.5mm D
Manufacturer Woodward
Power Supply 90-150 Vdc
Rated Speed Adjustment 11,450 Hz
Series 2301A
Weight 1.758 kg

Product Description

Woodward INCs 2301A series is available at AX Control; the 9905-035 control unit is a reverse acting high voltage Load Sharing and Speed Control model with a dual actuator, the actuator current on this device is 0-200 mA. The actuator is connected to the control through terminals twenty and twenty-one when connecting the actuator to the control verify that the negative lead is connected to terminal twenty, and the positive lead is connected to terminal twenty-one; if you wish to connect two actuators the first actuator must be connected through terminal twenty-one and the second actuator must be connected through terminal twenty.

If after you have started the prime mover there is a problem with the fuel limit and must be adjusted document the voltage at the actuator terminals, proceed to shut down the engine, and activate the failed speed signal override by closing the contact that is associated with the override contact. Restart the engine and observe how long it takes for the engine to start, as well as the overshoot of the speed setting. You can also adjust the start fuel limit to optimize the start time of the engine.

The minimum fuel contact of this unit is connected through terminal seventeen, this contact should specifically be used when the failed speed signal occurs; the minimum fuel contact should never be used as an emergency stop sequence of the engine. When it pertains to the minimum fuel on reverse acting models if the actuator current is 20 to 160 mA the actuator current will be greater than 180 mA; if the actuator current reads 40 to 320 mA the current for minimum fuel should be greater than 360mA.

Reviews For 9905-035
Internal Review

Performs exceedingly well with other controls in this series, if using two or more controls in this series it will not diminish any of the functions between the two controls. Examine the control thoroughly before starting the engine. - AX Control Tech Team

Repair Services For 9905-035

Type Lead Time Price Action
Repair Service 1-2 weeks $1323

Our highly skilled technicians can repair your 9905-035. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
