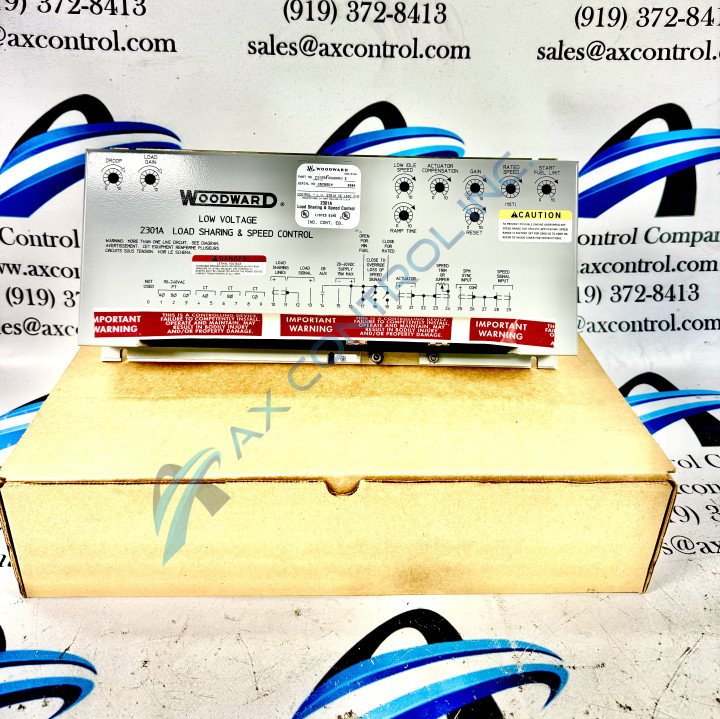

8272-608

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
Woodward part 8272-608 series 2301A Load Sharing and Speed Control. Power does not need to be from a distribution point, part is CSA certified, and the primary speed control is N2.

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More

Sell Surplus: Have a 8272-608 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

8272-608 Technical Specifications

Enclosure Type Sheet Metal
Load Sharing 0-6 Vdc
Manufacturer Woodward
Model Number 8272-608
Operating Temperature -40-185 F
Power Consumption </= to 15 W nominal
Rated Speed 11,450 Hz
Standards CSA Certified

Product Description

AX Control Inc buys, sells, and repairs Woodward Inc's 8272-608 unit from our brand new surplus or reconditioned second-hand inventory. The 8272-608 model is from Woodward Inc. series 2301A Load Sharing and Speed controls. The unique controls that come with this model are used to provide load sharing and speed control for installation with driving engine loads which are isolated through torque converters and split shaft gas turbines.

Installations producing an electrical power output may use a 2301A speed control and a 2301A speed and load control. The use of a series connection between the two-speed controls provides a low-signal-select feature; the primary control is the speed control on the N2. Speed control on the gas generator or engine functions as a limiter which prevents the unit from calling for excess speed.

The use of power generation applications is typically restricted to gas turbines. Due to the wide assortment of auxiliary power features available with 2301A Load Sharing and Speed controls this unit is the standard selection for the control N2 turbine. The 8272-608 speed control is used with the N1 gas turbine and a 8272-609 is used for the N2 turbine. Usage of load sharing and speed control 8272-608 allows automatic generator loading and automatic synchronizing.

The 10 to 40 Vdc power supply is provided through wires dedicated to the governors. Under no circumstances should power be drawn from a distribution point; a single power supply may be used for both controls. If a battery is being used as an operating power source, an alternator or other battery charging device is absolutely necessary to maintain stable voltage.

For the purchase or repair of this unit contact AX Control inc.

Reviews For 8272-608
Internal Review

The LSSC 8272-608 control performed above expectations, it performs as a forward-acting or reverse-acting model. Be sure that before installation, you have read the manual thoroughly to allow for proper function. - AX Control Tech Team
