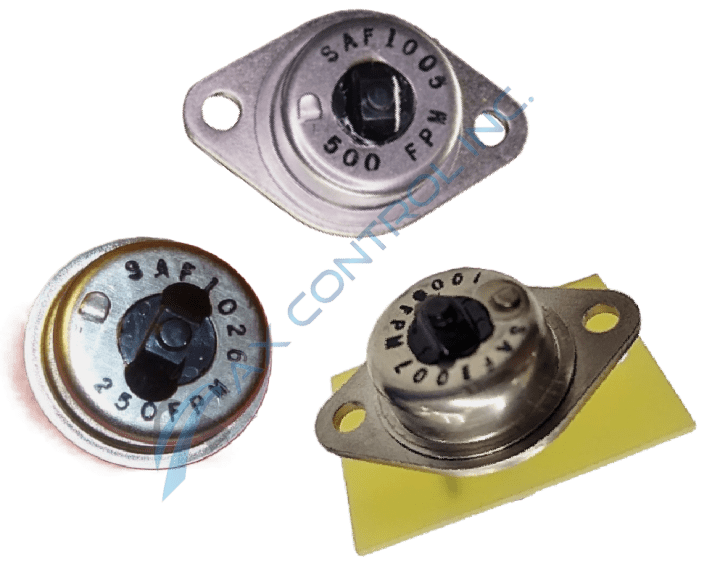

About the SAF1008
The SAF1008 +5 VDC Air Flow Sensor manufactured for Warren's SAF Air Flow Velocity Switch Series comes with a series of identified general and driving applications. These include:
- logic circuit driving
- audible/optical alarm driving
- magnetic relay driving
- high-end computer systems and peripherals
- large power supplies
- HVAC equipment
- Medical diagnostic systems
Generally, in terms of its standard applications, the thermistor-based SAF1008 +5 VDC Air Flow Sensor here can be applied to any process needing targeted air cooling.
SAF1008 +5 VDC Air Flow Sensor Specifications
The SAF1008 +5 VDC Air Flow Sensor here comes with an important set of specifications in its original instructional manual. These include its:
- +5 VDC (±5%) input voltage
- ½ W max power dissipation
- open collection solid-state output
- 50 to 1500 F.P.M. sensing range
- +10°C to +60°C sensing tolerance
