Home Warren LS and FS Electro-Mechanical Flow Sensors LS-6027

❮

❯

About | Product Specifications | FAQs

LS-6027

4.67 (3)
Click a star to rate this product

4.67 (3)
Click a star to rate this product

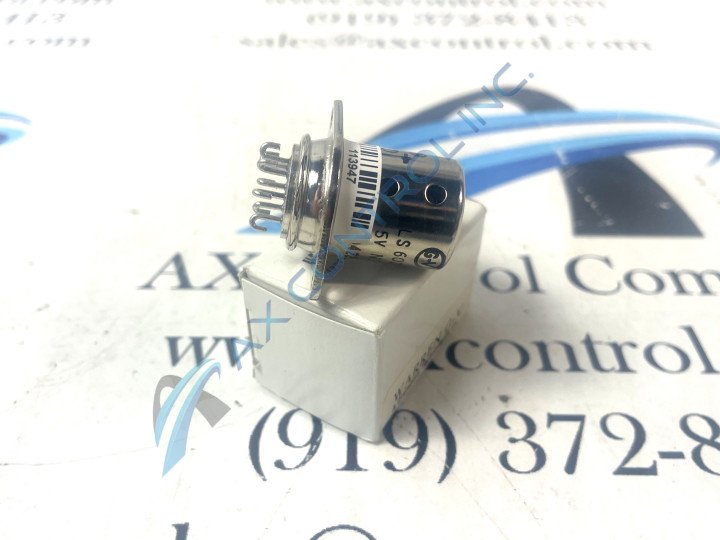

The LS-6027 Flow Sensor Relay made for Warren's LS and FS Electro-Mechanical Flow Sensors Series

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a LS-6027 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: LS-6027
SKU: WA-59492

Manufacturer: Warren
Series: LS and FS Electro-Mechanical Flow Sensors

Description
Repairs
Warranty

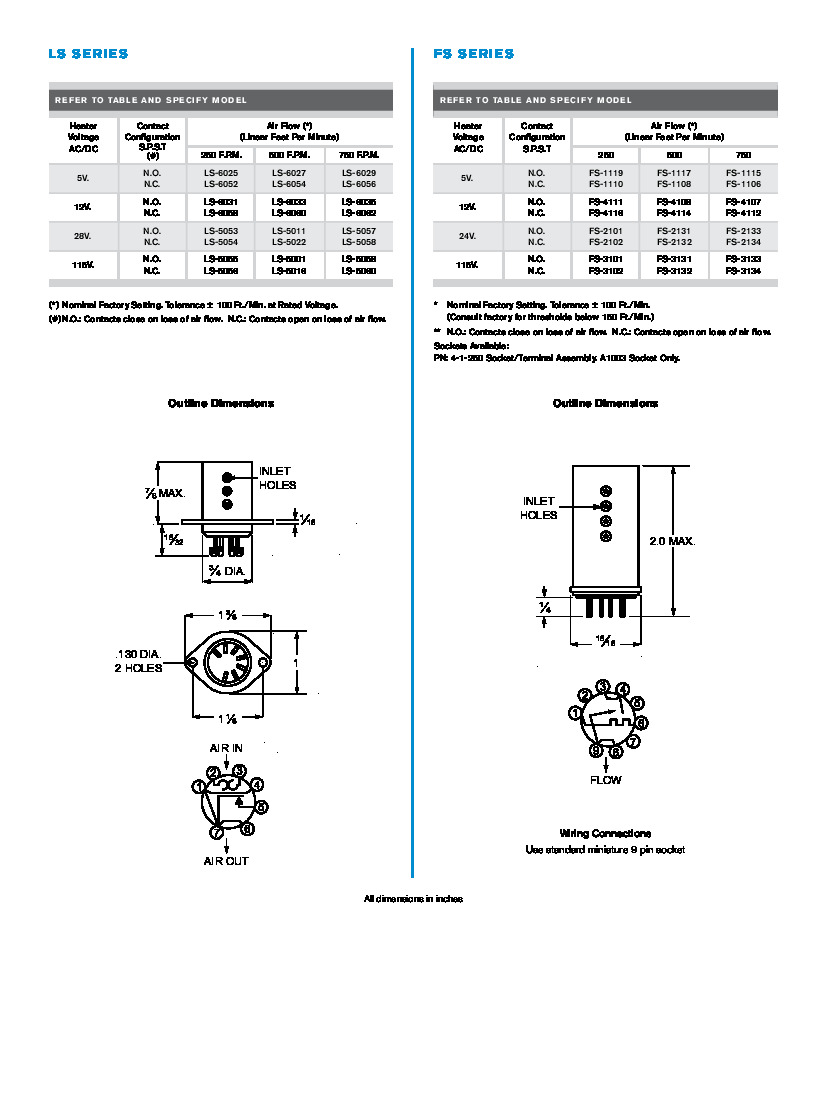

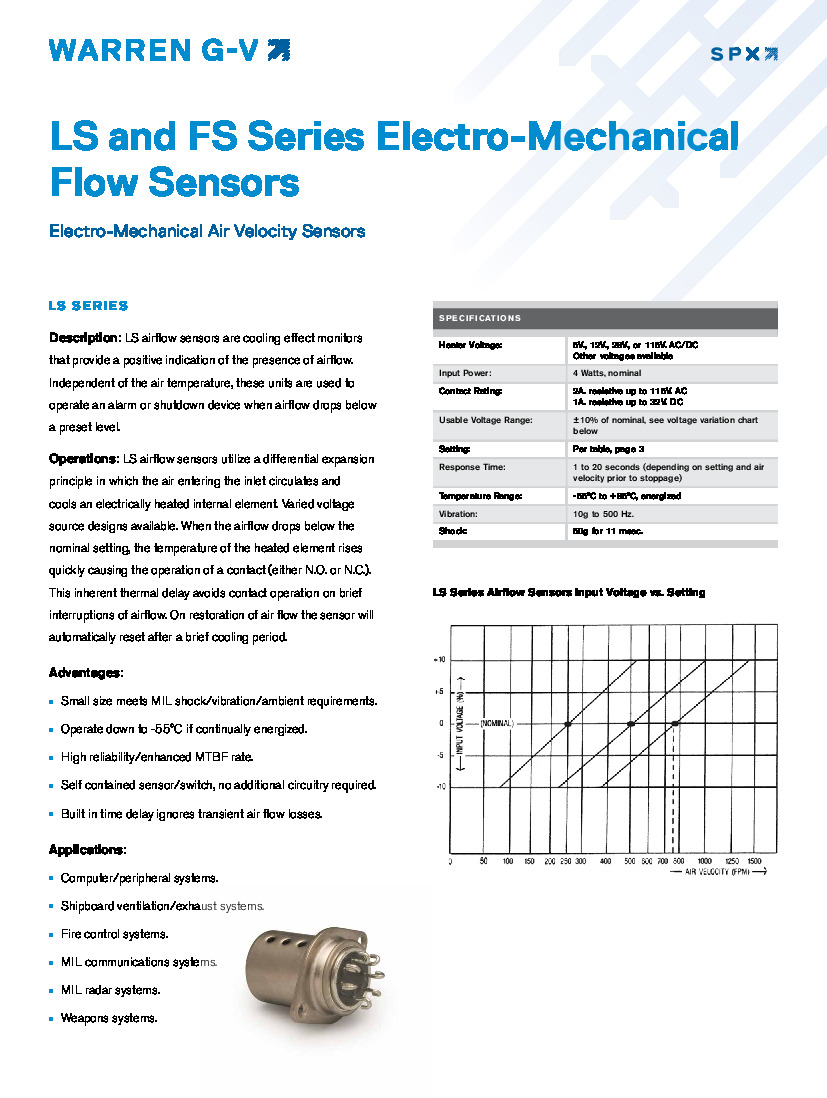

Manuals

LS-6027 Technical Specifications

Part Number	LS-6027
Functional Description	Flow Sensor Relay
Series	LS and FS Electro-Mechanical Flow Sensors
Manufacturer	Warren
Contact Configuration S.P.S.T	N.O.
Input Power	2.5 Watts
Usable Voltage	±10% (of nominal)
Response Time	1 to 20 seconds
Temperature Range	0°C to 85°C
Heater Voltage	5V
Mounting Holes	2 Holes

About the LS-6027

The LS-6027 Flow Sensor Relay made for Warren's LS and FS Electro-Mechanical Flow Sensors Series ships with a number of unique advantages that are offered to its given its more specific status as an LS Series unit. Some of these advantages are the unit's:

Compact size
MIL shock/vibration/ambient requirement adherence
Enhanced MTBF rate
High reliability
-55°C minimum operation temperature

The LS-6027 model of air flow sensor here is described as self-contained as well, which means that it does not need to accept any exterior circuitry for normal function.

LS-6027 Applications

The LS-6027 Flow Sensor Relay has a series of standard applications important to consider before a purchase. Some of these are its:

Computer systems application
Peripheral computer systems application
MIL radar and communications applications
Fire control applications
Weapons systems application

In addition to these listed applications, this LS-6027 Air Flow Sensor is additionally able to be installed to run a number of sophisticated shipboard processes, such as shipboard ventilation and exhaust systems.

Frequently Asked Questions about LS-6027

Does the LS-6027 have any time delay inherent?

Yes. This LS-6027 air flow sensor has a built-in time delay to ignore insignificant transient air losses.

Is the heater voltage for the LS-6027 Sensor customizable?

Yes. This LS-6027 sensor has selectable heater voltages of 5V., 12V., 28V., or 115V. AC/DC. Other voltages are additionally available.

Reviews For LS-6027

Internal Review

(5.0)

Unlike its FS Series counterparts, the LS-6027 air flow sensor has not been designed for socket mounting. Instead, it was meant to be mounted upon a base circuit board directly, causing less than an inch of necessary clearance. The LS-6027's air flow is 500 F.P.M. - AX Control Lead Technician

Repair Services For LS-6027

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	Ask	Get Quote

Our highly skilled technicians can repair your LS-6027. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty
