What is the IP rating for this G15C1100 model?

This G15C1100 interface has an IP rating of IP66.

Does this G15C1100 make use of a chassis?

Yes. In fact, the chassis mounting strategy is how this G15C1100 HMI should be installed.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Red Lion Graphite HMIs G15C1100

❮

❯

About | Product Specifications | FAQs

G15C1100

4.60 (5)
Click a star to rate this product

4.60 (5)
Click a star to rate this product

The Red Lion Graphite G15C1100 15" Color LED Display

Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a G15C1100 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: G15C1100
SKU: RL-57459

Manufacturer: Red Lion
Series: Graphite HMIs

Description
Repairs
Warranty

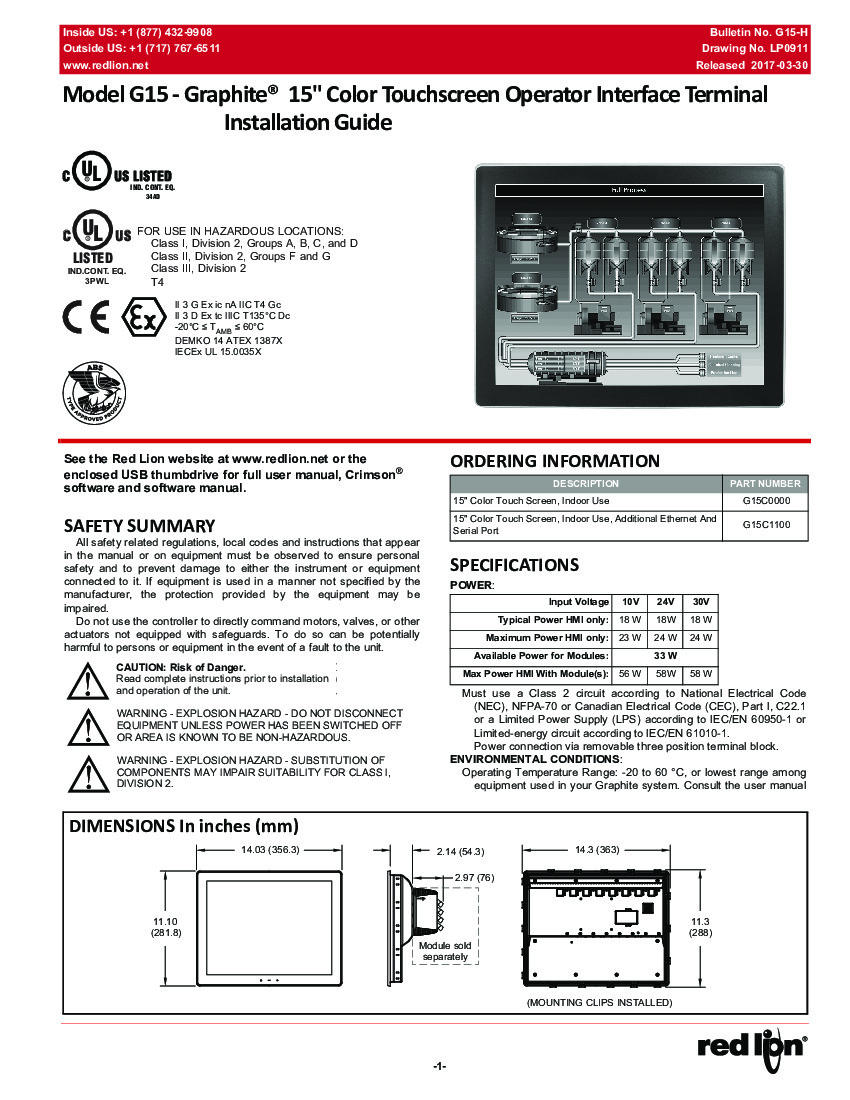

Manuals

G15C1100 Technical Specifications

Brightness	400 cd/m Squared
External Dimensions (in)	W14.03 x H11.10 x D2.14
Features	Additional Ethernet and Serial Port
Max Power HMI With Module	56W or 58W
Maximum Power HMI only	23W or 24W
Operational Display Time	70,000 Continuous Hours
Weight Before Packaging	7.73 lb. (3.5 Kg)

About the G15C1100

A 15-inch touchscreen from Red Lion is model G15C1100. This model is in the Graphite Series and part of the HMI family. The touchscreen uses XGA color technology and has a resolution of 1024 x 768 pixels. It can handle up to 20 protocol conversions and is equipped with an OPC UA client driver and OPC UA historical access. It is designed for indoor use, with 70,000 hours or more of backlight service life. The IP rating for this model's front face is IP66. Model G15C1100 has a built-in web server, as well as built-in MQTT connectors. These connectors include Google Cloud and Amazon AWS. The supply voltage for this product is 24 VDC, and it can be operated in temperatures ranging from -20 to 60 degrees Celsius. Additional specifications for model G15C1100 include;

TFT LCD display technology
SD slot for memory and data storage
Crimson 3.0 software
USB synchronization
Varied plug-in modules to expand the product’s capabilities
The ability to work in hazardous conditions is classified as UL Class 1, Division 2

Model G15C1100 has been discontinued by Red Lion and must be purchased through sources other than the manufacturer. This product can be found through AX Control. AX Control can buy, sell, and repair these touchscreens.

Reviews For G15C1100

Internal Review

(5.0)

If your company is in need of Crimson Software, the G15C1100 module is objectively the best option for your business. Due to the unit's screen size and expansion slots, there are little, if no limiting factors. One limiting factor to be aware of, however, are this G15C1100's basic device temperature minimums and maximums at -20 C and 60 C respectively. - AX Control Lead Technician

Repair Services For G15C1100

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$6875

Our highly skilled technicians can repair your G15C1100. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
