G12S1100

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (8)
  • Click a star to rate this product

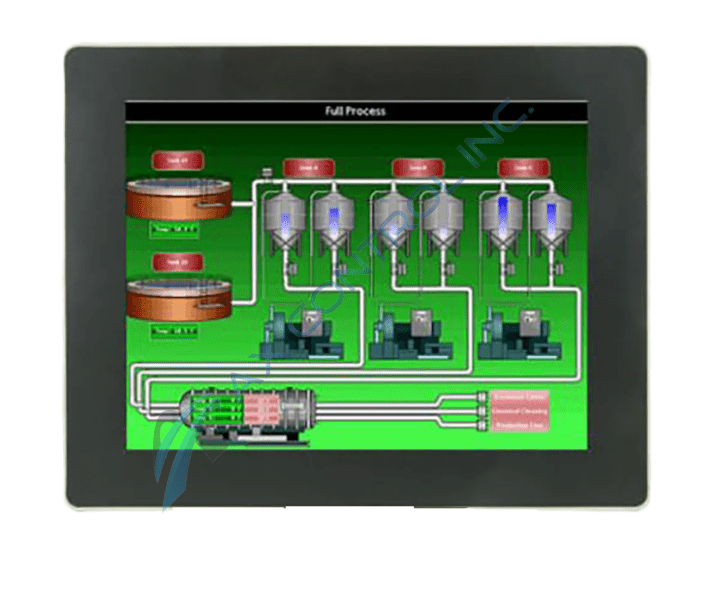

The Red Lion Graphite G12S1100 12" Operator Interface Terminal
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Sell Surplus: Have a G12S1100 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: G12S1100
  • SKU: RL-57457
  • Manufacturer: Red Lion
  • Series: Graphite HMIs

G12S1100 Technical Specifications

Brightness 1600 cd/m2, 100,000 Operating Hours
Display Resolution WXGA 1280 x 800, 16M Colors
External Dimensions 12.10" x 8.20" x 2.06" (307.3 x 208.3 x 52.4 mm)
Features Replaceable Lithium Coin Cell Battery
Maximum Power HMI only 22W or 23W
Operating Temperature -4 to +140°F (-20 to 60°C)
Storage Temperature -4 to +158°F (-20 to 70°C)
Weight Before Packaging 5.06 lb. (2.29 Kg)

About the G12S1100

Part of the Graphite Series from Red Lion is model G12S1100. This outdoor touchscreen device is 12 inches wide and utilizes WXGA color display technology. It has a resolution of 1280 x 800 pixels and is equipped with OPC UA historical access and an OPC UA client driver. Model G12S1100 also comes with built-in MQTT connectors such as Sparkplug, Google Cloud, Amazon AWS, and Microsoft Azure. This product also has store and forward buffering used for cloud connectors. It has two Ethernet ports, four serial communication ports, two USB host ports, and one Type B USB port. Additional specifications for model G12S1100 include;

  • 100,000 hours of backlight service life
  • An IP rating of IP66
  • Capability to run 20 protocol conversions at one time
  • IEC 61131 control capabilities
  • Web-based monitoring.
  • A NEMA rating of NEMA 4X
  • The ability to operate in temperatures ranging from -20 to 60 degrees Celsius
  • Panel mounting capabilities

The craft-aluminum design of model G12S1100 makes it great for outdoor mounting purposes. While this product has been discontinued by Red Lion, it can be found through sources like AX Control. In addition to being able to buy and sell these touchscreen modules, AX Control can also repair these devices.

Frequently Asked Questions about G12S1100

What is the specific NEMA Rating for this Red Lion Graphite G12S1100 12" Operator Interface Terminal?

This G12S Terminal has an official 4X NEMA Rating.

Which part of the Red Lion Graphite G12S1100 12" Operator Interface Terminal's catalog number designates screen size?

The Red Lion Graphite G12S1100 12" Operator Interface Terminal's display size is encouraged by the insertion of the simple "12" value in its part number.

Reviews For G12S1100

Internal Review
(5.0)

The G12S1100 offers the added functionality and expansion of an extra ethernet port and serial port. Additionally, our surplus of stock allows us to supply you with new or used units, as well as fast and inexpensive repair services (all with our complimentary 3-year warranty). Buy new or reconditioned Red Lion Graphite G12S1100 12" Operator Interface Terminal with confidence here. - AX Control Lead Technician
