How many total ports are available to the G12C0000's modular assembly?

In total, this G12C0000 HMI possesses seven total ports for connection.

What is the G12C0000 Operator Interface Terminal's depth?

This G12C0000 has a depth of 2.06 inches to be exact.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home Red Lion Graphite HMIs G12C0000

❮

❯

About | Product Specifications | FAQs

G12C0000

4.75 (4)
Click a star to rate this product

4.75 (4)
Click a star to rate this product

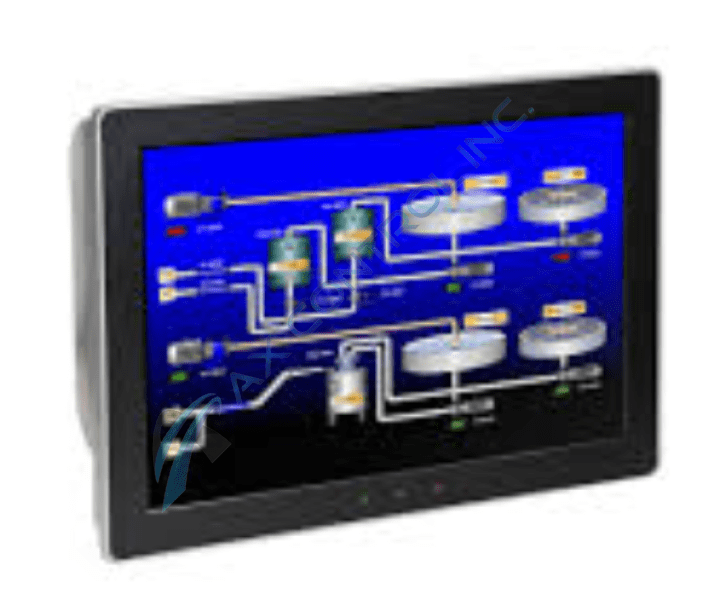

The Red Lion Graphite G12C0000 12" Color Operator Interface Terminal Module

Request a Quote Request Repair

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a G12C0000 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: G12C0000
SKU: RL-57455

Manufacturer: Red Lion
Series: Graphite HMIs

Description
Repairs
Warranty
Manuals

G12C0000 Technical Specifications

Part / Model Number	G12C0000
Product Family	Graphite HMIs
Manufacturer	Red Lion
Features	Crimson 3.1 Software
Weight	5.06 lb. (2.29 Kg)
Power Supply Rating	Input 10-30 VDC
Storage Temperature Rating	-20 to 70 °C
Maximum Power HMI only	19W or 20W
Dimensions (mm)	W307.3 x H208.3 x D52.4
Display Operating Temperature	-20 to 60 °C

About the G12C0000

Model G12C0000 is an indoor touchscreen from the Red Lion Graphite Series. It is from the HMI family and has a display size of twelve inches. This touchscreen has:

a display resolution of 1280 x 800 pixels
a backlight service life of 70,000 hours
possible operation and storage in temperatures between -20 and 60 degrees Celsius
an IP rating of IP66
a voltage rating of 24 VDC
Crimson 3.0 software
multiple built-in MQTT connectors
up to 20 protocol conversions at once
a cast-aluminum design for outdoor mounting

Some of the MQTT connectors for this model include Amazon AWS, Microsoft Azure, Google Cloud, and Inductive Automation Ignition! Model G12C0000 has a total of 8 connection ports, including two base USB ports and two Ethernet ports. It is equipped with an OPC UA client driver and OPC UA historical access, as well as forward and store buffering for cloud connections. The touchscreen model G12C0000 has been discontinued by Red Lion but is available through AX Control and other sources. AX Control will repair these products, as well as buy and sell them.]

Reviews For G12C0000

Internal Review

(5.0)

The G12C0000 HMI is a great option for companies trying to save a couple of bucks while still receiving a larger display. While any units bought from us may not have up-to-date software, updates are easily available on Red Lion's website. - AX Control Lead Technician

Repair Services For G12C0000

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$5999

Our highly skilled technicians can repair your G12C0000. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty
