Graphite HMI Expansion Module GMSG10S0 is manufactured by Red Lion, this specific module is under the Data Acquisition Modules. The controller has one input, which is a strain gage input, and the model also has three SSR control outputs.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a GMSG10S0 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GMSG10S0
  • SKU: GMSG10S0RL
  • Manufacturer: Red Lion
  • Series: Graphite HMI Expansion Modules

GMSG10S0

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
Graphite HMI Expansion Module GMSG10S0 is manufactured by Red Lion, this specific module is under the Data Acquisition Modules. The controller has one input, which is a strain gage input, and the model also has three SSR control outputs.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a GMSG10S0 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GMSG10S0
  • SKU: GMSG10S0RL
  • Manufacturer: Red Lion
  • Series: Graphite HMI Expansion Modules

GMSG10S0 Technical Specifications

Analog Outputs +/- 0-10 V and/or 0/4 to 20 mA
Control Outputs 3, SSR
Input Type ±200 mV, ±20 mV, and/or ±33 mV
Inputs One Strain Gage
Manufacturer Red Lion
Module Type Data Acquisition Module
Part Number GMSG10S0
Weight Less than 1 pound

Product Description

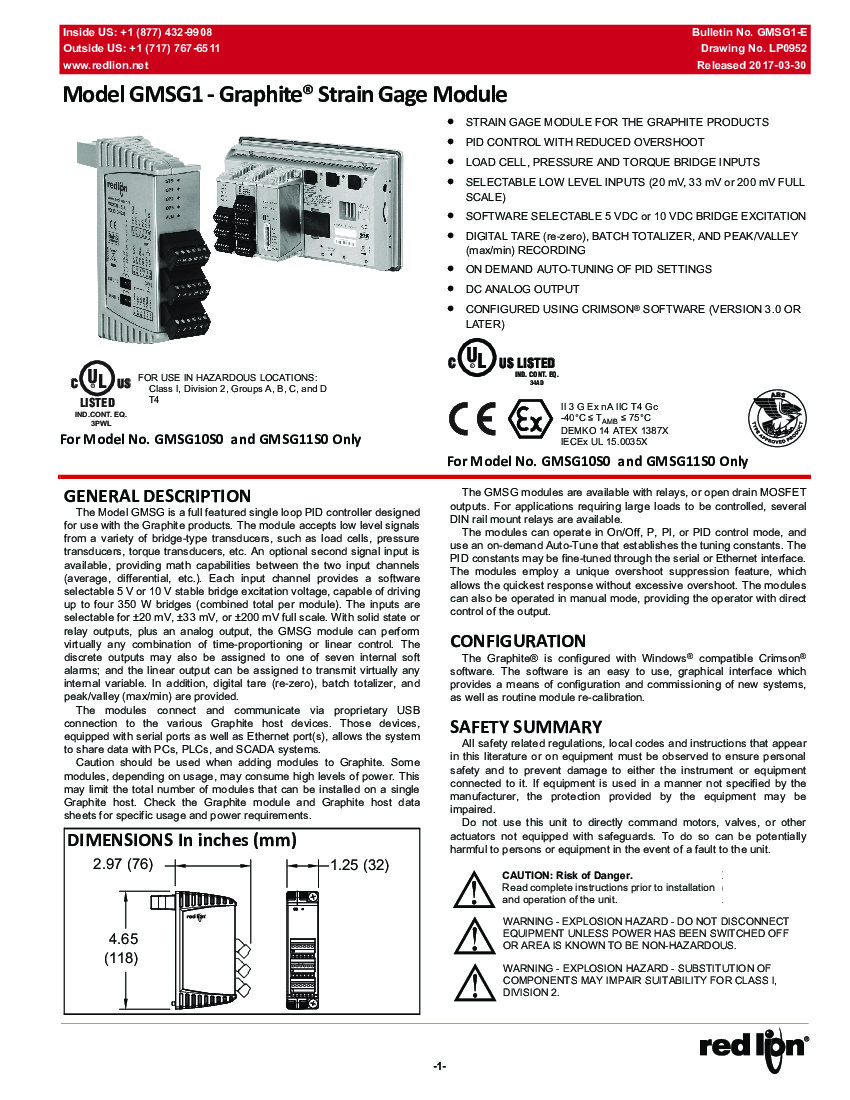

The GMSG10S0 controller is part of the Graphite HMI Expansion Modules manufactured by Red Lion. This controller has a singular strain gage input and an input type of ±200 mV, ±33 mV, or ±20 mV. According to the Graphite HMI Brochure, attached above under the manuals tab, this module is labeled as a Data Acquisition Module.

Compared to other Data Acquisition Modules in this series this controller has fewer SSR control outputs, this module only has three compared to other modules which can have up to six. Note the analog outputs of this controller are in the range of zero/four to twenty milliamperes or ten volts which can be both positive or negative.

As the GMSG10S0 controller is one of the Data Acquisition Modules it can support onboard input-output points, depending on the size of the model the module can support forty or sixty-four input-output points. Due to the advanced software that this module features this module can access files remotely and log many data points. If the module has a fault and the user is not able to be near the module, the module does have the capability to send SMS and or email messages to alert to the fault.

One feature that is consistent within the Graphite HMI Expansion modules including the GMSG10S0 is the Crimson software. The Crimson software on this model allows for easy-use programming tools, the software also allows for different programming languages which include but are not limited to function block and ladder logic. Other programming languages can be found in the Graphite HMI Brochure.

If you would like to purchase this module please reach out to AX Control’s sales department by phone or email for more information regarding shipping times and pricing.

Reviews For GMSG10S0
Internal Review

This controller has three SSR control outputs as well as one strain gage input. The GMSG10S0 controller has the capability to use multiple programmable languages, refer to the Graphite HMI Brochure for the potential programmable languages. - AX Control Technician

Repair Services For GMSG10S0

Type Lead Time Price Action
Repair Service 1-2 weeks $985

Our highly skilled technicians can repair your GMSG10S0. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty
