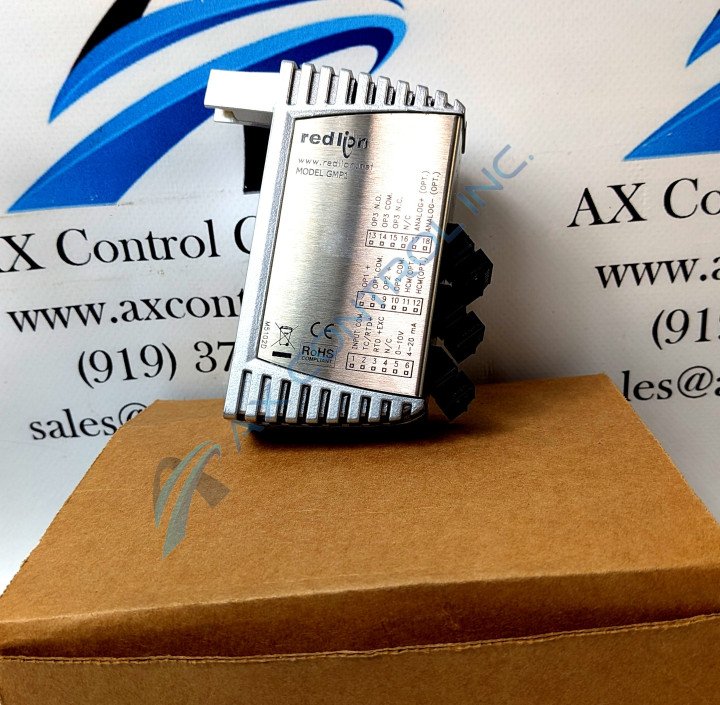

The Red Lion Graphite Expansion Module GMP1RA00 is a Dedicated Single-Loop PID Controller Module designed specifically with Reduced Overshoot and On Demand Auto-Tuning.
Request a Quote Request Repair
Request a Quote Request Repair

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a GMP1RA00 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GMP1RA00
  • SKU: GMP1RA00RL
  • Manufacturer: Red Lion
  • Series: Graphite HMI Expansion Modules

GMP1RA00 Technical Specifications

Part Number GMP1RA00
Series Graphite HMI Expansion Modules
Manufacturer Red Lion
Software Type Crimson 3.0 or later
Dimensions (mm) H118 x W32 x D76
Suitable for Hazardous Location No
Operating Temperature Range -40 to 70 °C
Connection Method to Host Proprietary USB
Altitude Limit 2000 m
Analog Output 10 VDC or 20 mA (Independently Configurable)

Product Description

The Red Lion Graphite Expansion Module GMP1RA00 is a dedicated single-loop PID controller module designed specifically for use with the Graphite Series of HMIs. It is a fully isolated design that provides reliable operation in a wide range of applications.

One of the key features of the GMP1RA00 is its ability to provide precise PID control with reduced overshoot. This makes it ideal for applications where precise control is essential, such as in temperature and humidity control systems. The module also includes an on-demand auto-tuning feature, which allows users to easily optimize the PID settings for the specific application.

In terms of outputs, the GMP1RA00 is equipped with a relay (form A) output, which can be used to control a variety of devices and systems. It also has a DC analog output that can be configured for either 10 V or 20 mA, depending on the needs of the application. This output can be used to provide a continuous signal that can be used to control other devices or monitor the process.

Installation of the GMP1RA00 is easy and straightforward. It can be connected to a Graphite Host HMI system using the proprietary expansion port on the back of the Graphite Host. Once connected, the module can be configured using the Graphite Host HMI's Crimson software. This allows operators to easily set the input type, control outputs, and other key parameters.

Frequently Asked Questions about GMP1RA00

What model type is the GMP1RA00 unit?

The GMP1RA00 unit is a Graphite HMI Expansion Module. It was designed by Red Lion as a single-loop controller. This model also falls under the branch of Graphite PID Modules. It can be used with analog and relay outputs. This model has an expansion where an additional analog output can be added.

There are two groups of GMPID models; what are the differences between the two?

The main difference between the GMP1RA00 model and the GMP2 model is the loop type. The GMP2 model is a dual-loop controller, and the GMP1RA00 model is a single-loop controller. Another difference between the two is that the GMP1RA00 model has a small expansion of the optional analog output. Other than these differences the two models are essentially the same.

What can the analog output option on the GMP1RA00 model do?

The analog output option on this model can be configured or scaled for re-transmission or control purposes. There are two versions of the output, either 10 V or 20 mA. For more information on how the analog output will work in conjunction with this unit, refer to the Model GMPID Installation Guide attached above.
