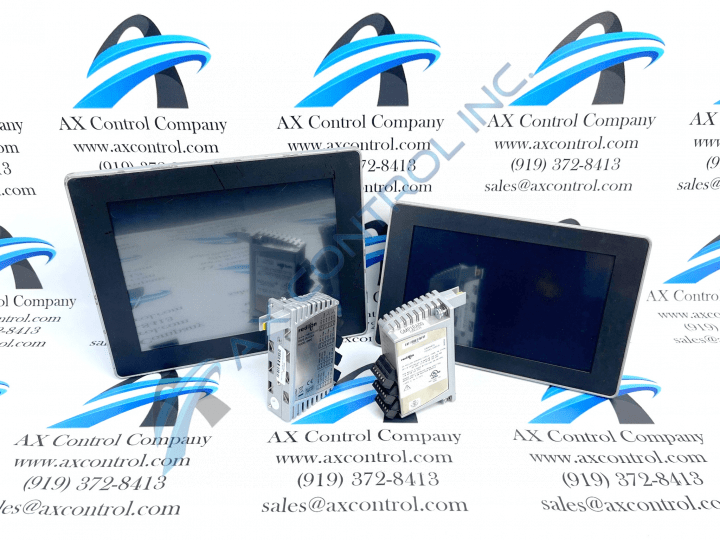

The Red Lion Graphite GMINI800 is a flexible expansion module that allows users to easily add additional I/O capabilities to their Graphite control system. It features 8 digital input channels and 8 digital output channels.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a GMINI800 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GMINI800
  • SKU: GMINI800RL
  • Manufacturer: Red Lion
  • Series: Graphite HMI Expansion Modules

GMINI800

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 5.00 (2)
  • Click a star to rate this product
The Red Lion Graphite GMINI800 is a flexible expansion module that allows users to easily add additional I/O capabilities to their Graphite control system. It features 8 digital input channels and 8 digital output channels.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a GMINI800 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GMINI800
  • SKU: GMINI800RL
  • Manufacturer: Red Lion
  • Series: Graphite HMI Expansion Modules

GMINI800 Technical Specifications

Common Mode Rejection >110 dB, 50/60 Hz
Input Impedance 10 Ohms
Isolation Level 500 Vrms @ 50/60 Hz for 1 minute
Max Power (1 Module Only) 1.4W
Operating Temperature Standards -40 to 75 °C
Storage Temperature Standards -40 to +85 °C
Weight 8 oz (224 g)

Product Description

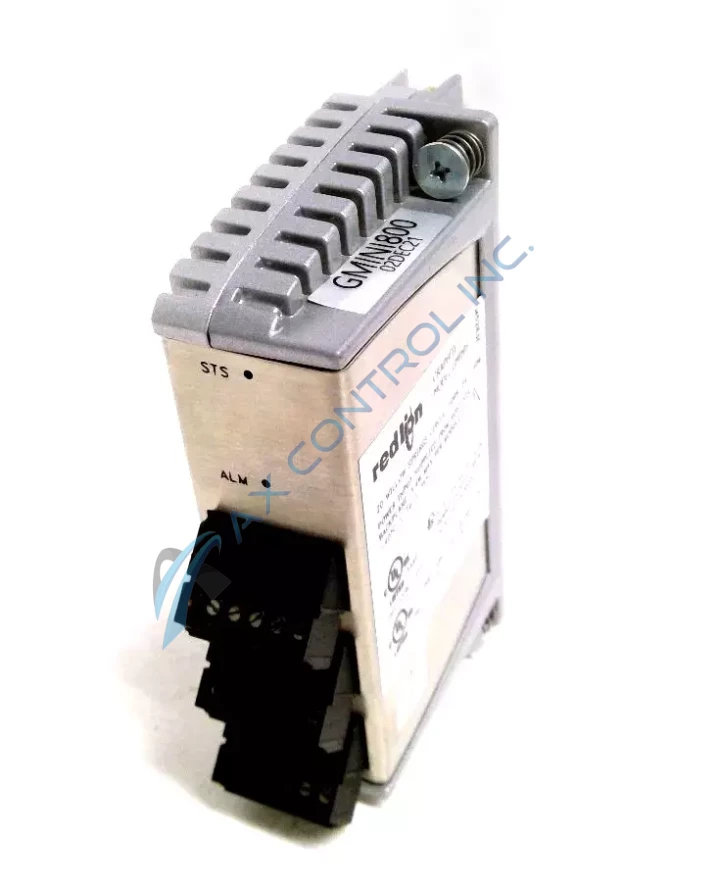

The Red Lion Graphite Expansion Module GMINI800 is a device that provides eight DC single-ended current inputs for use with a Graphite HMI. It is designed to measure and monitor current in a wide range of applications, including industrial process control, building automation, and energy management.

The GMINI800 module has eight channels, each of which can be configured as a current input with a range of 0-20 mA or 4-20 mA. The module has an effective resolution of 16 bits, allowing it to accurately measure small changes in current. It also has programmable scaling, which allows the user to set the input range and units for each channel.

Red Lion's GMINI module has a reading time of 50 msec to 400 msec, depending on the number of enabled inputs. This ensures that the module can accurately measure and monitor current in real time, even when multiple channels are being used. For every extra input enabled, the Scan Time increases by 50msec.

The discontinued GMINI800 module has a proprietary USB that can be used to connect the module to a Host Graphite HMI. It also has a screw terminal block that can be used to connect the current inputs to the module. The module is compact and easy to install, making it suitable for use in a variety of applications.

Reviews For GMINI800
Internal Review

This module is a game-changer for current measurement and monitoring. Its eight channels, high resolution, and programmable scaling make it a reliable and accurate choice. - AX Control Team of Technicians

Repair Services For GMINI800

Type Lead Time Price Action
Repair Service 1-2 weeks $1350

Our highly skilled technicians can repair your GMINI800. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More
