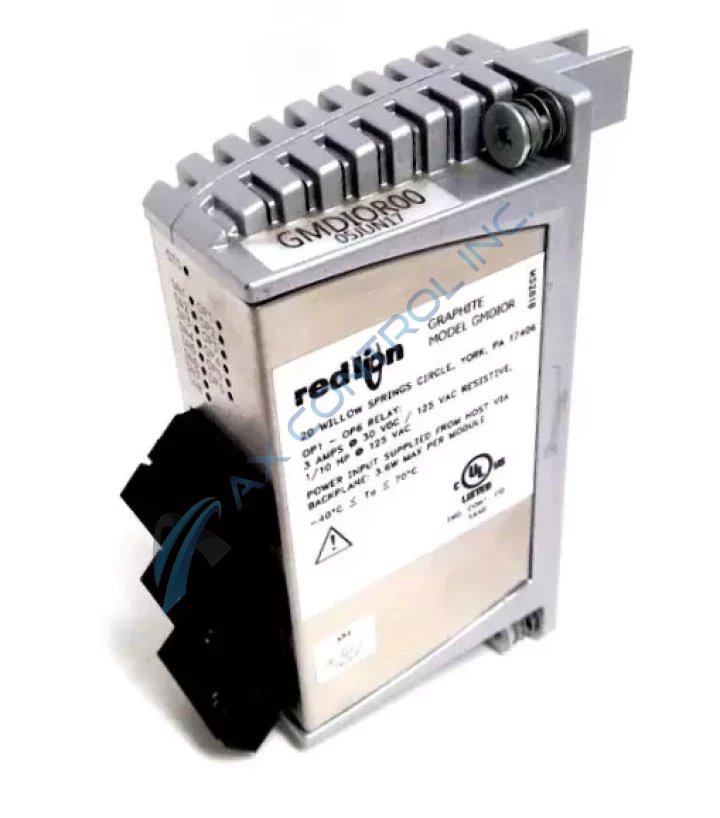

The Red Lion Graphite Digital Expansion Module GMDIOR00 is a device that expands the digital input and output capabilities of a Graphite Operator Interface Terminal.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a GMDIOR00 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GMDIOR00
  • SKU: GMDIOR00RL
  • Manufacturer: Red Lion
  • Series: Graphite HMI Expansion Modules

GMDIOR00

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.50 (2)
  • Click a star to rate this product
The Red Lion Graphite Digital Expansion Module GMDIOR00 is a device that expands the digital input and output capabilities of a Graphite Operator Interface Terminal.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

3 Year Warranty: Learn More
Sell Surplus: Have a GMDIOR00 to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: GMDIOR00
  • SKU: GMDIOR00RL
  • Manufacturer: Red Lion
  • Series: Graphite HMI Expansion Modules

GMDIOR00 Technical Specifications

Altitude Rating Up to 2000 meters
Dimensions (mm) W32 x H118 x D76
Features Not Suitable for Hazardous Environments
Operating Temperature Standards -40 to 70 °C
Relay Output Life Expectancy 200,000 cycles at maximum load rating
Storage Temperature Standards -40 to +85 °C
Weight Before Packaging 224 g

Product Description

The Red Lion Graphite Digital Expansion Module GMDIOR00 is a device that expands the digital input and output capabilities of a Graphite HMI. It has eight digital inputs, which can be used to monitor the status of switches, sensors, and other devices. The digital inputs can be configured as DC inputs or switch closure inputs, depending on the type of device being connected.

The GMDIOR00 module also has six relay control outputs. These relays can be used to control motors, pumps, valves, and other devices. The relays can be activated and deactivated using the Graphite HMI, allowing the user to control the connected devices remotely.

The GMDIOR00 module is compatible with all models of the Graphite HMI, and can be used with a variety of digital devices. It is a useful tool for expanding the digital input and output capabilities of a Graphite HMI, and is suitable for use in a variety of applications.

Product specifications:

  • 8 digital inputs
    • DC input or switch closure input types
  • 6 relay control outputs
  • Proprietary USB port for connection to Host HMI
  • Screw terminal block for connection of digital inputs and outputs
  • This Model is Not Suitable for Hazardous Locations
Reviews For GMDIOR00
Internal Review

Because of Minimal Dust and Moisture interactions with the GMDIOR00, we rarely have ever seen repair requests for this unit. We feel that there is a long life cycle due to this unit not being built for hazardous factory conditions. - AX Control Tech Teams
