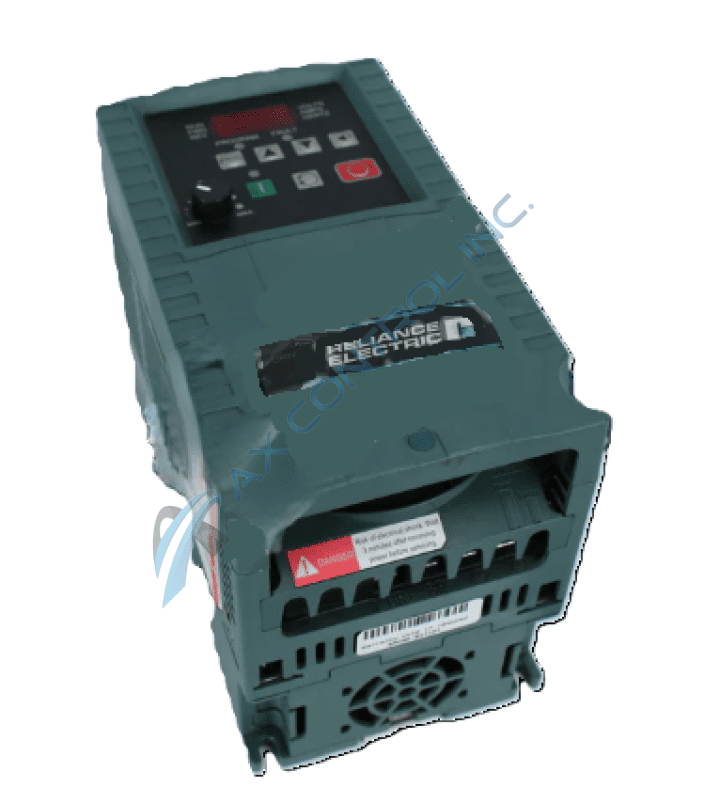

6MDAN-4P5101 Image One
2 year warranty

❯

6MDAN-4P5101 Image 1
6MDAN-4P5101 Image 2
visa card logo american express logo master card logo bbb logo duns seal

About | Product Specifications | FAQs

International

Phone

1-919-372-8413

Domestic (US)

1-800-991-7026

Email

6MDAN-4P5101

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures 4.75 (4) Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.75 (4)
  • Click a star to rate this product


The 6MDAN-4P5101 1PHASE 1HP IP20 230V Drive

New Surplus Factory Package
SKU: 8MD1
2 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

New Surplus AX Control Package
SKU: 8MD2
2 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

Reconditioned
$975
SKU: 8MD3
2 Year Warranty:
Order Before 3PM EST
Rush Available
2 in Stock
Repair
$745
SKU: 8MD4
2 Year Warranty:

1-919-372-8413 | 1-800-991-7026

sales@axcontrol.com

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

  Shipping Weight: 5.0 lbs.

  Shipping Dimensions: 5" x 3" x 7"

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

About the 6MDAN-4P5101

6MDAN-4P5101 is a 230 V, 50/60 Hz, 1-phase MD60 Drive that is manufactured by Reliance Electric. The output current is 4.5 A, the horsepower is 1.0 HP, and the output power is 0.75 kW. There is no filter in this drive. The frame size is A.

Relevant 6MDAN-4P5101 Faults

There are a number of fault codes on the MD60 drive. F2 is an auxiliary input fault that indicates that the auxiliary input interlock is open. To correct this fault, check the remote wiring and verify the communications programming for an intentional fault. F3 is a power loss fault that indicates that the DC bus voltage is below 85% of the nominal voltage. To correct this fault, check the input fuses and monitor the incoming AC line for low voltage for line power interruption. F4 is an undervoltage fault that indicates that the DC bus voltage fell below the minimum value. To correct this fault, check the incoming AC line for low voltage or line power interruption.

F5 is an overvoltage fault that indicates that the DC bus voltage exceeded the maximum value. To correct this fault, monitor the AC line for high line voltage or transient conditions; extend the deceleration time or install a dynamic brake option. F6 is a motor stalled fault, which indicates that the drive cannot accelerate the motor. To correct this fault, increase the acceleration time or reduce the load so that the drive output current does not exceed the current set by the current limit. F7 is a motor overload fault, which indicates that there has been an internal electronic overload trip. To correct this fault, verify the Start Boost setting or reduce the load on the motor.

6MDAN-4P5101 Technical Specifications

Manufacturer Reliance Electric
Series MD60
Part Number 6MDAN-4P5101
HP 1 HP
Input Voltage 240 VAC
Enclosure NEMA 1 or Chassis
Hz 50/60Hz
kW 0.75kW
Filter/No Filter Not Filtered
Labeling UL Listed, IEC Certified

Frequently Asked Questions about 6MDAN-4P5101

What parameter enables a current trip on a 6MDAN-4P5101?
On a 6MDAN-4P5101 MD60 drive, the A098 SW Current Trip parameter enables and disables a software instantaneous curent trip.
What phase is a MD60 6MDAN-4P5101 drive?
6MDAN-4P5101 is a single phase drive.
How can I clear a fault on a 6MDAN-4P5101?
The A100 Fault Clear parameter clears faults on a 6MDAN-4p5101 MD60 Reliance Electric drive. Choose 1 to reset fault which will clear the active fault and reset the drive, or choose 2 to clear buffer which will clear fault codes from parameters d007 through d009 on your 6MDAN-4p5101.
Which codes represent faults on a 6MDAN-4p5101?
The parameters d007, d008 and d009 represent fault codes. These fault codes will appear in these parameters in the order they occur, meaning that the fault 1 code in d007 will represent the most recent fault on a MD60 6MDAN-4p5101 drive.

Reviews For 6MDAN-4P5101

Internal Review
(5.0)

While the majority of this 6MDAN-4P5101 device's personalized product page here is indicative of a number of possible functional faults, that does not reflect the truth that this 6MDAN-4P5101 is prone to functional faults in any way. In actuality, this 6MDAN-4P5101 is a dependable model that utilizes a standard ventilated chassis rated for industrial environments. - AX Control Lead Technician
