MD60/65 IP30 NEMA-1 Conversion Kit

AVAILABILITY:

IN STOCK
SHIPS TODAY

2 Year Warranty: Learn More
Sell Surplus: Have a 6MD-NM1B to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 6MD-NM1B
  • SKU: 6MDNM1BRE
  • Manufacturer: Reliance Electric
  • Series: MD60 Drives

6MD-NM1B

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.71 (7)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.71 (7)
  • Click a star to rate this product
MD60/65 IP30 NEMA-1 Conversion Kit

AVAILABILITY:

IN STOCK
SHIPS TODAY

2 Year Warranty: Learn More
Sell Surplus: Have a 6MD-NM1B to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 6MD-NM1B
  • SKU: 6MDNM1BRE
  • Manufacturer: Reliance Electric
  • Series: MD60 Drives

6MD-NM1B Technical Specifications

Enclosure NEMA 1 or Chassis
Filter/No Filter Internal Filter
HP 0.5 HP
Hz 50/60Hz
Input Voltage 460 VAC
kW 0.4kW
Labeling UL Listed, IEC Certified
Manufacturer Reliance Electric
Part Number 6MD-NM1B
Series MD60

Product Description

The 6MD-NM1B module is a conversion kit that was produced by Reliance Electric to be included inside of the MD-60 product line. This product is no longer being produced by the original manufacturer; however, AX Control makes an attempt to supply this product and others in the MD-60 product line for our customers. Our website conveniently tracks the availability of all of our products, including the 6MD-NM1B conversion kit.

The 6MD-NM1B conversion kit is one of two conversion kits within the MD-60 product line. The other one has the model number 6MD-NM1A. The difference between these two is the type of frame that they use. The 6MD-NM1A model uses Frame A and the 6MD-NM1B model uses Frame B. These two conversion kits fulfill the same function, though.

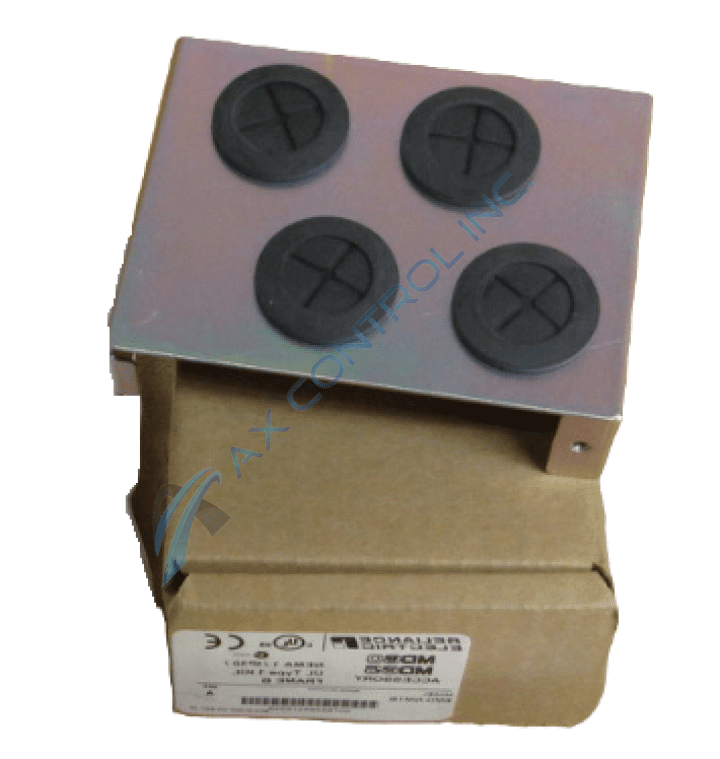

The 6MD-NM1B conversion kit is used to convert an MD-60 AC drive from an enclosure rating of IP20 to IP30/NEMA 1. The 6MD-NM1B conversion kit itself comes with a metal conduit plate so that it can attach to the user conduit. In addition to that, the 6MD-NM1B conversion kit comes with a plastic top cover for the drive. This protects it from debris that can hamper its functions or possibly damage it irreparably.

The 6MD-NM1B conversion kit is rated as having a voltage of 460 VAC and a Hertz rating of 50/60 Hz.

The 6MD-NM1B conversion kit has a total weight of approximately 0.57 lbs. or 0.26 kg. This approximate weight does not include any of the shipping materials that we use for our packages.

Frequently Asked Questions about 6MD-NM1B

What type of conversion kit is the Reliance Electric 6MD-NM1B?
The Reliance Electric 6MD-NM1B is a NEMA 1/IP 30 conversion kit. The 6MD-NM1B kit contains a conduit box and a converter cover.
How long is the warranty on the 6MD-NM1B conversion kit?
AX Control provides a 3 year warranty on the 6MD-NM1B conversion kit.

Repair Services For 6MD-NM1B

Type Lead Time Price Action
Repair Service 1-2 weeks $379

Our highly skilled technicians can repair your 6MD-NM1B. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

  • 48-72hr Rush Repair
  • Detailed Repair Reports
  • AX Control Certificate of Warranty

AX Control Warranty Info

All products we sell are backed by our unparalleled warranty. A warranty certificate will be provided with your order upon request.
All PLCs, HMIs, and Turbine Control Boards: 3 Years
All AC/DC and Servo Drives: 2 Years
All Motors: 1 Year
Learn More

6MD-NM1B Manuals, White Papers, Data Sheets, and Troubleshooting
