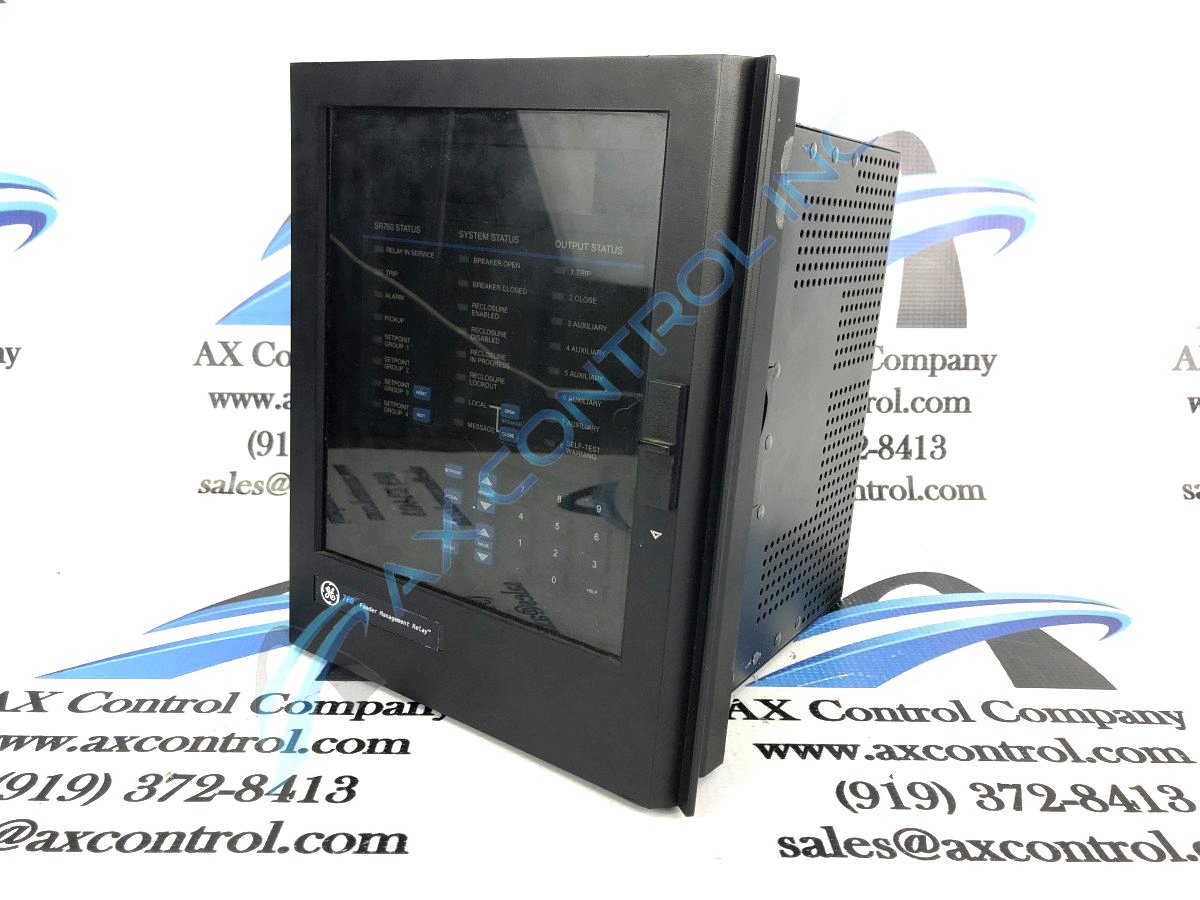

760-P5-G5-S5-LO-A20-R Image One
3 year warranty

760-P5-G5-S5-LO-A20-R Image 1
760-P5-G5-S5-LO-A20-R Image 2
760-P5-G5-S5-LO-A20-R Image 3
760-P5-G5-S5-LO-A20-R Image 4

760-P5-G5-S5-LO-A20-R

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.00 (1)
  • Click a star to rate this product
A Feeder Management Relay by GE Multilin, the 760-P5-G5-S5-LO-A20-R is able to monitor, manage, and protect distribution feeder systems. This unit features a low control power range and closed red breaker LEDs.

AVAILABILITY:

IN STOCK
SHIPS IN 3-5 DAYS

Sell Surplus: Have a 760-P5-G5-S5-LO-A20-R to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: 760-P5-G5-S5-LO-A20-R
  • SKU: 760P5G5S5LOA20RGM
  • Manufacturer: GE Multilin
  • Series: 750/760 Feeder Management Relay

760-P5-G5-S5-LO-A20-R Technical Specifications

Ambient Storage Temperature Range -40°C (-40°F) to +80°C (176°F)
Communications RS232, RS422, RS485 ports
Features Red Breaker Closed LEDs, Drawout Construction
Operating Temperature Range -40°C (-40°F) to +60°C (140°F)
Overvoltage Pickup Level 0 to 1.25 × VT in steps of 0.01
Pollution Degree II
Waveform Capture Channels 4 currents, 3 voltages, 14 logic input states and 8 output relays

Product Description

A low control power model of the series, the 760-P5-G5-S5-LO-A20-R Distribution Feeder Protection Relay accepts a control power range of 88 to 300 VDC, 70 to 265 VAC at 48 to 62 Hz. Adept at protecting and managing distribution feeder systems, the relay is equipped with a number of protective features that reduce system downtime and preserve component health:

  • Reclosure: Unique to the 760 series, this model is able to open a circuit or line when an overcurrent such as a short circuit is detected. The recloser can then autoassess if system conditions are healthy again, reclosing the circuit to restore normal function or keeping the line open if system health is not restored.

  • Neutral and Phase Directional Control: This feature protects the system against phase-to-phase and phase-to-earth short circuits and offers total selectivity. The directional overcurrent relaying can shield multiple source feeders when relay tripping needs to be limited in a single direction.

  • Bus Transfer: This feature can transfer the load bus to an alternate power source when normal power fails and helps keep operation in-process.

  • Reverse Power Detection: The 760-P5-G5-S5-LO-A20-R is able to raise a trip or alarm when power flows in an unintended direction. This feature helps eliminate auxiliary equipment that would typically be employed.

The 760-P5-G5-S5-LO-A20-R’s high configurability can be a double-edged sword; while the system is highly configurable, this also makes it more difficult to learn due to the wide range of potential settings and parameters. An experienced user should handle programming to ensure that setpoints enable maximum efficiency and protection for the given system. The 1601-0120-AE (or its accompanying revisions) provides assistance for system programming, though not every configuration can be covered.

Frequently Asked Questions about 760-P5-G5-S5-LO-A20-R

Does the 750/760 GE Feeder Management Relay 760-P5-G5-S5-LO-A20-R have communication ports?
The 750/760 GE Feeder Management Relay 760-P5-G5-S5-LO-A20-R has two communication ports in the back of the relay that can be used at the same time. The two communication ports support the subset of the AEG Modicon Modbus that is a protocol.
What mode is used for the two communication ports on the 760-P5-G5-S5-LO-A20-R?
The first communication port (COM1) is used with modes RS485 with two wires and also the mode RS422 is used with four wires. But COM1 won't work in both modes simultaneously. The second communication port (COM2) is only used with the two wire RS485 mode.
Can I minimize error by using a shielded twisted pair wire on the GE Feeder Management Relay?
Yes, using a shielded twisted pair wire is recommended to minimize errors that make noise. If the SR type relays are connected with the B1 terminals that are connected together and all the B2 terminals are connected together, terminal B3 has to be connected to the common wire on the shield that is on the inside.

Reviews For 760-P5-G5-S5-LO-A20-R

Internal Review
(4.0)

Although the 760-P5-G5-S5-LO-A20-R is a powerful choice for system management and protection, it does not include many of the additional features found on other models in the series, such as the enhanced faceplate, conformal coating, or Ethernet connection option. Prospective buyers should ensure these features are unnecessary before committing to this model. -AX Control Tech Team
