Micro-Saver II 6KMS223003N1A1

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More

Sell Surplus: Have a 6KM$223003N1A1 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

6KM$223003N1A1

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (5)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.60 (5)
  • Click a star to rate this product
Micro-Saver II 6KMS223003N1A1

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

2 Year Warranty: Learn More

Sell Surplus: Have a 6KM$223003N1A1 to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Product Description

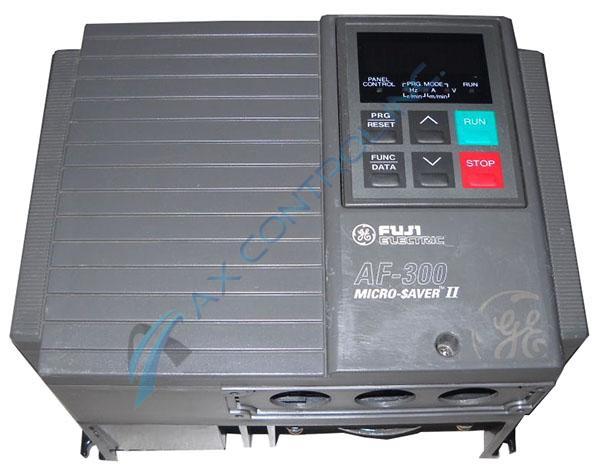

The 6KM$223003N1A1 is an AF-300 Micro-$aver II by Fuji Electric. The voltage/frequency characteristics (V/F) are V- 80-240 VAC or 160-480 VAC and the Frequency is 0.2 to 400 Hz. The drive has a data lock protection to ensure that the function codes are not changed. The drive is a three-horsepower drive. It weighs 6.2 pounds or 2.8 KGS. The height is 6.22 inches (158mm), the width is 8.03 inches (204mm) and the depth is 5.28 inches (134mm). This drive is also a NEMA 4 product. The rated output voltage is a 3-phase, 3-wire, 80-240 VAC or 160-480 VAC (cannot exceed power supply voltage). The frequency range is 0 - 400 Hertz (0.2 to 15 Hz Start Frequency; 15 to 400 Hz Base Frequency) Above 120 Hz, contact the motor manufacturer for approval of the application. The overload current rating is 150% for 1-minute duration (inverse time characteristic) 200% for 0.5 seconds. The acceleration and deceleration characteristics are 0.01 to 3600 seconds (independent acceleration/deceleration) Characteristics Alternative accel/decel time available as well as linear or 2 S-curves (selectable). The input signal (contact type) can go between Forward, reverse, multistep speed setting, alternate accel/decel time settings, coast-to-stop, external alarm, 3-wire control and reset. Refer to the AF-300 Micro-$aver II instruction manual to learn how to program this drive to your system, along with safety protocols.

Call or email the knowledgeable staff of AX Control for a quote or any additional information.

Repair Services For 6KM$223003N1A1

Type Lead Time Price Action
Repair Service 1-2 weeks Ask Get Quote

Our highly skilled technicians can repair your 6KM$223003N1A1. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
