IS420UCSBS1A
- 4.8 (18)
- Click a star to rate this product

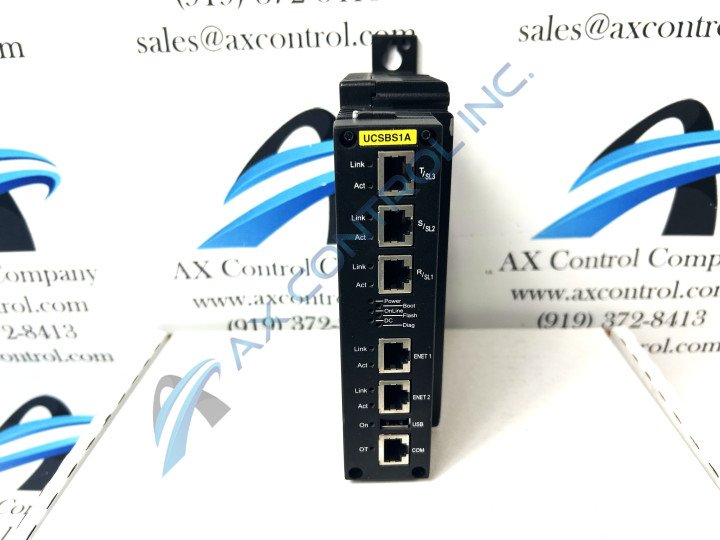

The IS420UCSBS1A Safety Controller Board was manufactured for General Electric's Mark VIeS Turbine Control System Series.


* Learn More About Product Conditions
* Posted pricing available for website purchases only.
Product Conditions
New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.
New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.
Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.
About the IS420UCSBS1A
- The IS420UCSBS1A is a Mark VIeS Safety Controller designed by General Electric.
- It is part of the Mark VIeS Control Safety System.
Applications and Compatibility
- Primarily used in the control and management systems of General Electric-compatible gas, steam, and wind turbine automated drive assemblies.
- More far-reaching functional applications than the previous Mark V Series (which only supported gas and steam turbines).
- Compatible with EX2100e and LS2100e control systems.
- Used for functional safety loops to achieve SIL 2 and SIL 3 capabilities (IEC 61508 certified hardware/software).
Mounting and Certifications
- Standard mounting location: Panel sheet mounting.
- Can be mounted in Class one, Zone two, Group IIC with a UL E207685 certification.
- Additional locations and certifications are detailed in the GEH-6725 Mark VIe and Mark VIeS Controls Equipment HazLoc manual (page 112).
Hardware Features and Specifications
- Similar to the UCSC controller and identical to the IS420UCSBS1ABB controller in fit, form, and function.
- Key advantages (shared with UCSB controllers):
- No required jumper settings.
- Flash memory that can be updated by the user.
- No fan (for this specific variant, unlike some UCSB models).
- Built-in power supply.
- No battery.
- Smaller panel footprint.
- Communicates with I/O modules through onboard Input-Output Networks (IONet).
- Processor: 600 MHz EP80579 Intel Processor.
- Operating System (OS): QNX Neutrino, a real-time, multitasking OS.
- Note on Revisions: Base-revised performance specifications and dimensions may have been altered due to three-fold product revisions (two functional, one artwork).
Setup and Configuration
- Before configuring, ensure:
- Controller is properly added to the system with correct redundancy.
- Control system network cabling and hardware are properly connected.
- All system equipment is powered on successfully.
Supported Features (Basic Listed)
- Redundancy Support: Simplex, TMR (Triple Modular Redundant), and Dual IONet Redundancies.
- OPC UA Support.
- Backup/Restore Method.
- Shared IONet.
- Fieldbus Foundation.
- PCSA Master and Slave Modbus TCPs.
Documentation and Support
- All information available in GE manuals:
- GEH-6855 Mark VIeS Functional Safety Systems Volume I System Guide.
- GEH-6725 Mark VIe and Mark VIeS Controls Equipment HazLoc Guide.
- GEH-6703 Toolbox ST User Guide for Mark Controls Platform User Guide.
- Supported features are detailed in intuitive chart form in the manuals.
- Two forms of the IS420UCSBS1A product are identified by their Ethernet port-containing side; one likely has a normal Mark VIeS Series assembly, while this specific IS420UCSBS1A has a special modular assembly.
IS420UCSBS1A Manuals, White Papers, Data Sheets, and Troubleshooting
IS420UCSBS1A Technical Specifications
Manufacturer | General Electric |
Series | Mark VIe & Mark VIeS |
Part Number | IS420UCSBS1A |
Ambient Temperature Range | -30 to + 65 °C (-22 to +149 °F) |
Controller Type | Mark VIeS Safety Controller |
Functional Abbreviation | UCSB |
Power Supply | Nominal 28 VDC |
Processor Type | 600 MHz EP80579 Intel |
Shipping Weight | 2.76 lb |
Frequently Asked Questions about IS420UCSBS1A
Is this IS420UCSBS1A Safety Controller Board compatible with an OPC UA server?
Are Model Predictive Control block libraries supported by the IS420UCSBS1A Safety Controller Board?
Reviews For IS420UCSBS1A
Internal Review
(5.0)This controller is the final version of the UCSB controllers and is the only USCBS controller within the Mark VIeS system. This controller has a specific cable needed when connecting this controller with the UCSC controllers. Before configuring or transferring this IS420UCSBS1A Safety Controller Board device's unique IP address, it is critical to follow a series of safety-minded steps as detailed in instructional documentation made available to our handy instructional manual materials tab above. This IS420UCSBS1A Safety Controller Board is available for repair or replacement. - AX Control Lead Technician
