IS420UCSBH1A
- 4.4 (26)
- Click a star to rate this product
General Electric's Mark VIe Controller IS420UCSBH1A is similar to the UCSC Controller and all of the same general information can be applied to the UCSB model.


* Learn More About Product Conditions
* Posted pricing available for website purchases only.
Product Conditions
New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.
New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.
Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.
About the IS420UCSBH1A
- Model Number: IS420UCSBH1A.
- Manufacturer: General Electric (GE).
- Series: Mark VIe Control Safety System Series.
- Type: First of the UCSB controllers.
- Similarities: Similar to the UCSC controller, with nearly identical operating software.

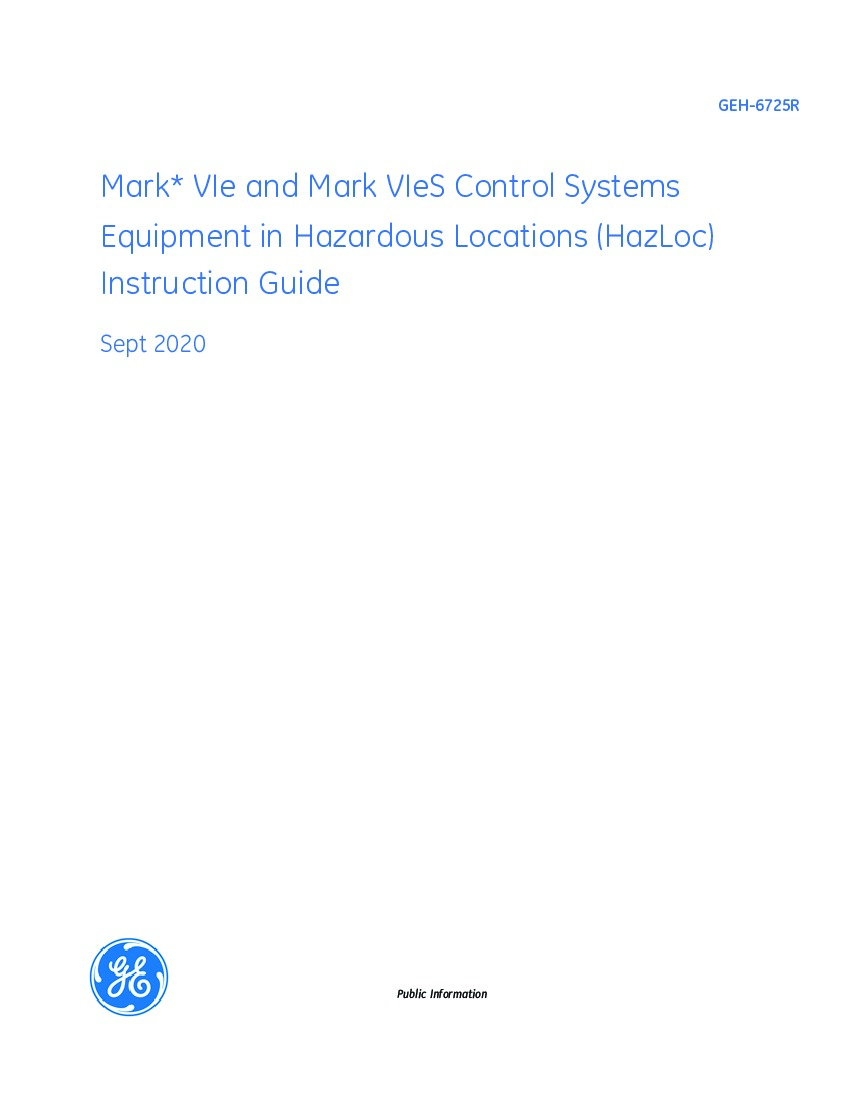

- Labeling: Labeled as a Mark VIe, LS2100e, and EX2100e controller (per GEH-6725 Mark VIe and Mark VIeS, Controls Equipment HazLoc Instruction Guide).
- Microprocessor: Features a 600 MHz EP80579 Intel Processor.
Control Voltages and Power Supply
- Minimum Voltage: 18 VDC.
- Maximum Voltage: 30 VDC.
- Nominal Power Rating: 24 VDC and 28 VDC.
- Maximum Current Rating: 1.5 ADC.
- (Information source: Page twenty-two of the GEH-6725 Instruction Guide)
Installation and Certifications
- Mounting Requirements: Several certifications are required for mounting in both hazardous and non-hazardous locations.
- ATEX Zone 2, Group IIC Certification: UL DEMKO 12 ATEX 1114875X.
- Class I, Zone 2, Group IIC, Non-Hazardous, and Class I, Division 2, Groups A, B, C, and D Certifications: UL E207685 (same for all these locations).
IS420UCSBH1A Manuals, White Papers, Data Sheets, and Troubleshooting
IS420UCSBH1A Technical Specifications
Manufacturer | General Electric |
Similar To | Mark VIe UCSC Controller |
Product Type | Mark VIe, EX2100e, or LS2100e Controller |
Processor Type | Intel 600 MHz EP80579 |
Part/Model Number | IS420UCSBH1A |
Part Number | IS420UCSBH1A |
Ambient Temperature Range | -22 to 149°F |
Functional Acronym / Abbreviation | UCSB |
Features | No Fan, No Battery, Single Module, etc. |
Certifications | Non-Hazardous, UL E207685 and ATEX Zone 2, Group IIC |
Reviews For IS420UCSBH1A
Internal Review
(5.0)The IS420UCSBH1A Controller is a highly reliable and versatile module due to its longevity and compatibility with EX2100e, LS2100e, and Mark VI Systems. It has a low failure rate and is repairable as it relates to most defects - AX Control Tech Team
