IS420PVIBH1B

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.88 (8)
  • Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.88 (8)
  • Click a star to rate this product
The IS420PVIBH1B is a Vibration I/O Pack from the Mark VIe Series manufactured by GE Energy

AVAILABILITY:

IN STOCK
SHIPS TODAY

Sell Surplus: Have a IS420PVIBH1B to sell? Sell Now
Exchange Credit: Learn more about our exchange credit program
  • Part Number: IS420PVIBH1B
  • SKU: GBTC-59354
  • Manufacturer: GE Boards & Turbine Control
  • Series: Mark VIe & Mark VIeS Control Systems

IS420PVIBH1B Technical Specifications

Part Number IS420PVIBH1B
Product Type Vibration I/O Pack
Manufacturer General Electric
Series Mark VIe
Functional Revision 1 B
Base Protection Spray-Based Conformal Coat
Instructional Manual GEH-6725
Ethernet Ports 2 Ports

About the IS420PVIBH1B

The IS420PVIBH1B is a Vibration I/O Pack that was manufactured for the Mark VIe Turbine Control System Series. This pack was manufactured by GE Energy. The pack provides an electrical interface between one or two Ethernet I/O networks and the TVBA vibration terminal board.

IS420PVIBH1B Specifications

The IS420PVIBH1B has a three different boards that make up the pack. These boards are:

  • Processor board
  • Acquisition board
  • Daughterboard

The pack has 13 channels that are used for different functions. Channels 1 through 8 are designed to read vibration and proximity information from different sensor types. Channels 9 through 12 support proximitors. Channel 13 can input either a Keyphasor signal type or proximity type signal.

Frequently Asked Questions about IS420PVIBH1B

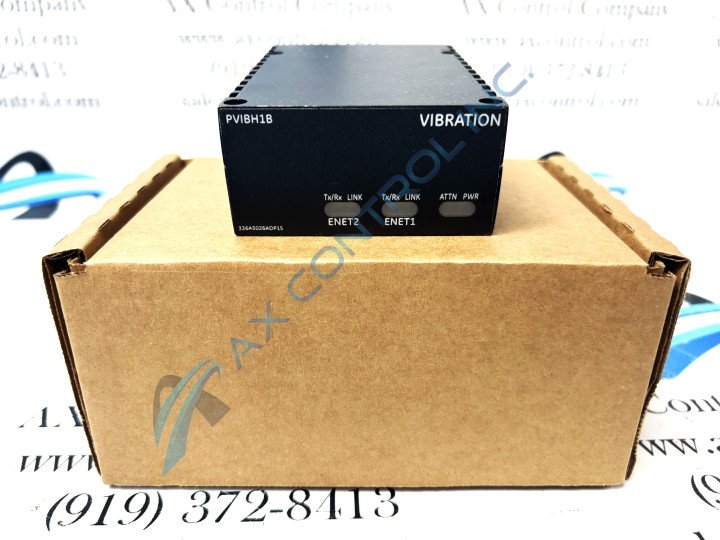

What are the IS420PVIBH1B Vibration I/O Pack's three LEDs labeled as?

The IS420PVIBH1B LEDs include the ATTN/PWR LED, the ENET1 LED, and the ENET2 LED.

Is the IS420PVIBH1B compatible with the TVIB board?

No, the IS420PVIBH1B is not compatible with the TVIB board. This pack is only compatible with the TVBA board.

Reviews For IS420PVIBH1B

Internal Review
(5.0)

The IS420PVIBH1B can be used in either simplex or TMR applications, which means that either one or three packs will be used. The IS420PVIBH1B is not available for dual controls. The IS420PVIBH1B gets input through two RJ45 Ethernet connectors and a three pin power input. - AX Control Lead Technician
