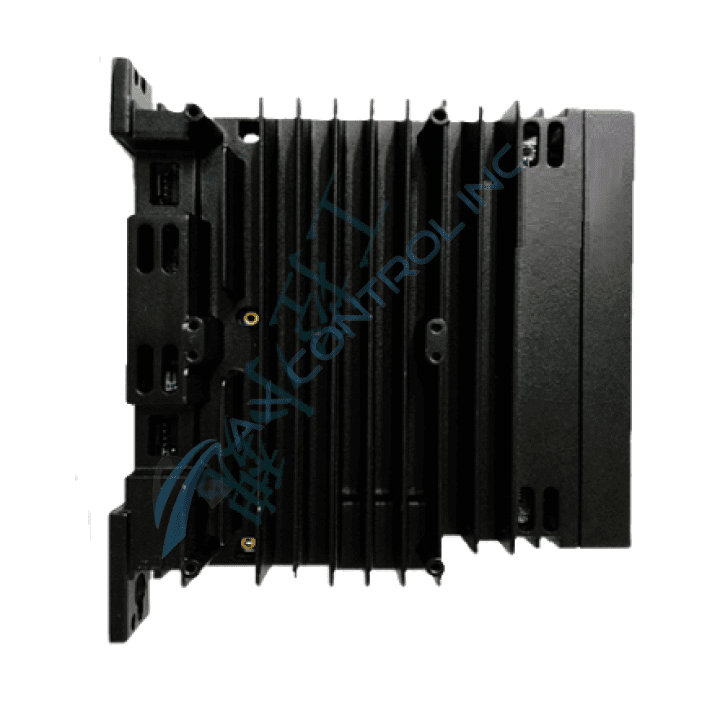

IS420ESWBH4A

    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures 4.3 (12) Click a star to rate this product
    Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures Varying star amount pictures
  • 4.3 (12)
  • Click a star to rate this product


The IS420ESWBH4A IONet Switch is part of the Mark VIe or Mark VIeS Safety Control System produced by General Electric. This switch has a 100Base-LX10 fiber port. The IS420ESWBH4A switch can be panel-mounted or DIN-rail mounted depending on if going in as a new or replacement application.

New Surplus Factory Package
SKU: 51MVMVCS1
3 Year Warranty
New Surplus AX Control Package
SKU: 51MVMVCS2
3 Year Warranty
Reconditioned
SKU: 51MVMVCS3
3 Year Warranty
Repair
$2100
SKU: 51MVMVCS4
3 Year Warranty

* Learn More About Product Conditions
* Posted pricing available for website purchases only.

Product Conditions

New Surplus Factory Package: A completely unused product that is in the original factory package. The package may have been opened for the purpose of pictures, but the product has never been used or installed.

New Surplus AX Control Package: A completely unused product that has been removed from the original factory package. Often due to shelf wear or previous shipping, the factory package is not adequate and must be replaced with an ideal AX Control product package.

Reconditioned: All products that qualify as reconditioned have completed AX Control's thorough and detailed QA process and meet the requirements of excellent working condition and excellent cosmetic condition.

Product Description

The IS420ESWBH4A is the fourth version of the ESWB IONet Switch pack from General Electric for the Mark VIe/VIeS system. This version of the ESWB pack has one 100Base-LX10 single-mode fiber port with an LC-type connection. As a single-mode fiber port pack, it requires an additional IR SFP, single-mode transducer from GE. One key feature of this pack is its ability to pause flow control, the flow control is used between switches and uses IEEE to receive and honor the pause packets sent to the pack; please note that the pause packet will only be sent if flow control is required on one of the ports.

This pack requires high performance as well as high reliability. To achieve this the IS420ESWBH4A pack will exceed up to four million hours MTBF or Mean Time Between Failures at around ninety-five degrees of ambient temperature and will operate on a fixed ground controlled environment. There are also specific performance criteria needed when operating at high reliability, these criteria are, inrush current, switch latency, and switch architecture. The inrush current is used to provide a soft start, when a soft start occurs then the current will be limited to less than two hundred percent of the standard operating current.

During operation, the IS420ESWBH4A pack will use LEDs to indicate multiple different functions. Activity and Link functions are the only functions on the pack besides power, the link function has three standards; standards for the link LED are solid yellow for a 10 MB link, solid green for a 100 MB link, and if the LED is not lit then a link has not been detected. For the activity LED, there are only two options, flashing yellow indicates that the activity is performing at half duplex, and when flashing green the activity is performing at full duplex.

IS420ESWBH4A Technical Specifications

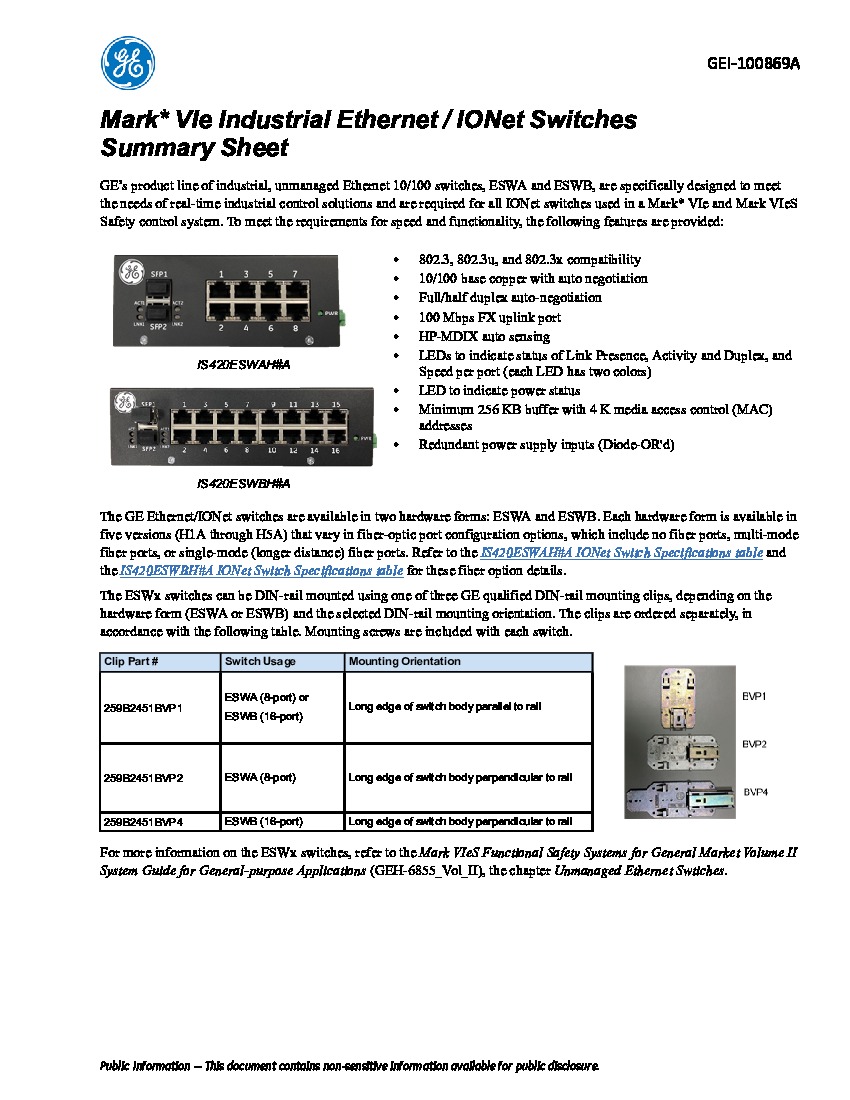

Summary Sheet GEI-100869
Storage Temperature -40 to 85°C
Input Voltage 24/28 VDC
Hazardous Location Capability ATEX/Class 1, Div 2/Class 2, Zone 2
Functional Abbreviation ESWB
Features LED to Indicate Power Status, HP-MDIX, Full/Half Duplex Auto-Negotiation, etc.
Clip for Perpendicular Mounting 259B2451BVP4

Reviews For IS420ESWBH4A

Internal Review
(5.0)

The ESWBH4A pack can be used in multiple different mounting orientations which are perpendicular or parallel to the rail when DIN-rail mounted. Different clips are used depending on the mounting orientation. Refer to the two volumes of the GEH-6855 manuals or the GEI-100869 Summary Sheet for more information. - AX Control Tech Team
