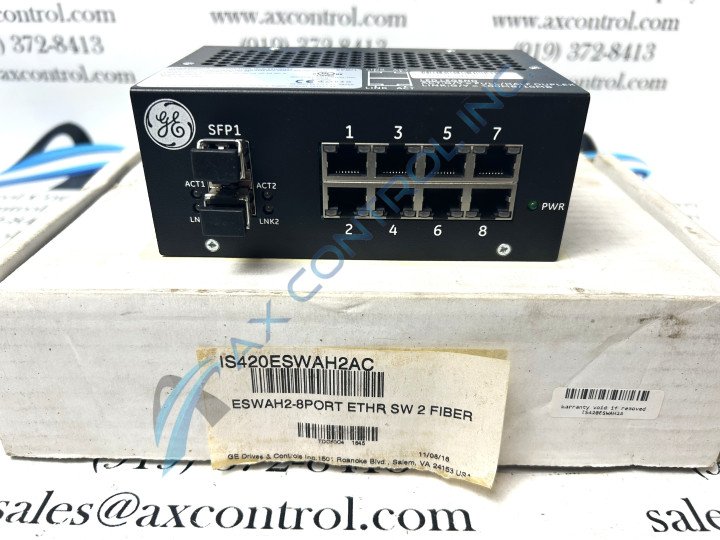

The IS420ESWAH2A is an Industrial Ethernet Switch that was manufactured by GE Energy for use in the Mark VIe Series

AVAILABILITY:

IN STOCK
SHIPS TODAY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS420ESWAH2A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS420ESWAH2A
SKU: GBTC-53617

Manufacturer: GE Gas Power
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS420ESWAH2A Technical Specifications

Model Number	IS420ESWAH2A
Product Type	Industrial Ethernet Switch
Series	Mark VIe
Manufacturer	General Electric
Ambient Operating Temperature Range	-40 to 70°C
Dimensions	H 5.4 in x W 3.70 in x D 2.20 in
Fiber Ports Quantity	2, 100Base-FX
G3 Compliant	Yes
Number of Copper Ports	8
Part Specific Manual	GEI-100869A
Safety Rated	Non-Interfering
Weight	1lbs 2oz

About the IS420ESWAH2A

The IS420ESWAH2A is an Industrial Ethernet Switch that was manufactured for GE Energy's Mark VIe Turbine Control System Series. This module is designed to provide top performance features in real-time industrial power plant control systems.

Hardware Tips and Specifications

The IS420ESWAH2A is labeled as an unmanaged, industrial Ethernet switch. This model was designed to meet specific requirements that are needed to keep up with real-time industrial solutions. Some of the features needed to meet the speed and functionality requirements are as follows:

Redundant power supply inputs
LEDs to indicate the status of:
- Speed
- Duplex
- Activity
- Link Presence per port
100Base-FX multi-mode fiber ports
- all of the fiber ports will have an LC-type connection

IS420ESWAH2A Installation Tips and Specifications

Multiple mounting orientations can be used when mounting this switch. Depending on which mounting orientation is used there are also different clips needed. For example:

If mounting the IS420ESWAH2A switch parallel to the rail on the long edge of the switch body the clip needed for mounting is the 259B2451BVP1.
Please advise that this clip can be used with the ESWA and ESWB switches.
When the IS420ESWAH2A is being mounted there is no associated base accessory/assembly needed when mounting the switch, nor is there a replacement part within the module.
The RJ-45 connector should have an estimated lifespan of two hundred removal/insertion cycles after Switch insertion.

Frequently Asked Questions about IS420ESWAH2A

How many base copper ports does the IS420ESWAH2A have?

The IS420ESWAH2A has 8 base copper ports that are labeled 1-8 on the module.

Does the IS420ESWAH2A have full or half duplex auto-negotiation?

The IS420ESWAH2A can be used in both half and full duplex auto-negotiation.

What is special about the IS420ESWAH2A?

The IS420ESWAH2A has two total 100Base-FX, multi-mode fiber, LC-type connection ports.

What is LED two for on the IS420ESWAH2A?

LED two indicates Link presence on the IS420ESWAH2A.

Where can the IS420ESWAH2A be mounted?

The IS420ESWAH2A can be panel mounted or DIN rail mounted.

Reviews For IS420ESWAH2A

Internal Review

(5.0)

The IS420ESWAH2A features two fiber ports, which is an upgrade from the previous module, the IS420ESWAH1A. The two fiber ports allow for more connections to be made. The IS420ESWAH2A also includes multiple LEDs that allow for users to know the status of the module. - AX Control Lead Technician

Repair Services For IS420ESWAH2A

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	$1898

Our highly skilled technicians can repair your IS420ESWAH2A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:
