How does the IS400TCASH1A route signals to the processing boards?

The module internally routes signals to the BCAA and BCAB processing boards.

Does the IS400TCASH1A have terminal blocks?

Yes, the board has terminal blocks that are pluggable.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home GE Boards & Turbine Control Mark VIe & Mark VIeS Control Systems IS400TCASH1A

About | Product Specifications | FAQs

IS400TCASH1A

4.88 (16)
Click a star to rate this product

4.88 (16)
Click a star to rate this product

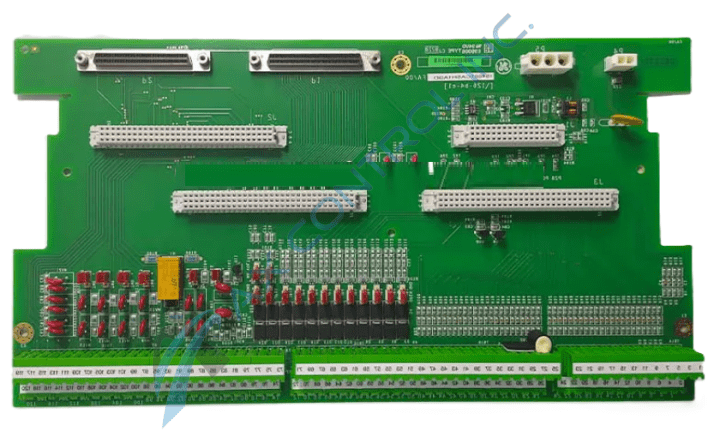

The IS400TCASH1A is a Core Analog I/O Terminal board that was manufactured by GE Energy for the Mark VIe Series

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS400TCASH1A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS400TCASH1A
SKU: GBTC-58814

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS400TCASH1A Technical Specifications

Part Number	IS400TCASH1A
Product Type	Core Analog I/O Terminal Board
Manufacturer	GE Energy
Product Series	Mark VIe
DIN Rail Installation Hardware	Not Related
Related Mark VIe Series Offerings	IS230PCAAH1A, IS230PCAAH1B
Warranty Protection	Assured
Assembly Rarity	Rare
Functional Status	Mark VIe Terminal PCB

About the IS400TCASH1A

The IS400TCASH1A is a Core Analog I/O Terminal Board module that was manufactured by GE Energy for use in the Mark VIe Series. The board connects with the PCAA I/O pack, but the module does not include a DIN-rail mount.

IS400TCASH1A Specifications

The IS400TCASH1A provides terminals and signal routing into the BCAA and BCAB processing boards. This board accepts bulk 28 V control power using the P5 connector. The IS400TCASH1A provides this power through the P4 connector to a JGPA board in the input cable shield termination location.

The IS400TCASH1A also works with the TCAT board. The IS400TCASH1A provides the P1 and P2 68-pin connectors for the TCAT terminal board cables.

The IS400TCASH1A is designed for simplex redundancy applications.

Reviews For IS400TCASH1A

Internal Review

(5.0)

The IS400TCASH1A has indicator LEDs that are on the PCAA module that allow users to monitor the status of the module. The board also has multiple connectors that allow for the processor boards to be added. These are connectors P1 and P2. - AX Control Lead Technician
