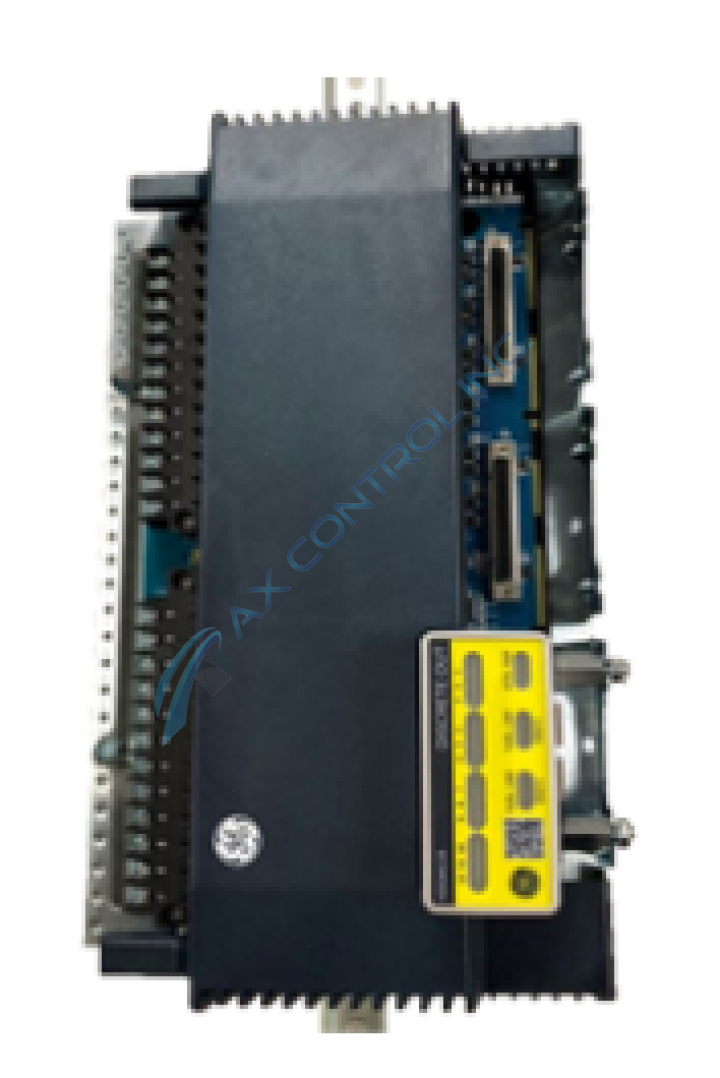

About the IS230TRLYH2F
The IS230TRLYH2F is a Discrete Relay Output Module from the Mark VIe Series manufactured by GE Energy. The module contains an IS200TRLYH2F terminal board and three PDOA I/O packs, which indicates that this module can be used with TMR applications.
IS230TRLYH2F Specifications
The IS230TRLYH2F contains 12 contact voted relay outputs. The IS230TRLYH2F does not have power distribution on the terminal board. There is an optional power distribution board that can be connected to the IS230TRLYH2F. This is IS200WPDFH1A board. This board allows for a standard power source to be provided for field solenoid devices.
The IS230TRLYH2F only works with TMR applications. This means that three connectors will be used to make the module. These connectors are labeled as:
These are 37 pin D-type connectors located on the terminal board.
