About the IS230TRLYH2E

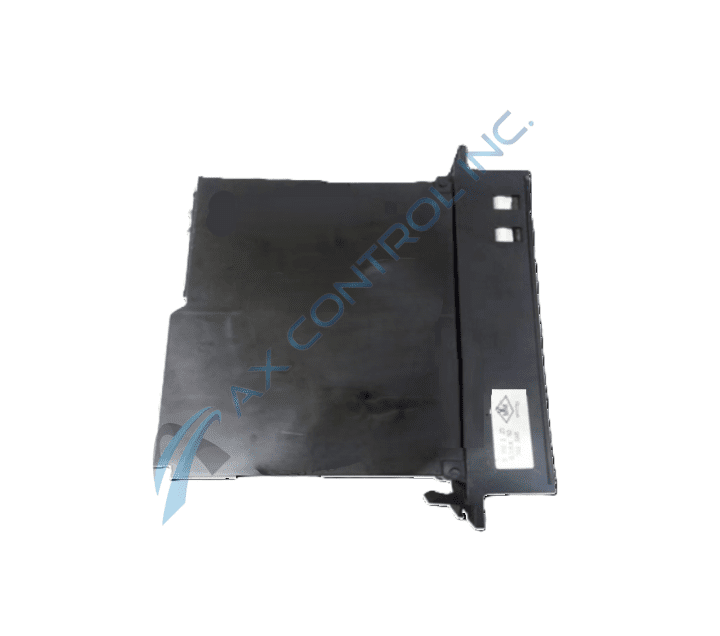

The IS230TRLYH2E is a Discrete Relay Output designed for the Mark VIe Series. The module was manufactured by GE Energy. The IS230TRLYH2E is made up of the IS200TRLYH2E terminal board and three PDOA I/O packs for TMR applications.
IS230TRLYH2E Specifications
The IS230TRLYH2E has a 12 output relay terminal board that is designed to be used with 24 V dc applications. These are solid state relays that feature isolated output voltage feedback on all 12 circuits.
There are a number of diagnostic features on the IS230TRLYH2E. Some of these are:
- Monitoring of output of each relay coil
- Monitoring of solenoid excitation voltage
- Monitoring of output status
- Monitoring of relay contact voltage
The PDOA packs will alert users if any faults are created on the terminal board.
