The IS230TRLYH1F Discrete Output Module manufactured by GE Energy for the Mark VIe Series

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TRLYH1F to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TRLYH1F
SKU: GBTC-58867

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TRLYH1F Technical Specifications

Part Number	IS230TRLYH1F
Product Type	Discrete Output Module
Manufacturer	GE Energy
Series	Mark VIe
Output Signal Version	Discrete
Revision Quantity	One F-Graded Rev
I/O Pack Redundancy	Triple Modular Redundant Product
Mounting Version	DIN Rail Mounting
I/O Pack Total	Three I/O Packs

About the IS230TRLYH1F

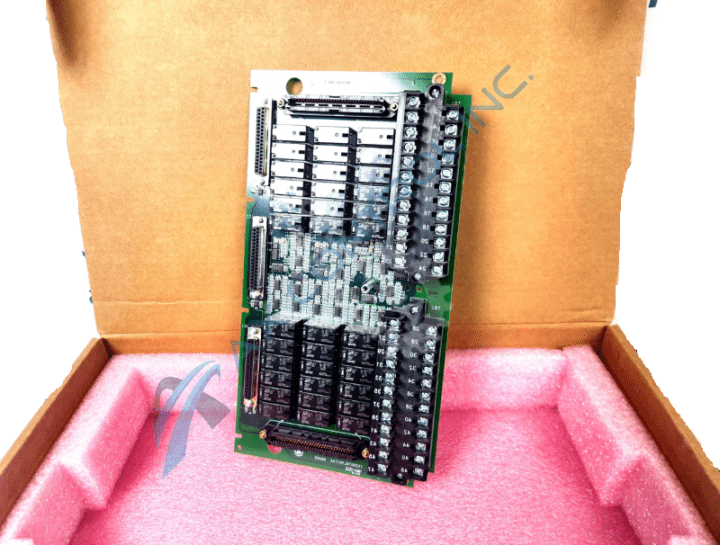

The IS230TRLYH1F is a Discrete Output from the Mark VIe Series. This module was manufactured by GE Energy. The IS230TRLYH1F is comprised of an IS200TRLYH1F terminal board and three PDOA I/O packs.

IS230TRLYH1F Testing Specifications

The IS230TRLYH1F has 12 contact voted relay outputs. There are 12 sealed relays in each of the three PDOA sections. The IS230TRLYH1F can run several diagnostic tests. Some of these tests are:

Hardware incompatibility test
Output health test
Voltage supply test

There is an optional power distribution board that can be attached to the IS230TRLYH1F. This is the IS200WPDFH1A board.

Frequently Asked Questions about IS230TRLYH1F

How much power goes to the terminal board on the IS230TRLYH1F?

There is 28 V dc that comes from the PDOA packs that goes to the terminal board relay coils.

How do the solenoids on the IS230TRLYH1F get power?

The solenoids get power from the WPDF board. If this board is not connected, the user must provide power to the solenoids.

Reviews For IS230TRLYH1F

Internal Review

(5.0)

The IS230TRLYH1F only supports TMR applications, which is indicated by the three PDOA packs this module has. There are several diagnostic features on the module, including the monitoring of the voltage to each relay coil. Voltage across the solenoid power supplies is also monitored. - AX Control Lead Technician
