Is there an option board that the IS230TNRLH2F can work with?

Yes, the IS230TNRLH2F can work with the WPDFH1A power distribution option board.

Where do the relay coils get power on the IS230TNRLH2F?

These relay coils get their power from the PDOA packs. The power supplied is 28 V dc.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home GE Boards & Turbine Control Mark VIe & Mark VIeS Control Systems IS230TNRLH2F

About | Product Specifications | FAQs

IS230TNRLH2F

4.50 (2)
Click a star to rate this product

4.50 (2)
Click a star to rate this product

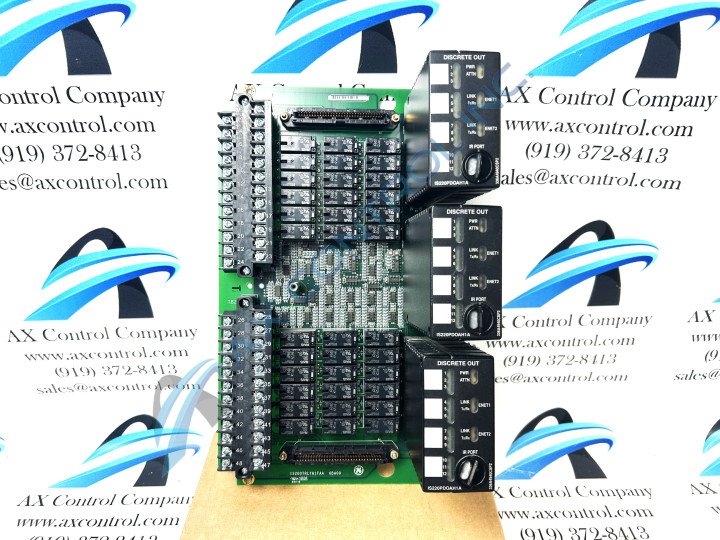

The IS230TNRLH2F is a Discrete Output Module from the Mark VIe Series manufactured by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TNRLH2F to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TNRLH2F
SKU: GBTC-58872

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TNRLH2F Technical Specifications

Part Number	IS230TNRLH2F
Product Type	Discrete Output Module
Manufacturer	GE Energy
GE Product Series	Mark VIe
Base PCB Coating	Conformal Coating
Related Modules	IS230TRLY
Single Revision	Functional "F" Revision
I/O Packs	PDOA Packs
Mark Series Grouping	Second Grouping

About the IS230TNRLH2F

The IS230TNRLH2F is a Discrete Relay Output Module that was manufactured by GE Energy for use in the Mark VIe Series of turbine controls. The IS230TNRLH2F is comprised of an IS200TRLYH2F terminal board and three PDOA I/O packs.

IS230TNRLH2F Specifications

The IS230TNRLH2F has 12 contact voted relay outputs. Each I/O pack section holds 12 sealed relays, making a total of 36 relays. The PDOA packs are plugged into D-37 pin connectors on the terminal board. These connectors are:

JR1
JS1
JT1

The IS230TNRLH2F only supports TMR applications, which means that three I/O packs are always needed for the module to be functional.

Reviews For IS230TNRLH2F

Internal Review

(5.0)

There are a number of diagnostic features that the IS230TNRLH2F has. One of these includes testing the voltage across each solenoid power supply. If this voltage levels drops below 16 V dc/ac, an alarm will be created. Another test determines if there are unhealthy outputs on the module. - AX Control Lead Technician
