The IS230TNRLH1F is a Discrete Relay Output Module from the Mark VIe Series manufactured by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TNRLH1F to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TNRLH1F
SKU: GBTC-58868

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TNRLH1F Technical Specifications

Part Number	IS230TNRLH1F
Product Type	Discrete Output Module
Manufacturer	GE Energy
Series	Mark VIe
Mark Series Grouping	Group One
Redundancy (I/O Pack)	Triple Modular Redundant
I/O Packs	PDOA Packs
I/O Pack Quantity	Three Packs

About the IS230TNRLH1F

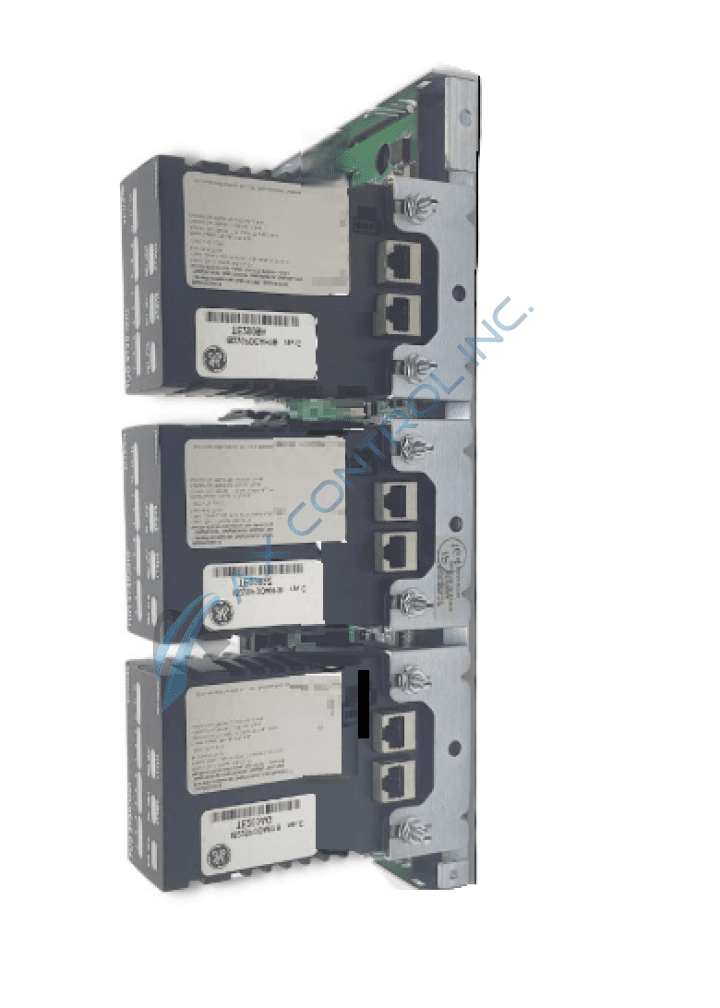

The IS230TNRLH1F is a Discrete Relay Output Module from the Mark VIe Series. This module was manufactured by GE Energy. The module is comprised of an IS200TRLYH1F terminal board and three PDOA I/O packs.

IS230TNRLH1F Specifications

The IS230TNRLH1F provides 12 contact voted relay outputs. The terminal board on the module holds 12 sealed relays in each TMR section, which is a total of 36 relays.

There are several features on the IS230TNRLH1F that are monitored. Some of these are:

Voltage to each relay coil
Voltage across each solenoid power supply
Status of each output

If there are issues within the module, a fault will be created and relayed to users through the PDOA packs.

Frequently Asked Questions about IS230TNRLH1F

Does the IS230TNRLH1F support simplex applications?

No, the IS230TNRLH1F only supports TMR applications, which is indicated by the three I/O packs the module has.

Does the IS230TNRLH1F have power distribution?

No, the IS230TNRLH1F itself does not have power distribution. There is an option board, WPDFH1A, that can provide power distribution.
