IS230TNIDH3A

4.83 (12)
Click a star to rate this product

4.83 (12)
Click a star to rate this product

The IS230TNIDH3A is a Discrete Input Module from the Mark VIe Series manufactured by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TNIDH3A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TNIDH3A
SKU: GBTC-58842

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TNIDH3A Technical Specifications

Part Number	IS230TNIDH3A
Product Type	Discrete Input Module
Manufacturer	GE Energy
Series	Mark VIe
Input Signal Style	Discrete
I/O Redundancy	TMR I/O Redundancy
I/O Pack Type	PDIA
Mark VIeS Series Group	Third Grouping

About the IS230TNIDH3A

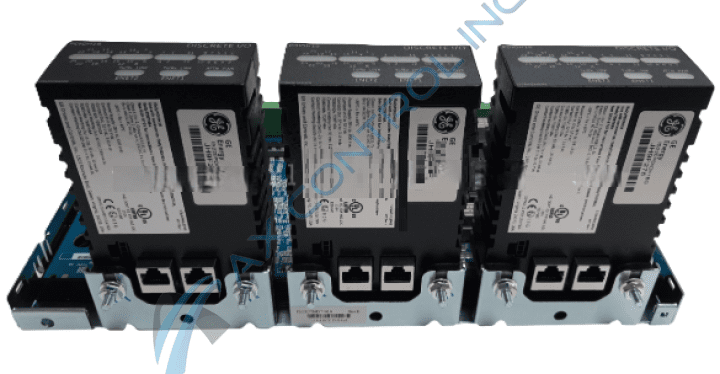

The IS230TNIDH3A is a Discrete Input Module from the Mark VIe Series that was manufactured by GE Energy. The module is comprised of an IS200TICI terminal board and three PDIA I/O packs. This module can be used with TMR applications, as indicated by its three I/O packs.

IS230TNIDH3A Specifications

The IS230TNIDH3A provides 24 voltage detection circuits that can sense voltages from relay contacts, fuses, and switches. This module has a nominal voltage rating of 125 V dc. The inputs are connected to the two terminal blocks on the IS200TICI terminal board.

There are three connectors on the IS230TNIDH3A that allow for the PDIA packs to be connected. These connectors are labeled as:

JR1
JS1
JT1

All three connectors will be used in the IS230TNIDH3A modular assembly.

Frequently Asked Questions about IS230TNIDH3A

Does the IS230TNIDH3A have a hardware incompatibility detector?

Yes, the PDIA packs on the IS230TNIDH3A will detect if the hardware is compatible or not.

Can any option boards be connected to the IS230TNIDH3A?

No, the configuration of the IS230TNIDH3A does not allow for any option boards to be accepted.

Reviews For IS230TNIDH3A

Internal Review

(5.0)

The IS230TNIDH3A can be used for TMR applications, which requires three PDIA packs. The module includes some diagnostic features, including the hardware compatibility feature. There is also a feature that monitors the excitation voltage to ensure this range does not drop below 40% of the nominal voltage. - AX Control Lead Technician

Repair Services For IS230TNIDH3A

Type	Lead Time	Price	Action
Repair Service	1-2 weeks	Ask	Get Quote

Our highly skilled technicians can repair your IS230TNIDH3A. All of our repairs come with a 3 Year AX Control Warranty. Please contact us for additional information about our repair process. To receive the repair pricing and lead time listed above please process your repair order via our website. The following repair options may be available upon request:

48-72hr Rush Repair
Detailed Repair Reports
AX Control Certificate of Warranty
