Does the IS230TNDTH4A have removable terminal blocks?

Yes, the terminal blocks on the IS230TNDTH4A are removable, which makes maintenance of the module easier.

What is the threshold voltage of the IS230TNDTH4A?

The threshold voltage of the IS230TNDTH4A is 50% of the wetting voltage.

DS200AAHA1	GE Turbine Control	Mark V

DS200AAHA1	GE Turbine Control	Mark V

Home GE Boards & Turbine Control Mark VIe & Mark VIeS Control Systems IS230TNDTH4A

About | Product Specifications | FAQs

IS230TNDTH4A

4.50 (2)
Click a star to rate this product

4.50 (2)
Click a star to rate this product

The IS230TNDTH4A is a Discrete I/O Module from the Mark VIe Series manufactured by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TNDTH4A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TNDTH4A
SKU: GBTC-58858

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TNDTH4A Technical Specifications

Part Number	IS230TNDTH4A
Product Type	Discrete I/O Module
Manufacturer	GE Energy
Product Series	Mark VIe
I/O Pack Redundance	Triple Modular Redundant
Revision Table	A-Rated Functional
I/O Packs Included	PDIO
Assembly Version	IS230 Modular Style

About the IS230TNDTH4A

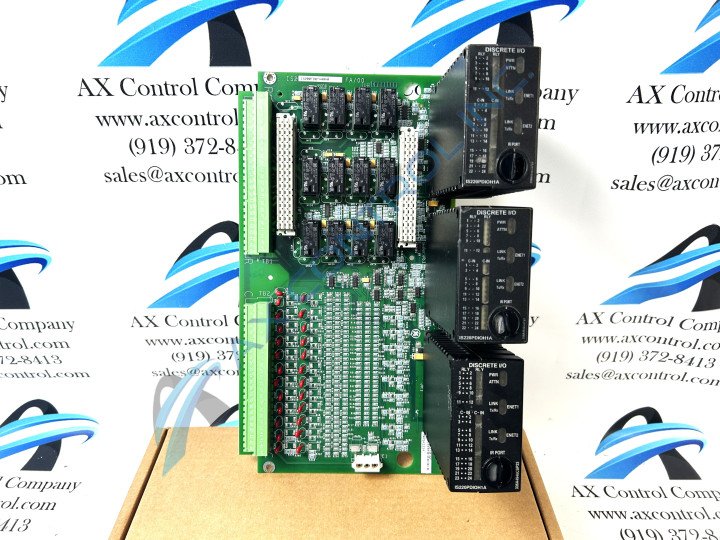

The IS230TNDTH4A is a Discrete Input/Output Module from the Mark VIe Series. This module was manufactured by GE Energy. The IS230TNDTH4A is comprised of an IS230TNDT module and three PDIO I/O packs.

IS230TNDTH4A Specifications

The IS230TNDTH4A supports 24 group isolated contact inputs and provides 12 form-C relay outputs. The IS230TNDTH4A is designed for TMR systems, which is indicated by the three I/O packs needed.

The IS230TNDTH4A has a nominal voltage rating of 48 V dc, with a range of 32 to 64 V dc. The IS230TNDTH4A can be used with the WROB option board. This option board can be connected to the terminal board using connectors. These connectors are:

JW1
JW2

There are also connectors for the PDIO packs. These connectors are:

JR1
JS1
JT1

Reviews For IS230TNDTH4A

Internal Review

(5.0)

The IS230TNDTH4A has noise suppression circuitry that protects against surge and high frequency noise for the inputs of the module. The IS230TNDTH4A can connect to the WROB option board. There are also fault detectors on the IS230TNDTH4A. One of these includes contact input excitation voltage monitoring. - AX Control Lead Technician
