The IS230TNDSH2A is a Discrete I/O Module from the Mark VIe Series manufactured by GE Energy

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TNDSH2A to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TNDSH2A
SKU: GBTC-58849

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TNDSH2A Technical Specifications

Part Number	IS230TNDSH2A
Product Type	Discrete I/O Module
Manufacturer	GE Energy
Series	Mark VIe
Terminal Board	TDBS terminal board
I/O Pack	PDIO Pack
Redundancy	Simplex Redundancy
Nominal Voltage	24 V dc

About the IS230TNDSH2A

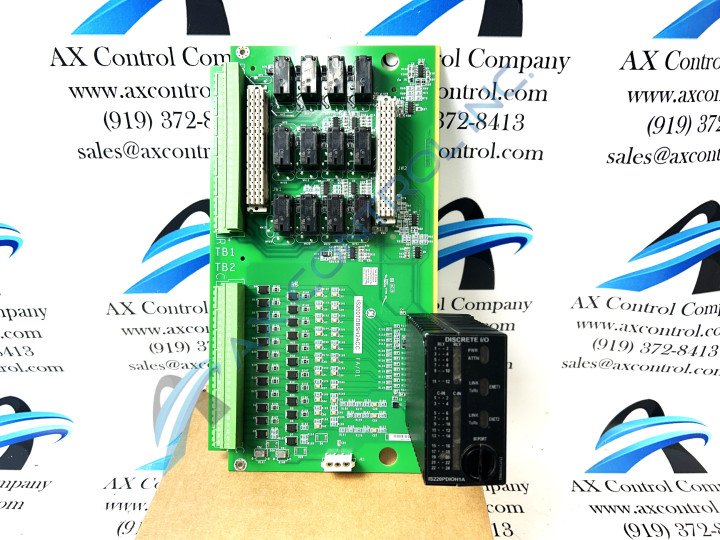

The IS230TNDSH2A is a Discrete I/O Module that was manufactured by GE Energy for use in the Mark VIe Series. The IS230TNDSH2A is comprised of an IS200TDBS terminal board and a PDIO I/O pack. This module only uses one I/O pack because of its simplex redundancy.

IS230TNDSH2A Specifications

The IS230TNDSH2A accepts 24 group isolated contact inputs. These inputs are supplied with the nominal 24 V dc wetting voltage from an external power supply. The IS230TNDSH2A also provides 12 form C relay outputs.

The IS230TNDSH2A can accept three different option boards that will attach to the terminal board. These option boards are:

IS200WROB
IS200WROG
IS200WROF

These options boards expand the functions of the module and its inputs and outputs.

Frequently Asked Questions about IS230TNDSH2A

What does the WROG board provide for the IS230TNDSH2A?

The WROG board distributes power from an input connector to the relays through a single fuse.

Does the IS230TNDSH2A have any diagnostic features?

Yes, the IS230TNDSH2A has several diagnostic features. One of these features monitors the state of each relay through a set of isolated contacts on each relay.

Reviews For IS230TNDSH2A

Internal Review

(5.0)

The IS230TNDSH2A is able to have option boards connected to the module, which allows for enhances features on the module. The IS230TNDSH2A also has noise suppression circuitry. This circuitry protects the inputs against surge and high frequency noise. - AX Control Lead Technician
