The IS230TNCIH5C is a Contact Input Module made for the GE Energy Mark VIe Series

AVAILABILITY:

CALL FOR AVAILABILITY

Contact: 1-919-372-8413 (Intl.), 1-800-991-7026 (US), sales@axcontrol.com

3 Year Warranty: Learn More About Our Warranty

Sell Surplus: Have a IS230TNCIH5C to sell? Sell Now

Exchange Credit: Learn more about our exchange credit program

Part Number: IS230TNCIH5C
SKU: GBTC-58833

Manufacturer: GE Boards & Turbine Control
Series: Mark VIe & Mark VIeS Control Systems

Description
Repairs
Warranty
Manuals

IS230TNCIH5C Technical Specifications

Part Number	IS230TNCIH5C
Product Type	Contact Input Module
Manufacturer	GE Energy
Series	Mark VIe
Revision Quantity	1 Revision
Primary Mark VIe/S Rev	Usual C-rated Functional
Excitation Voltage	24 V Dc
Isolation Type	Group Isolated

About the IS230TNCIH5C

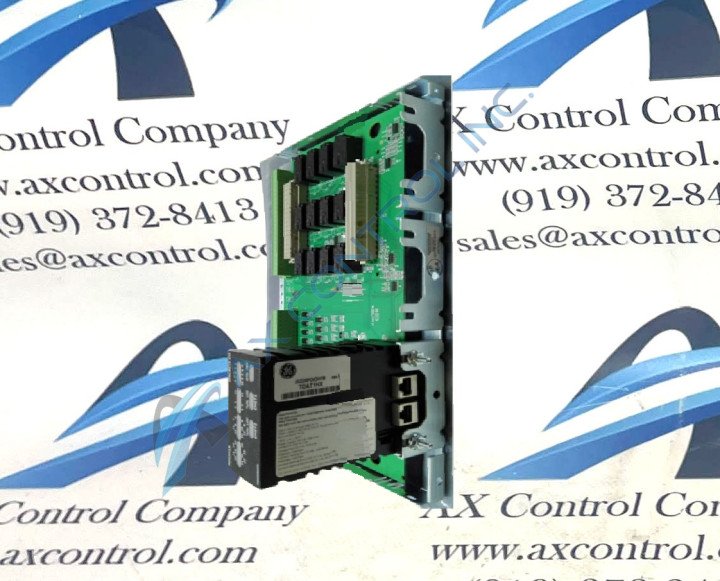

The IS230TNCIH5C is a Contact Input Module from the Mark VIe Series. This module was manufactured by GE Energy and is comprised of a TBCI terminal board and three PDIA I/O packs. The IS230TNCIH5C can be used in Triple Modular Redundant applications, which means three I/O packs are needed.

IS230TNCIH5C Specifications

The PDIA packs are plugged into the IS230TNCIH5C using the DC-37 pin connectors. These connectors are located on the terminal board. The connectors are labelled as:

JT1
JS1
JR1

The IS230TNCIH5C has 24 dry contact inputs that are wired into the two terminal blocks the module has. The IS230TNCIH5C uses 24 V dc from an external power source that is plugged into the JE1 or JE2 connectors on the terminal board.
